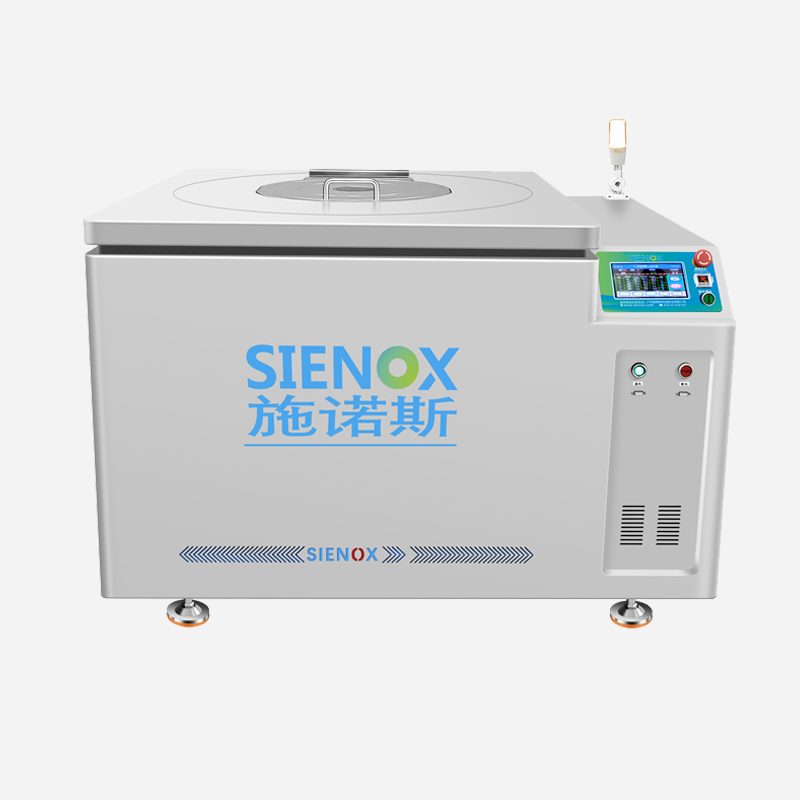

Temperature‑controlled Vacuum Mixer‑Defoamer SIE‑MIX20LWK
20L Large‑volume Mass‑production Integrated Mixing‑Defoaming Equipment for High‑viscosity Slurries
20L Extra‑large Dual‑cup + Ambient‑Heating‑Cooling Temperature Control + ‑98kPa Vacuum for Deep Defoaming
SIENOX SIE‑MIX20LWK is a temperature‑controlled vacuum mixer‑defoamer built for heavy‑duty mass‑production of temperature‑sensitive materials. As the flagship 20L dual‑cup model, it meets high‑volume continuous‑processing demands. It regulates material temperature, handles high‑viscosity materials with 0‑600rpm low‑speed heavy‑load operation, and integrates ‑98kPa vacuum defoaming with revolution‑rotation dual‑power mixing to finish mixing and defoaming in one step.
✓ CE Certification ✓ FC Certification ✓ ISO9001 Quality System ✓ RoHS Compliance ✓ Customizable Voltage (110V/220V)
Why Must Microbubbles in Materials Be Eliminated?
Micro‑bubbles remaining in large‑batch high‑viscosity materials directly affect product yield and performance stability.
New Energy IndustryBubbles in lithium‑ion battery anode slurry impair coating areal density and battery capacity consistency; bubbles in energy‑storage electrode slurry reduce electrode energy density. Large‑volume mixing generates substantial heat, and temperature‑controlled defoaming stabilizes the slurry temperature window to avoid rheological property changes caused by overheating. | Adhesive IndustryBubbles in industrial structural adhesives trigger fluctuation of bonding strength and cavities on bearing surfaces; bubbles in silicone sealants cause leakage on sealing surfaces. During large‑batch adhesive processing, temperature control manages curing exothermic reactions and prevents excessive temperature from aggravating bubble generation. | New Material IndustryBubbles in functional coating liquid result in coating defects and reduced adhesion; bubbles in ceramic slurry bring about pores and unstable densification after sintering. New materials feature narrow process‑parameter windows, and temperature‑controlled defoaming precisely regulates material temperature to guarantee batch‑to‑batch performance consistency. |
✨ Traditional defoaming challenges: Manual mixing is nearly infeasible for large‑batch high‑viscosity materials. Multiple‑batch processing with small‑capacity devices consumes excessive time for material replacement and cleaning. Static defoaming delivers limited effects on high‑viscosity materials. Conventional equipment lacks temperature control, and simple heating tends to degrade temperature‑sensitive materials. This solution adopts centrifugal mixing plus ‑98 kPa vacuum and precise temperature control, processing 20 L per cycle to complete mixing, temperature regulation and defoaming in one step.
Why Choose SIE‑MIX20LWK
Three Core Advantages Cover Full‑process Demands of Temperature‑controlled Vacuum Defoaming
20L Extra‑large Dual‑stationStandard dual‑bucket 20L single‑cycle loading. Heavy‑duty transmission handles ultra‑high‑viscosity materials, expandable to 50L large capacity for full‑day continuous factory mass production. | Stable Long‑term Operation with Vacuum, Temperature Control & Heavy‑load CapacityStandard ‑98kPa vacuum system. Centrifugal force removes large bubbles while vacuum negative pressure eliminates deep‑seated micro‑bubbles within high‑viscosity materials. Synchronized vacuum and temperature control: heating reduces viscosity to accelerate bubble discharge; vacuum compensates low‑temperature defoaming efficiency during cooling. The 950kg heavy‑duty chassis delivers stable and reliable long‑time operation with low speed and high torque. | Full‑process Temperature Control & MES IntegrationDual‑mode temperature control reduces viscosity by heating and suppresses thermal degradation by cooling. Optional fixed/adjustable revolution‑rotation speed ratios adapt to diverse material processes. Optional MES integration enables full‑process data traceability. Microcomputer control supports storage of 100 groups of formulas, and built‑in multi‑safety protections suit multi‑shift production. |
✨ MIX20LWK, the flagship high-capacity model, is ideal for high-volume temperature-controlled mass production of temperature-sensitive materials including new energy, semiconductor, adhesive and advanced new energy materials.
Working Principle
SIE‑MIX20LWK adopts a synergistic process of planetary revolution, container rotation, sealed vacuum defoaming and temperature control to complete mixing, temperature regulation and defoaming in one step.
Planetary Revolution The main‑plate revolves around the main shaft to generate centrifugal force, spreading large‑volume materials toward the container wall, breaking powder agglomerates and mitigating high‑viscosity material stratification. The temperature‑control system runs simultaneously to maintain target temperature. Container Rotation Reverse rotation of material cups creates 360° fluid turbulence for full‑range homogeneous mixing. No stirring paddles contact materials to avoid contamination. Low‑speed high‑torque output adapts to large‑batch high‑viscosity materials. Sealed Vacuum Defoaming Precisely Adjust Material Status via Temperature Control Temperature control runs throughout mixing and defoaming: heating reduces viscosity for better fluidity and faster bubble release; cooling suppresses thermal degradation and manages exothermic reactions. Temperature control works synchronously with mixing‑defoaming without separate thermal‑regulation procedures. The synergy of planetary revolution, container rotation, sealed vacuum defoaming and dual‑mode temperature control completes the full workflow of mixing → dispersion → vacuum defoaming → temperature regulation in one step. |  |
Technical Specifications
Complete Technical Specifications Overview, Customizable on Demand
| Equipment Model | SIE‑MIX20LWK |
| Mixing Capacity | 0‑15L (Standard Vessel) * Customizable |
| Vessel Type | Test tube / Can / Cup; adapters for syringes & cartridges available |
| Vessel Quantity | 1 or 2 cans (User‑selectable) |
| Max Speed | 0‑600 RPM (Stepless adjustable) |
| Temperature‑control Mode | Heating / Cooling |
| Vacuum Degree | Standard: ‑98 kPa / Optional: ‑100 kPa |
| Control System | Touch screen, stores 100 sets of recipe parameters |
| Power Supply | 220V, 50/60Hz (110V US‑JP standard customizable) |
| Overall Dimension(W×D×H) | 1735 × 1560 × 965 mm |
| Net Weight | 830kg |
| Certifications | CE, FC, ISO9001, RoHS Compliance |
Our Partners
Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide
FAQ - Frequently Asked Questions
Answers to common questions about product performance and everyday process selection
-
脱泡机的作用是什么？
脱泡机是一种用于去除液体中的气泡的设备。它的作用在于帮助生产过程中的液体混合、反应、涂布、印刷、灌注等工艺环节，避免气泡的产生和对最终产品的影响。在许多工业和实验室环境中，去除气泡是非常必要的，因为气泡可能会对产品质量产生负面影响，如影响表面张力和稳定性等问题。脱泡机通常采用各种不同的技术，如振动、超声波、离心等，以实现有效的气泡去除。它的应用领域广泛，包括但不限于半导体、太阳能、光学、生物技术、材料科学等。
-
售后服务怎么样？
公司拥有专业的售后服务人员，24小时专人服务，一对一提供技术支持，解决您的后顾之忧。
-
为什么要选择施诺斯？
选择施诺斯的原因有很多，以下是一些主要的原因：
1. 专业性：我们的团队由一群专业的人士组成，他们在各自的领域拥有丰富的经验和知识。我们不仅了解行业趋势和最佳实践，而且还能提供切实可行的解决方案。
2. 服务质量：我们注重客户的需求和满意度，始终致力于提供高质量的服务。我们不仅快速响应客户需求，而且还能根据客户的要求进行定制化服务。
3. 可靠性：我们以诚信和专业精神为宗旨，始终遵守承诺和协议。我们的工作方法和交付成果均符合行业标准和最佳实践，使得我们的客户能够信任我们。
4. 创新性：我们不断探索新的方法和工具，以提供更好的服务并满足客户的需求。我们鼓励创新和实验，并愿意接受挑战和改变。
5. 成本效益：我们提供高性价比的服务，不仅能够帮助客户节省成本，而且还能提高效率和生产力。我们始终以客户的利益为出发点，为客户提供最优的解决方案。
6. 团队合作：我们相信团队的力量和合作的价值，我们的团队成员之间互相支持、协作和尊重。我们与客户、合作伙伴和其他利益相关者建立紧密的合作关系，以实现共同的目标。
以上只是选择我们的部分原因，我们相信还有很多其他的优点和价值可以为客户提供。如果您正在寻找一家专业、可靠、高质量的服务提供商，我们非常期待与您的合作。
-
搅拌脱泡机的工作原理？
施诺斯搅拌脱泡机通过公转的离心力进行脱泡，通过公转与自转形成的剪切力进行搅拌，
再辅助以真空泵抽取气体以达到真空状态，去除纳米级微小气泡。 不接触物料，无二次污染，无二次浪费。
-
施诺斯能提供工程咨询技术服务吗？
施诺斯能为广大客户提供全面的工程和现代化的咨询服务。施诺斯近二十年的搅拌经验，可以为你提供高效的咨询服务。
想要让搅拌机性能更上一层楼，提升系统的整体效能？我们有全面的咨询、工程以及现代化改造服务，为您量身打造解决方案。 在如今竞争激烈的全球化浪潮中，唯有不断创新、持续优化，才能始终跑在对手前面。您的生产工艺和产品日新月异，我们就为您提供最适配的混合技术。不管是新的产品参数，还是既有的工艺条件，我们都能对现有系统和搅拌设备进行全方位的检查与评估，挖掘其中潜藏的流程优化空间和机械性能提升潜力，并且帮您把这些改进切实落地。 要是您的搅拌设备已经跟不上时代步伐，能耗居高不下，或是维护成本让您头疼不已，那就别犹豫，我们的咨询、工程设计和现代化改造服务，就是为您排忧解难的良方。欢迎随时联系我们，携手开启高效生产新征程！
Technical Specification List
Compare Models in the Same Series for Accurate Selection
| Equipment Model | SIE‑MIX5000WK | SIE‑MIX15LWK | SIE‑MIX20LWK |
| Mixing Capacity | 0‑5000 mL (Standard Vessel) * Customizable | 0‑15L (Standard Vessel) * Customizable | 0‑20L (Standard Vessel) * Customizable |
| Vessel Type | Test tube / Can / Cup; adapters for syringes & cartridges available | Test tube / Can / Cup; adapters for syringes & cartridges available | Test tube / Can / Cup; adapters for syringes & cartridges available |
| Vessel Quantity | 1 or 2 cans (User‑selectable) | 1 or 2 cans (User‑selectable) | 1 or 2 cans (User‑selectable) |
| Max Speed | 0‑1200 RPM (Stepless adjustable) | 0‑800 RPM (Stepless adjustable) | 0‑600 RPM (Stepless adjustable) |
| Temperature‑control Mode | Heating / Cooling | Heating / Cooling | Heating / Cooling |
| Vacuum Degree | Standard: ‑98 kPa / Optional: ‑100 kPa | Standard: ‑98 kPa / Optional: ‑100 kPa | Standard: ‑98 kPa / Optional: ‑100 kPa |
| Control System | Touch screen, stores 100 sets of recipe parameters | Touch screen, stores 100 sets of recipe parameters | Touch screen, stores 100 sets of recipe parameters |
| Power Supply | 220V, 50/60Hz (110V US‑JP standard customizable) | 220V, 50/60Hz (110V US‑JP standard customizable) | 220V, 50/60Hz (110V US‑JP standard customizable) |
| Overall Dimension(W×D×H) | 1370 ×1130 × 965mm | 1735 × 1560 × 965 mm | 1870 × 1380 × 1160 mm |
| Net Weight | 550kg | 830 kg | 900 kg |
| Certifications | CE, FC | CE, FC | CE, FC |
*** Above are typical models only. Customized solutions available upon customer requirements.
Multi‑Industry Solutions
Provide customized solutions to meet comprehensive demands from cutting‑edge R&D to large‑scale mass production
Battery IndustryLithium‑ion battery cathode slurry, lithium‑ion battery anode slurry, solid‑electrolyte slurry, battery‑separator coating liquid, battery conductive slurry |
Energy IndustryFuel‑cell catalytic‑layer slurry, proton‑exchange‑membrane slurry, energy‑storage electrode slurry, supercapacitor slurry, electrolyte additives |
Adhesive & Sealant IndustryIndustrial structural adhesives, epoxy sealants, polysulfide sealants, silicone structural adhesives, hot‑melt adhesive slurries |
Chemical IndustryChemical slurries, resin intermediates, catalyst slurries, functional coating liquids, reactive adhesives |
Electronics IndustryElectronic encapsulation adhesives, conductive silver paste, insulating black glue, LED phosphor powder, semiconductor encapsulation materials |
Medical Device IndustryMedical catheter adhesives, medical‑sensor encapsulation adhesives, dental resins, medical transparent gels, sterile bonding adhesives |
Comprehensive Equipment Operation Demo Videos
Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.

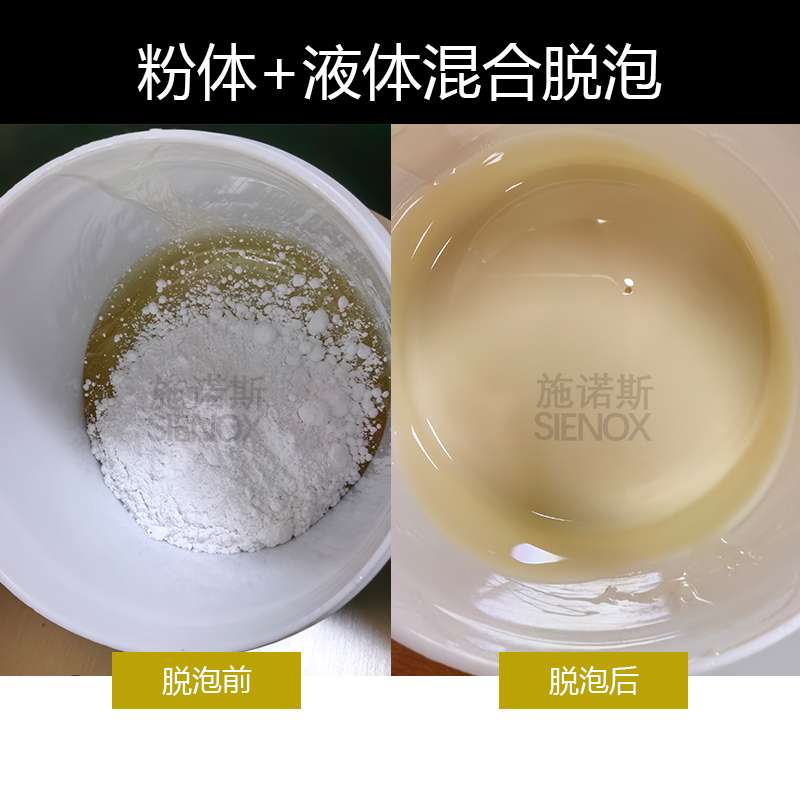

Measured Defoaming‑Process Performance
Thoroughly eliminate material bubbles, voids and stratification

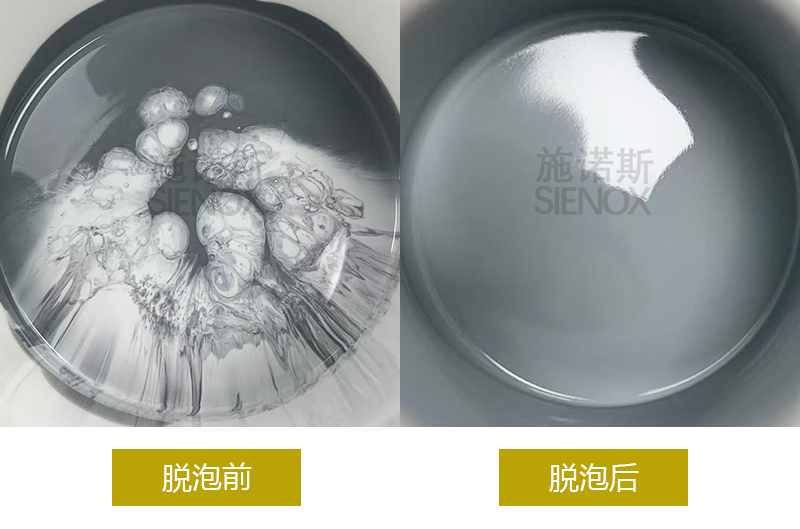

AB Adhesive |

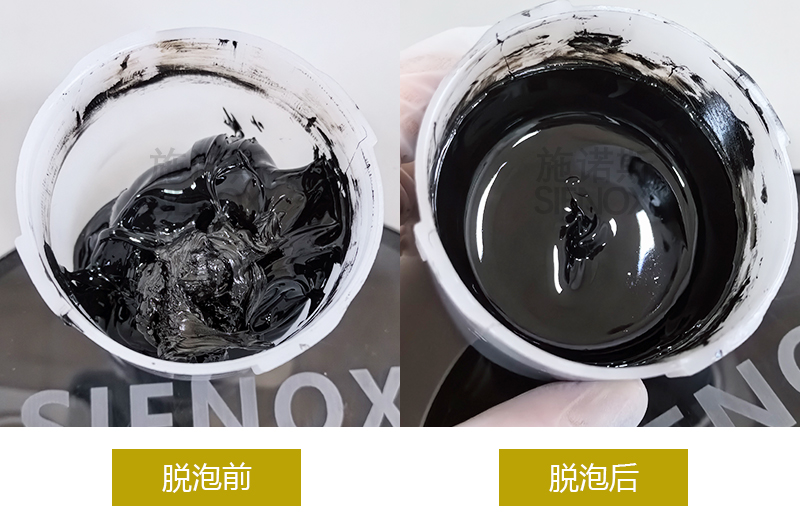

Potting Adhesive |

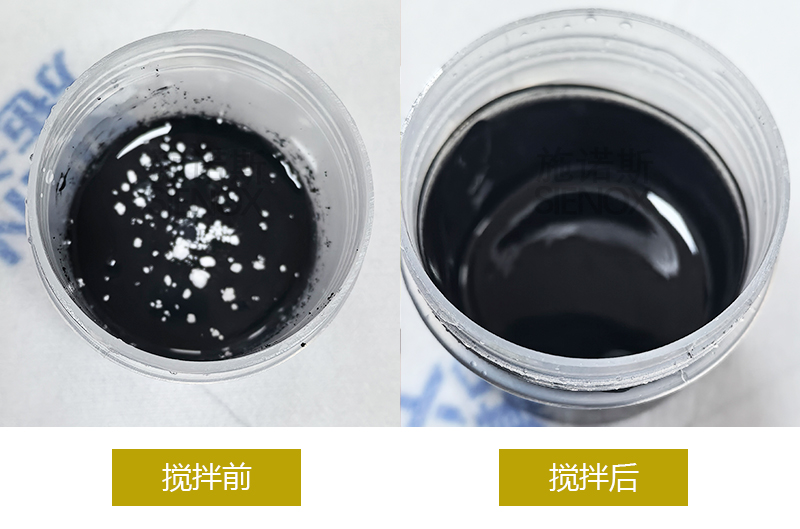

Electronic Slurry & Adhesive |

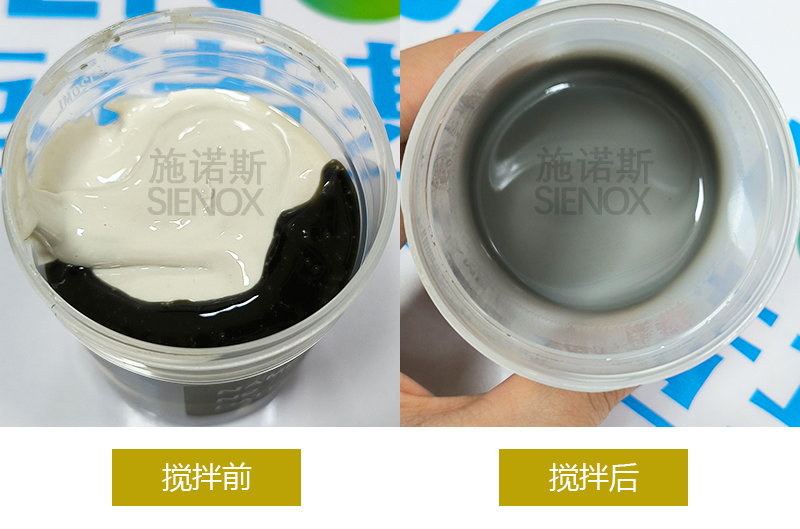

Structural Adhesive |

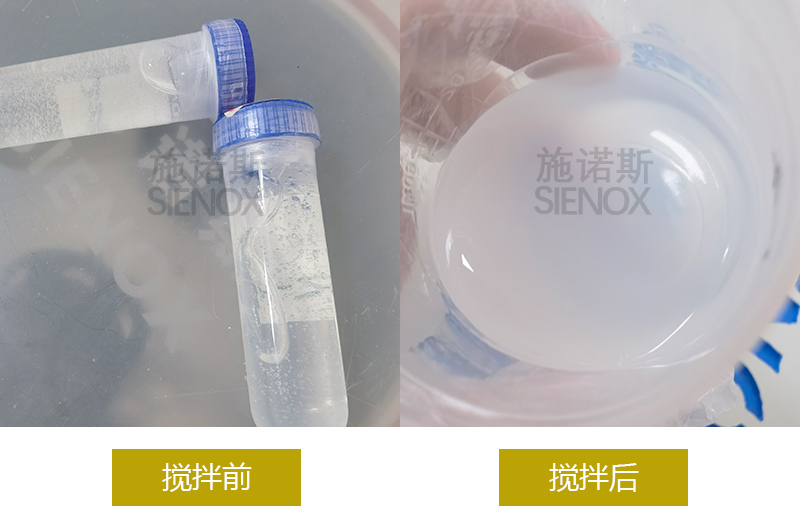

Gel |

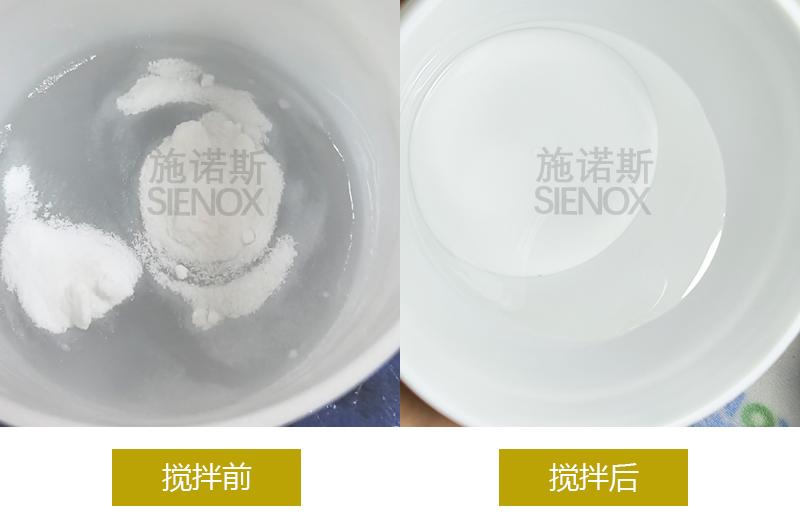

Biological Gel |
Measured Data Comparison
Quantifiable Effects Validated by Test Data
| Material Type | Pre‑treatment Status | After MIX20LWK Treatment |
| Lithium‑ion Battery Anode Slurry | Abundant internal bubbles, ±15% deviation in coating areal density, severe battery capacity fluctuation | Bubbles removed, ±3% coating areal density deviation, improved capacity consistency |
| Semiconductor Underfill Adhesive | Dense internal bubbles, approx. 8% chip stress concentration rate, unstable reliability | Bubbles removed, stress concentration rate below 1%, stable reliability |
| Polyurethane Structural Adhesive | Dense internal bubbles, ±25% bonding‑strength deviation, cavities on bearing surfaces | Bubbles removed, ±5% bonding‑strength deviation, continuous bearing surfaces |
* Internal lab test data. Actual improvement varies with material formulation. Contact sales for real‑world customer cases.
