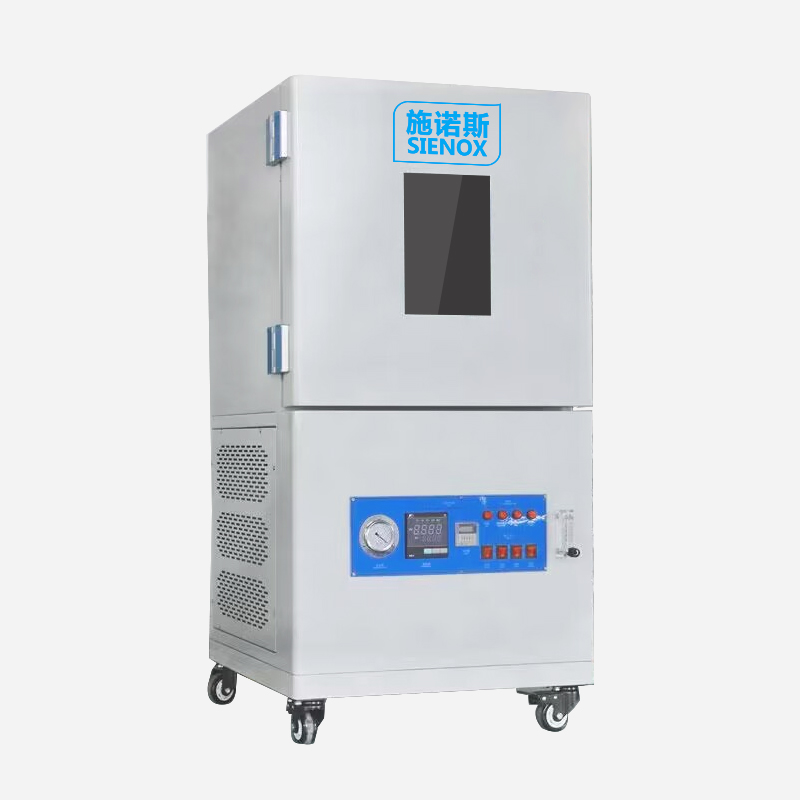

Vacuum Defoamer SIE‑ZK600
Large‑Chamber Dual‑Layer Parallel · Uninterrupted On‑Line Operation
216L large‑chamber dual‑layer parallel defoaming + Independent over‑temperature protection with automatic power‑off

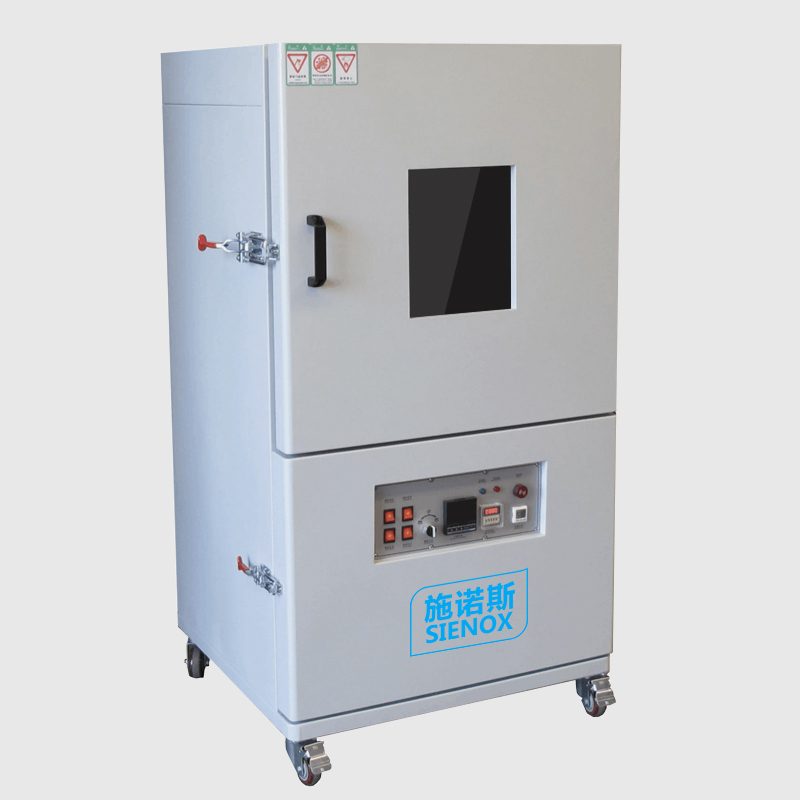

SIENOX SIE‑ZK600 Vacuum Defoamer features a 216L large‑volume chamber of 600×600×600 mm with dual‑layer parallel design equipped with two mesh plates. Independent over‑temperature protector triggers power‑off and alarm upon overheating. 3.0 mm reinforced 304 stainless‑steel inner tank. Multi‑stage PID temperature control ranges from ambient to 300℃ with ±0.5℃ accuracy. Non‑contact vacuum defoaming keeps original chemical properties of materials unchanged.
✓ CE Certification ✓ FC Certification ✓ ISO9001 Quality System ✓ RoHS Compliance ✓ Customizable Voltage (110V/220V)
Why Must Microbubbles in Materials Be Eliminated?
Residual micro‑bubbles degrade end‑product quality directly
Transformer Potting IndustryBubbles inside transformer potting compound trigger partial discharge, insulation breakdown, and even transformer failures or explosions in severe cases. Vacuum defoaming enables full bubble escape under negative pressure, while heating reduces compound viscosity for faster defoaming. The 216L large‑chamber with dual‑layer mesh plates doubles throughput for mass‑batch transformer potting processing. | LED Lighting IndustryBubbles within LED module and driver power potting compound reduce light transmittance and heat dissipation. High‑volume production lines demand non‑stop operation without idle waiting. The 216L dual‑layer parallel structure doubles defoaming capacity. Independent over‑temperature protector ensures unattended‑run safety for continuous mass‑production LED potting processing. | Silicone Rubber IndustryBubbles in silicone sealing parts and thermal‑conductive silicone cause seal failure and uneven heat dissipation. Continuous defoaming is required for batch consistency during mass‑production. Automatic constant‑pressure vacuum cycles maintain stable chamber pressure. The 3.0 mm thick 304 stainless‑steel inner tank resists deformation under long‑term vacuum, suitable for extended‑run silicone rubber defoaming on production lines. |
✨ Pain points of conventional solutions: Mass‑production lines require continuous operation. Ordinary equipment delivers poor pressure retention, frequent vacuum‑pump start‑stop creates loud noise and shortens pump service life. Large‑chamber units suffer uneven temperature, resulting in inconsistent defoaming results across products. Without independent over‑temperature protection, temperature runaway may damage products and equipment, bringing severe safety risks for production lines.
Why Choose SIE‑ZK600
Solve throughput & safety pain points for mass‑production lines
Large‑Chamber Dual‑Layer Parallel Design600×600×600 mm chamber with 216L volume, internally divided into two layers fitted with two mesh plates. Dual‑layer simultaneous defoaming doubles throughput. During continuous line operation, materials can be loaded/unloaded on the lower layer while the upper layer runs defoaming to cut waiting time. Capacity rises nearly double from 125L to 216L, enabling seamless transition from medium‑batch to mass‑batch production. | Independent Over‑Temperature ProtectionEquipped with separate over‑temperature protector independent from the main temperature‑control system. Once temperature runaway exceeds the preset threshold, heating power is cut off automatically with alarm alerts to safeguard products and equipment. It ensures safety for unattended production without interfering with normal operation of the main temperature‑control system. | Robust Structure for Long Service LifeReinforced inner chamber resists deformation and denting under long‑term vacuum. 1.2 mm‑thick Q235 cold‑rolled steel shell with powder‑coated surface for corrosion‑proof and scratch‑resistant performance. High‑temperature‑resistant fiberglass rock‑wool insulation delivers excellent thermal insulation so the outer shell stays cool. Brake‑equipped casters at machine bottom facilitate movement and positioning. |
✨ If your production line requires continuous high‑volume defoaming with high demands on equipment safety and durability, ZK600’s dual‑layer parallel function and independent over‑temperature protection enable reliable line operation.
Working Principle
Bubbles expand and burst under negative pressure for gas escape to improve material compactness.
Step 1: Vacuumize to build negative pressure Step 2: Heating‑assisted defoaming Step 3: Non‑contact purity preservation Three simple steps: Vacuumizing → Heating Assistance → Non‑contact Purity Preservation to improve material compactness. |  |
Technical Specifications
Complete Technical Specifications Overview, Customizable on Demand
| Model | SIE‑ZK600 |
| Chamber Size | 600×600×600mm* Larger volume customizable |
| Effective Volume | 216L |
| Cabinet Structure | Integrated unit with built‑in vacuum pump |
| Internal Compartments | 2 layers, supplied with 2 mesh plates |
| Heating Mode | Thermal radiation heating, left / right / bottom‑side heating |
| Vacuum Range | 0.0~‑100.0KPa |
| Safety Protection | Over‑temperature protection, overload protection, earth‑ground protection |
| Power Supply | 380V/220V, 50/60Hz |
| Overall Dimension(W×D×H) | Approx.1000×980×1830mm (with casters, subject to actual product) |
| Net Weight | Approx.30 kg |
| Certifications | CE, FC, ISO9001, RoHS Compliance |
Our Partners
Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide
FAQ - Frequently Asked Questions
Answers to common questions about product performance and everyday process selection
-
脱泡机的作用是什么？
脱泡机是一种用于去除液体中的气泡的设备。它的作用在于帮助生产过程中的液体混合、反应、涂布、印刷、灌注等工艺环节，避免气泡的产生和对最终产品的影响。在许多工业和实验室环境中，去除气泡是非常必要的，因为气泡可能会对产品质量产生负面影响，如影响表面张力和稳定性等问题。脱泡机通常采用各种不同的技术，如振动、超声波、离心等，以实现有效的气泡去除。它的应用领域广泛，包括但不限于半导体、太阳能、光学、生物技术、材料科学等。
-
售后服务怎么样？
公司拥有专业的售后服务人员，24小时专人服务，一对一提供技术支持，解决您的后顾之忧。
-
为什么要选择施诺斯？
选择施诺斯的原因有很多，以下是一些主要的原因：
1. 专业性：我们的团队由一群专业的人士组成，他们在各自的领域拥有丰富的经验和知识。我们不仅了解行业趋势和最佳实践，而且还能提供切实可行的解决方案。
2. 服务质量：我们注重客户的需求和满意度，始终致力于提供高质量的服务。我们不仅快速响应客户需求，而且还能根据客户的要求进行定制化服务。
3. 可靠性：我们以诚信和专业精神为宗旨，始终遵守承诺和协议。我们的工作方法和交付成果均符合行业标准和最佳实践，使得我们的客户能够信任我们。
4. 创新性：我们不断探索新的方法和工具，以提供更好的服务并满足客户的需求。我们鼓励创新和实验，并愿意接受挑战和改变。
5. 成本效益：我们提供高性价比的服务，不仅能够帮助客户节省成本，而且还能提高效率和生产力。我们始终以客户的利益为出发点，为客户提供最优的解决方案。
6. 团队合作：我们相信团队的力量和合作的价值，我们的团队成员之间互相支持、协作和尊重。我们与客户、合作伙伴和其他利益相关者建立紧密的合作关系，以实现共同的目标。
以上只是选择我们的部分原因，我们相信还有很多其他的优点和价值可以为客户提供。如果您正在寻找一家专业、可靠、高质量的服务提供商，我们非常期待与您的合作。
-
搅拌脱泡机的工作原理？
施诺斯搅拌脱泡机通过公转的离心力进行脱泡，通过公转与自转形成的剪切力进行搅拌，
再辅助以真空泵抽取气体以达到真空状态，去除纳米级微小气泡。 不接触物料，无二次污染，无二次浪费。
-
施诺斯能提供工程咨询技术服务吗？
施诺斯能为广大客户提供全面的工程和现代化的咨询服务。施诺斯近二十年的搅拌经验，可以为你提供高效的咨询服务。
想要让搅拌机性能更上一层楼，提升系统的整体效能？我们有全面的咨询、工程以及现代化改造服务，为您量身打造解决方案。 在如今竞争激烈的全球化浪潮中，唯有不断创新、持续优化，才能始终跑在对手前面。您的生产工艺和产品日新月异，我们就为您提供最适配的混合技术。不管是新的产品参数，还是既有的工艺条件，我们都能对现有系统和搅拌设备进行全方位的检查与评估，挖掘其中潜藏的流程优化空间和机械性能提升潜力，并且帮您把这些改进切实落地。 要是您的搅拌设备已经跟不上时代步伐，能耗居高不下，或是维护成本让您头疼不已，那就别犹豫，我们的咨询、工程设计和现代化改造服务，就是为您排忧解难的良方。欢迎随时联系我们，携手开启高效生产新征程！
Technical Specification List
Parameter Comparison for Accurate Model Selection
| Model | SIE‑ZK400 | SIE‑ZK500 | SIE‑ZK600 |
| Chamber Size | 400×400×450mm | 500×500×500mm | 600×600×600mm |
| Effective Volume | 72L | 125L | 216L |
| Temperature Range | Ambient+30~300℃ | Ambient+30~300℃ | Ambient+30~300℃ |
| Vacuum Degree | 0~‑100kPa | 0~‑100kPa | 0~‑100kPa |
| Safety Protection | Over‑temperature protection, overload protection, earth‑ground protection | Over‑temperature protection, overload protection, earth‑ground protection | Over‑temperature protection, overload protection, earth‑ground protection |
| Power Supply | 380V/220V, 50/60Hz | 380V/220V, 50/60Hz | 380V/220V, 50/60Hz |
| Overall Dimension(W×D×H) | 510 × 430 × 500 mm | 610 × 560 × 780 mm | 1000×980×1830mm |
| Net Weight | 95 kg | 153 kg | 153 kg |
| Certifications | CE, FC | CE, FC | CE, FC |
*** Above are typical models only. SIENOX provides customized solutions per customer requirements. For model selection: 189‑2512‑9293
Multi‑Industry Solutions
Vacuum defoaming applications covering typical materials across six major industries
LED LightingLED strip potting compound, LED bead encapsulation resin |
Plastic ToysToy potting compound, coating materials |
Silicone RubberLiquid silicone, silicone rubber sealing parts |
Transformer PottingEpoxy potting compound, insulating adhesive |  Resin CraftsCraft resin, AB adhesive |
AB AdhesiveStructural AB adhesive, electronic AB adhesive |
Comprehensive Equipment Operation Demo Videos
Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.
Actual‑test Performance Demonstration
Lab Sample Actual Test Results
Silicone Rubber |
Adhesive |
Silver Paste |
Medical Gel |
UV Adhesive |
Battery Slurry |
Measured Data Comparison
Material Defoaming Effect Comparison (Before & After)
| Material Type | Pre‑treatment Status | Post‑treatment by ZK600 |
| Transformer Potting Compound | Dense internal bubbles causing voids after curing and high partial‑discharge risk | Dense compound without voids for stable insulation performance |
| LED Module Potting Compound | Abundant bubbles lead to uneven light transmission and dark spots after curing | Clear and transparent compound with uniform light transmittance |
| Thermal‑conductive Silicone | Numerous bubbles raise thermal resistance at heat‑dissipation interface | Uniform and dense silicone with low thermal‑interface resistance |
* Internal lab test data. Actual improvement varies with material formula. Contact sales for real‑world customer cases.
You May Also Need....

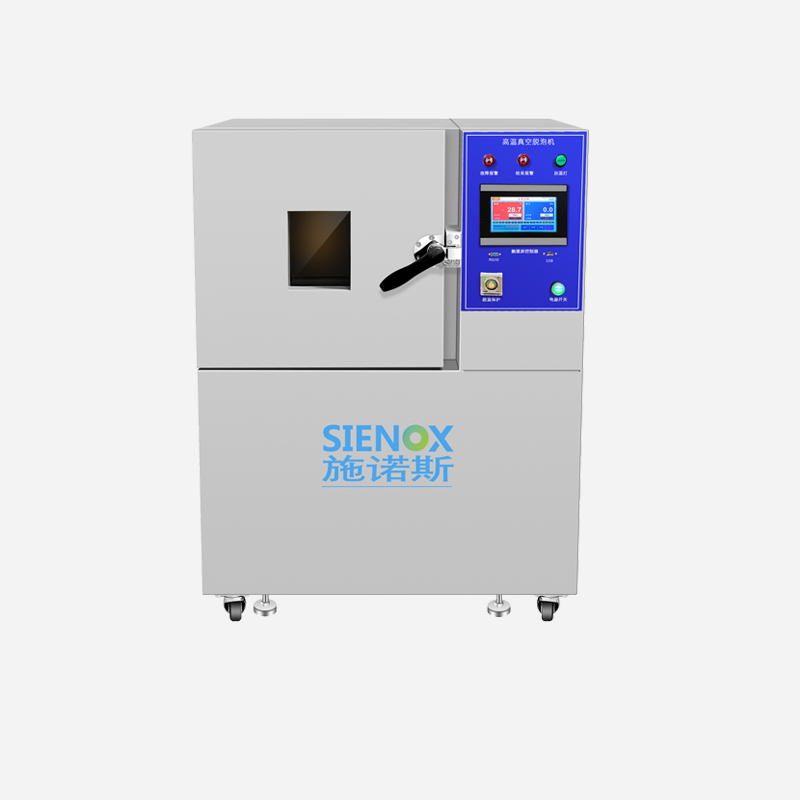

Vacuum Defoamer SIE‑ZK300
