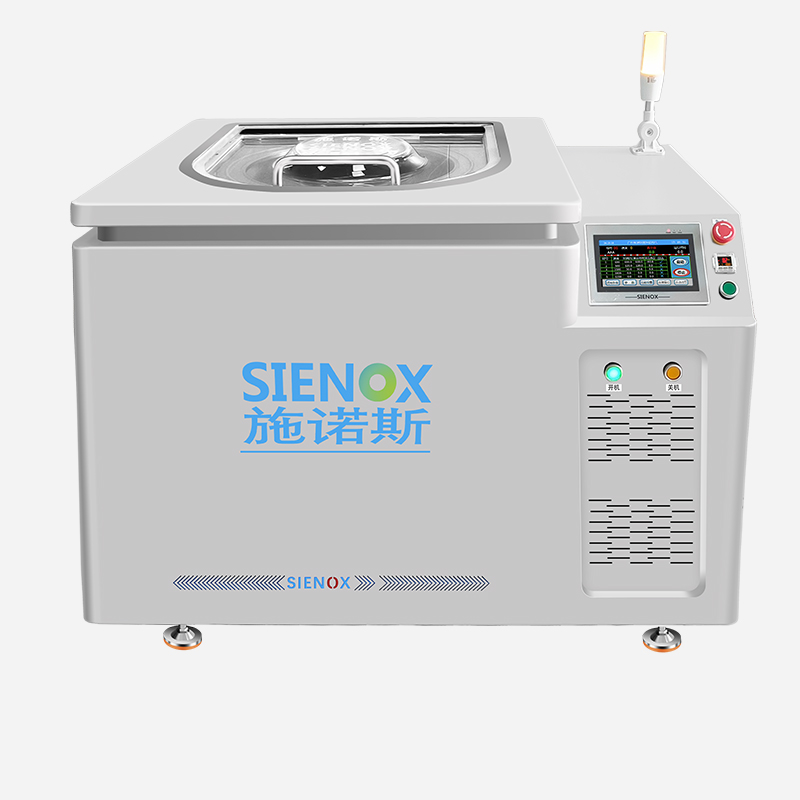

Large‑Capacity Vacuum Defoaming Mixer SIE‑MIX2000
Paddle‑Free Non‑Contact Mixing · For Deep Micro‑Bubble Treatment in Small‑Batch Pilot Tests
Customizable Capacity 0‑50L | Homogenizing & Defoaming Equipment for Medium‑to‑Large Production Lines
The SIE‑MIX2000 planetary vacuum defoaming mixer meets mixing and defoaming requirements from 0‑2000 mL. Dual‑drive mixing of revolution and rotation combined with ‑98 kPa negative vacuum environment achieves consistent density, uniform dispersion and deep degassing for multi‑material blends. It is suitable for small‑batch pilot vacuum defoaming of new‑energy lithium‑battery materials, photovoltaic conductive silver paste, medical polymer gels and other materials. Customization is available.
✓ CE Certified ✓ FCC Certified ✓ ISO9001 Quality System ✓ RoHS Compliant ✓ Custom Voltage Available (110V/220V)
Why Must Microbubbles in Materials Be Eliminated?
Residual nanoscale micro‑bubbles within materials directly affect product yield and performance stability.
Polymer Composite Material IndustryMicro‑bubbles trapped inside polymer raw materials such as epoxy resin and silicone will form voids and micro‑cracks after curing, reducing the tensile strength and sealing performance of finished parts. Bubbles degrade light transmittance and surface uniformity, raise defective rates for injection‑molded / cast products and increase raw‑material waste costs. | Cosmetic Paste IndustryBubbles inside makeup and skincare pastes cause uneven spreading and patchy color appearance. Compressed bubbles during filling lead to filling‑volume deviation, which jeopardizes metering compliance. Internal voids accelerate raw‑material oxidation and shorten the shelf‑life of finished products. | Ceramic Conductive Slurry IndustryBubbles trapped in ceramic slurries result in pinholes and porosity defects on sintered bodies, causing fluctuations in conductive and insulating performance. Bubbles bring inconsistent coating thickness and scattered resistance parameters of components, making it difficult to unify parameter control for mass‑produced products. |
✨ Challenges of conventional defoaming: Ordinary planetary mixer‑defoamers rely on centrifugal force to remove bubbles, with limited performance on nanoscale micro‑bubbles trapped in high‑viscosity materials. Static defoaming is time‑consuming and incomplete. Vacuum mixing‑defoaming applies ‑98 kPa negative‑pressure vacuum during planetary agitation, lowering the pressure difference inside and outside bubbles to enable micro‑bubbles to expand and escape. It delivers deep‑layer defoaming results unachievable by conventional mixing methods.
Why Choose SIE‑MIX2000
Engineered for Vacuum Defoaming in Small‑Batch Production
Customizable Capacity Upon RequestStandard 2L dual‑station base model, capacity adjustable within 0‑30L range. Compatible with large‑volume single‑bucket materials and multi‑batch continuous mass‑production conditions. Supports large‑size mixing vessels and custom tooling fixtures, covering requirements for small‑batch pilot tests and scaled‑up production lines. Suitable for multi‑viscosity pastes and liquid raw materials. | Coordinated Revolution & RotationDual‑driven planetary structure. Revolution generates centrifugal force to spread materials, while vessel rotation creates 360° fluid shear to reduce powder agglomeration and colloid delamination. Speed range adapts to adhesives, silver pastes, ceramic materials and other substances for broader mixing coverage and less local inhomogeneity. | Intelligent Industrial ControlEquipped with large‑size touch‑screen for storing multi‑segment running recipes. Optional MES industrial data interface to fully record full‑process data including speed, vacuum level, temperature control and duration. Built‑in audio‑visual alarm, multi‑safety interlocks and overload power‑off protection for standardized continuous factory production. |
✨ When vacuum defoaming is required and production volume reaches the 2000 mL level, the SIE‑MIX2000 is the small‑batch pilot‑scale option within the planetary vacuum defoaming mixer series.
Working Principle
Adopts synergistic process combining planetary revolution, vessel rotation and closed high‑vacuum environment.
Planetary Revolution: The large plate holding material cups rotates at high‑speed around the main shaft to generate centrifugal force. Materials are spread evenly against vessel walls, which breaks powder agglomeration and mitigates colloid delamination. Vessel Rotation: Material cups perform synchronous counter‑rotation, generating 360° fluid turbulence inside vessels for full‑range homogeneous mixing. No built‑in mixing paddles contact materials, lowering the risk of contamination by metal debris. Closed‑Chamber Vacuum Defoaming: Negative pressure down to ‑98 kPa is pulled inside the sealed chamber. Expanded pressure difference between inside and outside materials makes micro‑ and nanoscale bubbles expand, rise and evacuate from the chamber. Mixing and defoaming are accomplished in one single process. It delivers better mixing uniformity and bubble removal performance than conventional open mixing equipment. |  |
Technical Specifications
Hard‑Core Equipment Performance Indicators & Data Alignment
| Model | SIE‑MIX2000 |
| Mixing Capacity | 0–2000 mL (standard container) * Customizable |
| Container Type | Tubes / Jars / Cups; adapters for syringes and cartridges supported |
| Container Quantity | 1 or 2 jars (user‑selectable) |
| Max Speed | 100 – 2000 RPM (stepless adjustable) |
| Revolution / Rotation Ratio | Fixed planetary ratio |
| Vacuum Degree | Standard: –98 kPa / Optional: –100 kPa |
| Control System | Touch‑screen, stores up to 100 recipe sets |
| Power Supply | 220V, 50/60Hz (110V US/JP standard customizable) |
| Dimension(W×D×H) | 1100 × 780 × 880 mm |
| Net Weight | 225 kg |
| Certifications | CE, FCC, ISO9001, RoHS Compliance |
Our Partners
Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide
FAQ - Frequently Asked Questions
Answers to common questions about product performance and everyday process selection
-
脱泡机的作用是什么？
脱泡机是一种用于去除液体中的气泡的设备。它的作用在于帮助生产过程中的液体混合、反应、涂布、印刷、灌注等工艺环节，避免气泡的产生和对最终产品的影响。在许多工业和实验室环境中，去除气泡是非常必要的，因为气泡可能会对产品质量产生负面影响，如影响表面张力和稳定性等问题。脱泡机通常采用各种不同的技术，如振动、超声波、离心等，以实现有效的气泡去除。它的应用领域广泛，包括但不限于半导体、太阳能、光学、生物技术、材料科学等。
-
售后服务怎么样？
公司拥有专业的售后服务人员，24小时专人服务，一对一提供技术支持，解决您的后顾之忧。
-
为什么要选择施诺斯？
选择施诺斯的原因有很多，以下是一些主要的原因：
1. 专业性：我们的团队由一群专业的人士组成，他们在各自的领域拥有丰富的经验和知识。我们不仅了解行业趋势和最佳实践，而且还能提供切实可行的解决方案。
2. 服务质量：我们注重客户的需求和满意度，始终致力于提供高质量的服务。我们不仅快速响应客户需求，而且还能根据客户的要求进行定制化服务。
3. 可靠性：我们以诚信和专业精神为宗旨，始终遵守承诺和协议。我们的工作方法和交付成果均符合行业标准和最佳实践，使得我们的客户能够信任我们。
4. 创新性：我们不断探索新的方法和工具，以提供更好的服务并满足客户的需求。我们鼓励创新和实验，并愿意接受挑战和改变。
5. 成本效益：我们提供高性价比的服务，不仅能够帮助客户节省成本，而且还能提高效率和生产力。我们始终以客户的利益为出发点，为客户提供最优的解决方案。
6. 团队合作：我们相信团队的力量和合作的价值，我们的团队成员之间互相支持、协作和尊重。我们与客户、合作伙伴和其他利益相关者建立紧密的合作关系，以实现共同的目标。
以上只是选择我们的部分原因，我们相信还有很多其他的优点和价值可以为客户提供。如果您正在寻找一家专业、可靠、高质量的服务提供商，我们非常期待与您的合作。
-
搅拌脱泡机的工作原理？
施诺斯搅拌脱泡机通过公转的离心力进行脱泡，通过公转与自转形成的剪切力进行搅拌，
再辅助以真空泵抽取气体以达到真空状态，去除纳米级微小气泡。 不接触物料，无二次污染，无二次浪费。
-
施诺斯能提供工程咨询技术服务吗？
施诺斯能为广大客户提供全面的工程和现代化的咨询服务。施诺斯近二十年的搅拌经验，可以为你提供高效的咨询服务。
想要让搅拌机性能更上一层楼，提升系统的整体效能？我们有全面的咨询、工程以及现代化改造服务，为您量身打造解决方案。 在如今竞争激烈的全球化浪潮中，唯有不断创新、持续优化，才能始终跑在对手前面。您的生产工艺和产品日新月异，我们就为您提供最适配的混合技术。不管是新的产品参数，还是既有的工艺条件，我们都能对现有系统和搅拌设备进行全方位的检查与评估，挖掘其中潜藏的流程优化空间和机械性能提升潜力，并且帮您把这些改进切实落地。 要是您的搅拌设备已经跟不上时代步伐，能耗居高不下，或是维护成本让您头疼不已，那就别犹豫，我们的咨询、工程设计和现代化改造服务，就是为您排忧解难的良方。欢迎随时联系我们，携手开启高效生产新征程！
Technical Specification List
Full‑Line Standardized Parameters for Accurate Process Evaluation & Model Selection
| Model | SIE‑MIX2000 | SIE‑MIX5000 | SIE‑MIX15L |
| Mixing Capacity | 0–2000 mL (standard container) * Customizable | 0–5000 mL (standard container) * Customizable | 0–15L (standard container) * Customizable |
| Container Type | Tubes / Jars / Cups; adapters for syringes and cartridges supported | Tubes / Jars / Cups; adapters for syringes and cartridges supported | Tubes / Jars / Cups; adapters for syringes and cartridges supported |
| Container Quantity | 1 or 2 jars (user‑selectable) | 1 or 2 jars (user‑selectable) | 1 or 2 jars (user‑selectable) |
| Max Speed | 0 – 2000 RPM (stepless adjustable) | 0 – 1200 RPM (stepless adjustable) | 100 – 600 RPM (stepless adjustable) |
| Revolution / Rotation Ratio | Freely adjustable | Fixed planetary ratio | Fixed planetary ratio |
| Vacuum Degree | Standard: –98 kPa / Optional: –100 kPa | Standard: –98 kPa / Optional: –100 kPa | Standard: –98 kPa / Optional: –100 kPa |
| Control System | Touch‑screen, stores up to 100 recipe sets | Touch‑screen, stores up to 100 recipe sets | Touch‑screen, stores up to 100 recipe sets |
| Power Supply | 220V, 50/60Hz (110V US/JP standard customizable) | 220V, 50/60Hz (110V US/JP standard customizable) | 220V, 50/60Hz (110V US/JP standard customizable) |
| Dimension(W×D×H) | 1100 × 780 × 880 mm | 1370 ×1130 × 965 mm | 1735 × 1560 × 965 mm |
| Net Weight | 225 kg | 550 kg | 830 kg |
| Certifications | CE, FCC | CE, FCC | CE, FCC |
*** Above are typical models only. Customized solutions are available upon customer requirements.
Multi‑Industry Solutions
Customized solutions are available to meet comprehensive requirements ranging from cutting‑edge R&D to mass‑scale production.
Chemical IndustryChemical slurries, resin intermediates, catalyst slurries, reactive adhesives, functional coating liquids |
Adhesive / Sealant IndustryStructural adhesives, industrial sealants, hot‑melt adhesives, epoxy structural adhesives, polyurethane adhesives |
Ink & Coating IndustryIndustrial coatings, conductive inks, color pastes, anti‑corrosion coatings, UV‑curable coatings |
Electronics IndustryElectronic encapsulation adhesives, conductive silver adhesives, insulating adhesives, LED phosphors, semiconductor packaging materials |
Battery IndustryLithium‑ion battery cathode & anode slurries, conductive agents, electrolyte auxiliary materials, fuel‑cell catalyst slurries |
Silicone IndustrySilicone rubber compounds, silicone resins, silicone oils, thermal‑conductive silicone adhesives, silicone coatings |
Comprehensive Equipment Operation Demo Videos
Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.

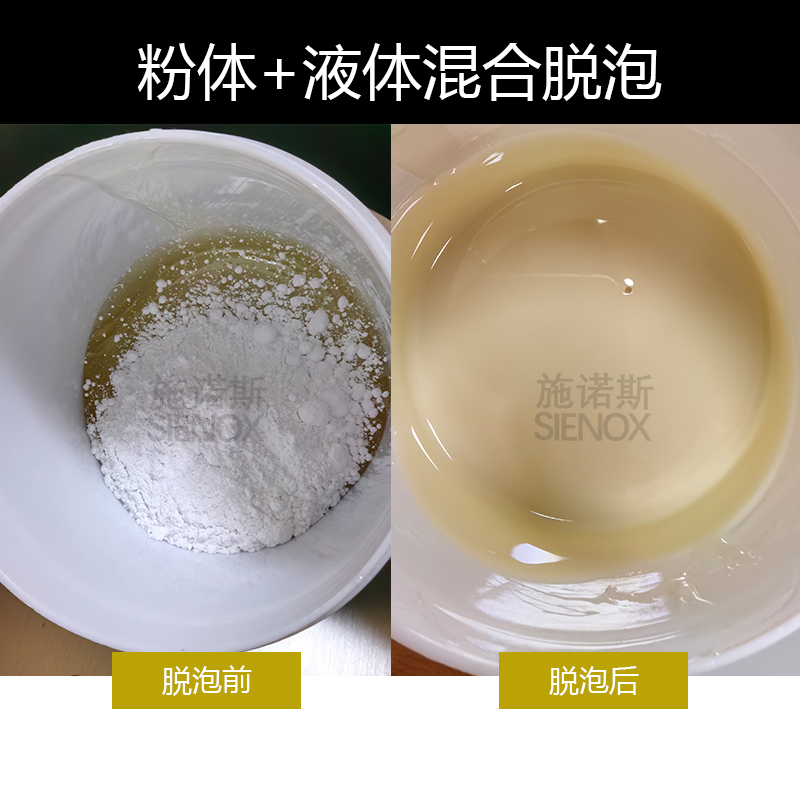

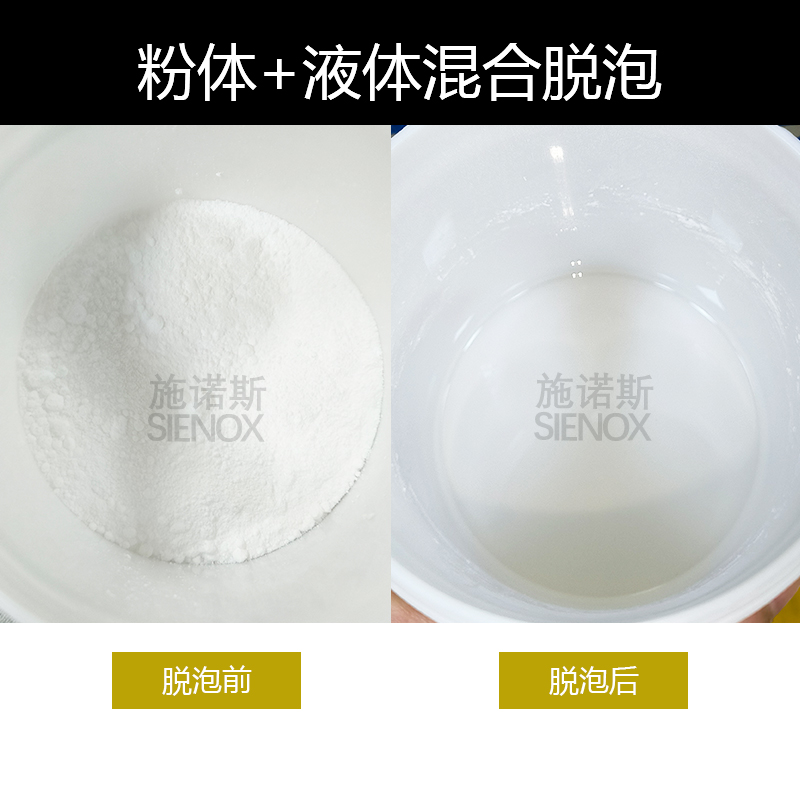

Actual Test Results of Defoaming Process
Eliminate bubble voids and material delamination completely.
Syringe Adhesive |
Photoresist |
Biogel |
Cosmetic Serum |
Lubricant |
Ink |
Measured Data Comparison
Data‑Driven Results · Quantifiable Performance
| Material Type | Condition Before Treatment | After MIX2000 Treatment |
| Epoxy Resin Slurry | Poor mixing, dense internal bubbles, numerous pores after casting and curing, low mechanical strength | Transparent resin free of bubbles, compact castings without voids, smooth flat surface after curing |
| Silicone Rubber Compound | Plenty of bubbles, dense surface pores after vulcanization, uneven elasticity, fluctuating tensile strength | Bubbles eliminated, smooth and dense surface after vulcanization, consistent uniform elasticity |
| Industrial Anti‑Corrosion Coating | Abundant bubbles, dense pinholes on coating film, uneven adhesion, shortened anti‑corrosion service life | Dense and flat coating film, pinholes removed, uniform adhesion, extended anti‑corrosion service life |
* Internal laboratory test data. Actual improvement varies with material formulation. Real customer cases are available upon request from sales.
