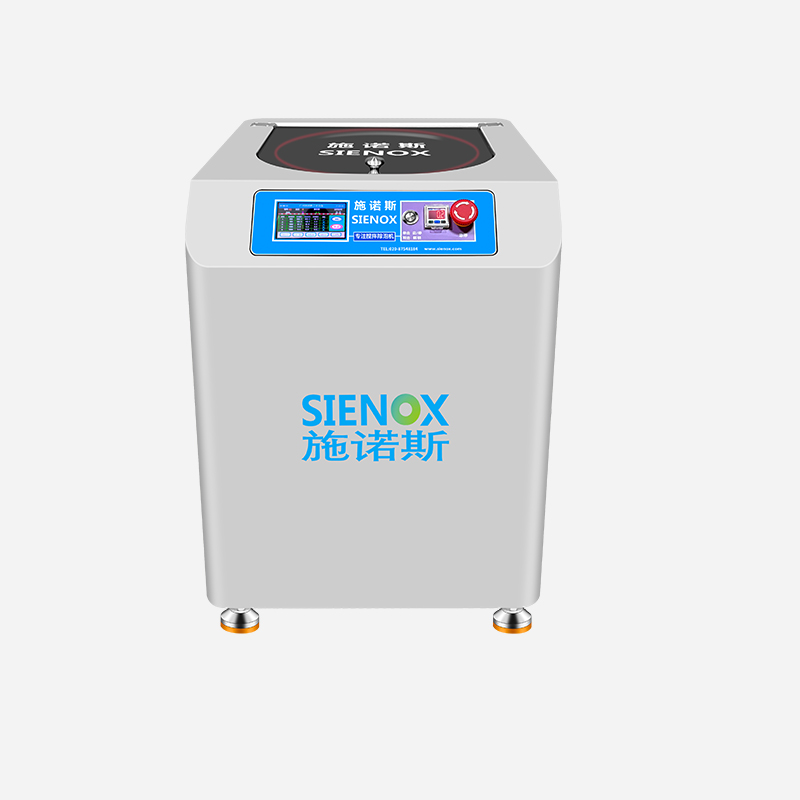

SIENOX Planetary Vacuum Mixer‑Defoamer SIE‑MIX650
Vacuum Mixer‑Defoamer · Nano‑Scale Bubble Removal
500 mL Medium‑Capacity Dual‑Cup + Built‑In Maintenance‑Free Vacuum — 99.9% Nano‑Scale Bubble Removal
The SIE‑MIX650 vacuum mixing‑defoaming unit covers mixing and defoaming requirements from 0‑500 mL. Equipped with a maintenance‑free built‑in vacuum system and dual‑driven planetary revolution‑rotation mixing‑defoaming, it delivers consistent density, homogeneous dispersion and residue‑free defoaming for multi‑material processing. Suitable for epoxy resin, conductive adhesive, electronic paste, adhesives, gels and more. Customization available with one‑stop solutions.
✓ CE Certified ✓ FCC Certified ✓ ISO9001 Quality System ✓ RoHS Compliant ✓ Custom Voltage Support (110V/220V)
Why Must Microbubbles in Materials Be Eliminated?
Residual microbubbles in materials directly affect the yield and performance stability of end‑products.
Electronics IndustryBubbles in potting compounds create cavities and voids after electronic component encapsulation, impairing heat dissipation and insulation reliability. Bubbles in conductive silver paste cause circuit breakpoints and resistance fluctuation, while bubbles in circuit‑board bonding adhesives trigger interface defects and reduce product yield. Medium‑ and high‑viscosity adhesives tend to entrain air during conventional mixing; bubbles escape slowly, undermining the consistency of encapsulation quality. | Medical Device IndustryBubbles in medical adhesives weaken bonding strength and biocompatibility. Bubbles within encapsulants for catheters and sensors lead to seal failure and signal interference, and bubbles in carriers for in‑vitro diagnostic reagents compromise detection accuracy. Medical devices demand high material purity; residual bubbles may cause batch‑to‑batch performance variation and raise quality‑related risks. | Aerospace & Defense IndustryBubbles in composite matrix resins reduce interlaminar shear strength and fatigue resistance. Bubbles in structural adhesives induce stress concentration at bonding interfaces and compromise long‑term reliability, whereas bubbles in radar‑absorbing coatings alter electromagnetic performance parameters. The aerospace sector has low tolerance for internal material defects; residual micro‑bubbles may trigger structural‑part failure under extreme operating conditions. |
✨ Limitations of traditional defoaming methods: Manual or impeller stirring entrains more air bubbles; static defoaming is time‑consuming and ineffective for high‑viscosity materials; conventional vacuum treatment can only remove surface bubbles rather than internal microbubbles. The planetary mixer‑defoamer separates bubbles via centrifugal force while mixing. Combined with vacuum negative pressure for deep defoaming, it finishes mixing and defoaming in one step.
Why Choose MIX650
Three Core Advantages to Cover Full‑Process Requirements of Medium‑Capacity Vacuum Defoaming
Built‑in Maintenance‑Free Vacuum for Clean DefoamingEquipped with a built‑in vacuum unit, the MIX650 requires no regular pump‑oil replacement for maintenance‑free operation with zero environmental pollution, ideal for clean‑room environments. Vacuum level is adjustable from ‑98 kPa to 0 kPa, allowing flexible parameter setup based on material viscosity and bubble characteristics. The integrated design eliminates external vacuum pump piping and extra space occupation. Featuring high integration, the unit starts vacuum defoaming right after power‑on to reduce production‑line change‑over time. | 500 mL Medium‑Capacity with Wide‑Range Speed Control500 mL dual‑cup configuration fits pilot‑scale R&D and continuous production‑line sampling. Synchronized dual‑cup operation improves batch efficiency. Wide‑range speed adjustment from 0‑2000 rpm accommodates low‑, medium‑ and high‑viscosity materials. Low‑speed settings enable gentle mixing and defoaming for high‑viscosity adhesives, while high‑speed modes deliver fast dispersion for low‑viscosity coating liquids. Synchronized dual‑driven revolution‑rotation completes mixing and defoaming in one step within approximately 1 minute. | Flexible Multi‑Segment Program Process ConfigurationThe microcomputer control system supports storage of up to 100 programs. Each program contains multiple segments with independently configurable time and speed for multi‑stage process parameter setup. User permission management and fault‑code display suit shared‑equipment scenarios with multiple operators. Program‑driven operation minimizes manual adjustment errors and guarantees consistent performance across batches. |
✨ The MIX650 integrates three core capabilities: built‑in vacuum for maintenance‑free operation, medium‑capacity dual‑cup design up to 500 mL with wide‑range speed adjustment, and flexible multi‑segment programming. It is suitable for pilot‑scale R&D and production line sampling of materials for electronic packaging, medical device bonding, aerospace composite materials and more.

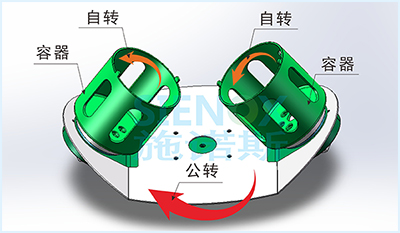

Working Principle
Synchronized operation of dual‑driven revolution and rotation enables one‑step completion of mixing and defoaming.
Step 1: Centrifugal Force Generated by Revolution The revolving plate spins at high speed to generate centrifugal force on materials inside the container, driving full‑volume material convection for macro‑scale mixing. Meanwhile, centrifugal force pushes low‑density bubbles toward the rotation axis to aggregate and escape. Stable revolution speed ensures consistent mixing results for every batch. Step 2: Shear Force Provided by Rotation Containers rotate around their own axis to generate directional shear force, breaking up agglomerated particles to achieve micro‑scale dispersion. The precisely calculated fixed speed ratio between revolution and rotation delivers high‑efficiency full‑volume mixing. Shear force thins bubble membranes and accelerates bubble rupture. With no immersed impeller contacting materials, risks of metal‑chip contamination are reduced and the intrinsic chemical properties of materials are preserved. Step 3: Deep Defoaming under Vacuum Negative Pressure The built‑in vacuum unit evacuates gas inside the container to create a negative‑pressure environment. It lowers pressure difference inside and outside bubbles and enables deep micro‑bubbles to expand and escape. Adjustable vacuum level from ‑98 kPa to 0 kPa fits defoaming requirements for materials of different viscosities. The built‑in vacuum unit runs maintenance‑free with no regular pump‑oil replacement and zero environmental pollution. Synchronized revolution‑rotation combined with vacuum negative pressure completes the full workflow of "Mixing → Dispersion → Vacuum Defoaming" inside sealed containers, supported by maintenance‑free built‑in vacuum performance. |  |
Technical Specifications
Complete Technical Specifications Overview, Customizable on Demand
| Model | SIE‑MIX650 |
| Mixing Capacity | 0–500 mL (standard container) * Larger volume customizable |
| Container Type | Tubes / Jars / Cups; adapters for syringes and cartridges supported |
| Number of Containers | 1 or 2 jars (user‑selectable) |
| Max Speed | 0 – 2000 RPM (stepless adjustable) |
| Revolution / Rotation Ratio | Fixed planetary ratio |
| Vacuum Level | Standard: –98 kPa / Optional: –100 kPa |
| Control System | Touch‑screen, stores up to 100 recipe sets |
| Power Supply | 220V, 50/60Hz (110V US/JP standard customizable) |
| Dimensions (W×D×H) | 580 × 560 × 760 mm |
| Net Weight | 145 kg |
| Certifications | CE, FCC, ISO9001, RoHS Compliant |
Our Partners
Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide
FAQ - Frequently Asked Questions
Answers to common questions about product performance and everyday process selection
-
脱泡机的作用是什么？
脱泡机是一种用于去除液体中的气泡的设备。它的作用在于帮助生产过程中的液体混合、反应、涂布、印刷、灌注等工艺环节，避免气泡的产生和对最终产品的影响。在许多工业和实验室环境中，去除气泡是非常必要的，因为气泡可能会对产品质量产生负面影响，如影响表面张力和稳定性等问题。脱泡机通常采用各种不同的技术，如振动、超声波、离心等，以实现有效的气泡去除。它的应用领域广泛，包括但不限于半导体、太阳能、光学、生物技术、材料科学等。
-
售后服务怎么样？
公司拥有专业的售后服务人员，24小时专人服务，一对一提供技术支持，解决您的后顾之忧。
-
为什么要选择施诺斯？
选择施诺斯的原因有很多，以下是一些主要的原因：
1. 专业性：我们的团队由一群专业的人士组成，他们在各自的领域拥有丰富的经验和知识。我们不仅了解行业趋势和最佳实践，而且还能提供切实可行的解决方案。
2. 服务质量：我们注重客户的需求和满意度，始终致力于提供高质量的服务。我们不仅快速响应客户需求，而且还能根据客户的要求进行定制化服务。
3. 可靠性：我们以诚信和专业精神为宗旨，始终遵守承诺和协议。我们的工作方法和交付成果均符合行业标准和最佳实践，使得我们的客户能够信任我们。
4. 创新性：我们不断探索新的方法和工具，以提供更好的服务并满足客户的需求。我们鼓励创新和实验，并愿意接受挑战和改变。
5. 成本效益：我们提供高性价比的服务，不仅能够帮助客户节省成本，而且还能提高效率和生产力。我们始终以客户的利益为出发点，为客户提供最优的解决方案。
6. 团队合作：我们相信团队的力量和合作的价值，我们的团队成员之间互相支持、协作和尊重。我们与客户、合作伙伴和其他利益相关者建立紧密的合作关系，以实现共同的目标。
以上只是选择我们的部分原因，我们相信还有很多其他的优点和价值可以为客户提供。如果您正在寻找一家专业、可靠、高质量的服务提供商，我们非常期待与您的合作。
-
搅拌脱泡机的工作原理？
施诺斯搅拌脱泡机通过公转的离心力进行脱泡，通过公转与自转形成的剪切力进行搅拌，
再辅助以真空泵抽取气体以达到真空状态，去除纳米级微小气泡。 不接触物料，无二次污染，无二次浪费。
-
施诺斯能提供工程咨询技术服务吗？
施诺斯能为广大客户提供全面的工程和现代化的咨询服务。施诺斯近二十年的搅拌经验，可以为你提供高效的咨询服务。
想要让搅拌机性能更上一层楼，提升系统的整体效能？我们有全面的咨询、工程以及现代化改造服务，为您量身打造解决方案。 在如今竞争激烈的全球化浪潮中，唯有不断创新、持续优化，才能始终跑在对手前面。您的生产工艺和产品日新月异，我们就为您提供最适配的混合技术。不管是新的产品参数，还是既有的工艺条件，我们都能对现有系统和搅拌设备进行全方位的检查与评估，挖掘其中潜藏的流程优化空间和机械性能提升潜力，并且帮您把这些改进切实落地。 要是您的搅拌设备已经跟不上时代步伐，能耗居高不下，或是维护成本让您头疼不已，那就别犹豫，我们的咨询、工程设计和现代化改造服务，就是为您排忧解难的良方。欢迎随时联系我们，携手开启高效生产新征程！
Technical Specification List
Compare specifications of vacuum‑series models to support accurate product selection.
| Model | SIE‑MIX60 | SIE‑MIX650 | SIE‑MIX90 |
| Mixing Capacity | 0–300 mL (standard container) * Customizable | 0–500 mL (standard container) * Customizable | 0–1000 mL (standard container) * Customizable |
| Container Type | Tubes / Jars / Cups; adapters for syringes and cartridges supported | Tubes / Jars / Cups; adapters for syringes and cartridges supported | Tubes / Jars / Cups; adapters for syringes and cartridges supported |
| Number of Containers | 1 or 2 jars (user‑selectable) | 1 or 2 jars (user‑selectable) | 1 or 2 jars (user‑selectable) |
| Max Speed | 0 – 3000 RPM (stepless adjustable) | 0 – 2000 RPM (stepless adjustable) | 0 – 2000 RPM (stepless adjustable) |
| Revolution / Rotation Ratio | Fixed planetary ratio | Fixed planetary ratio | Fixed planetary ratio |
| Vacuum Level | Standard: –98 kPa / Optional: –100 kPa | Standard: –98 kPa / Optional: –100 kPa | Standard: –98 kPa / Optional: –100 kPa |
| Control System | Touch‑screen, stores up to 100 recipe sets | Touch‑screen, stores up to 100 recipe sets | Touch‑screen, stores up to 100 recipe sets |
| Power Supply | 220V, 50/60Hz (110V US/JP standard customizable) | 220V, 50/60Hz (110V US/JP standard customizable) | 220V, 50/60Hz (110V US/JP standard customizable) |
| Dimensions (W×D×H) | 510 × 430 × 500 mm | 580 × 560 × 760 mm | 610 × 560 × 780 mm |
| Net Weight | 95 kg | 145 kg | 153 kg |
| Certifications | CE, FCC | CE, FCC | CE, FCC |
*** The above are typical models only. Customized solutions are available upon customer requirements.
Multi‑Industry Solutions
Customized solutions are available to meet comprehensive requirements ranging from cutting‑edge R&D to mass‑scale production.
Electronics IndustryEpoxy Potting Compounds, Conductive Silver Adhesive, Electronic Pastes, UV Adhesives, Thermal‑Conductive Gels |
Aerospace & Defense IndustryComposite Matrix Resins, Structural Adhesives, Radar‑Absorbing Coatings, Functional Coating Liquids |
Medical Device IndustryMedical Adhesives, Sensor Encapsulants, Catheter Coating Liquids, Diagnostic Reagent Carriers |
Chemical IndustryResin Casting Compounds, Resin Solutions, Catalyst Pastes, Reactive Adhesives |
Adhesive & Sealant IndustryStructural Adhesives, Sealants, Conductive Adhesives, High‑Temperature Adhesives |
3D‑Printing IndustryPhotosensitive Resins, Functional Inks, Ceramic Pastes, Composite Prepregs |
Comprehensive Equipment Operation Demo Videos
Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.

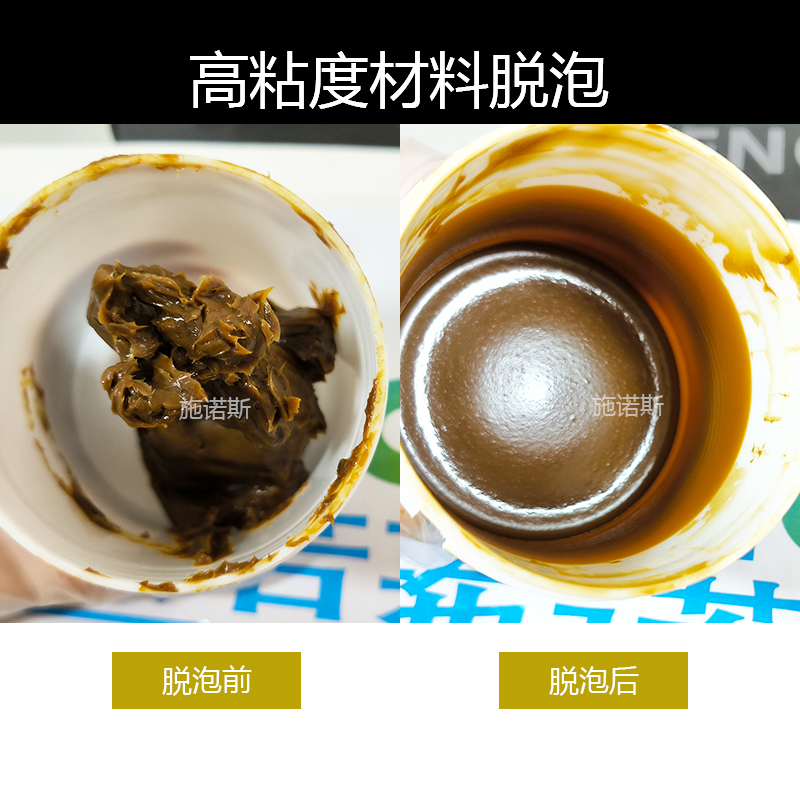

Actual Test Results of Defoaming Process
Completely get rid of material bubble voids and delamination.

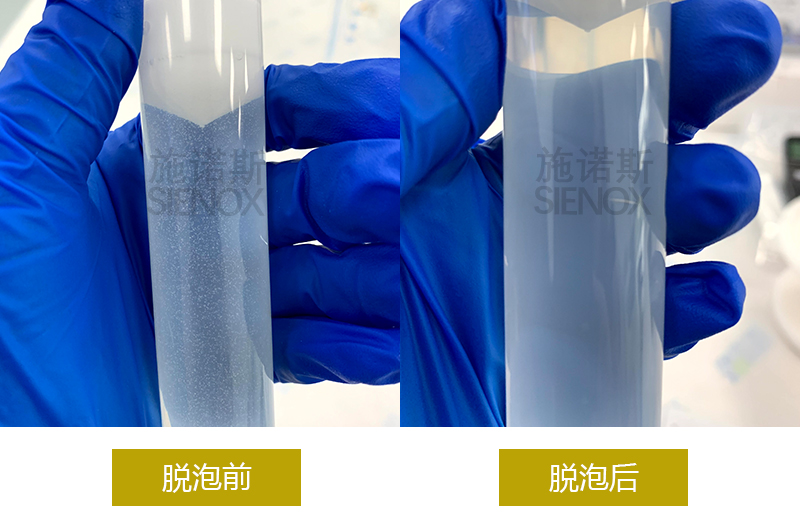

UV Adhesive |

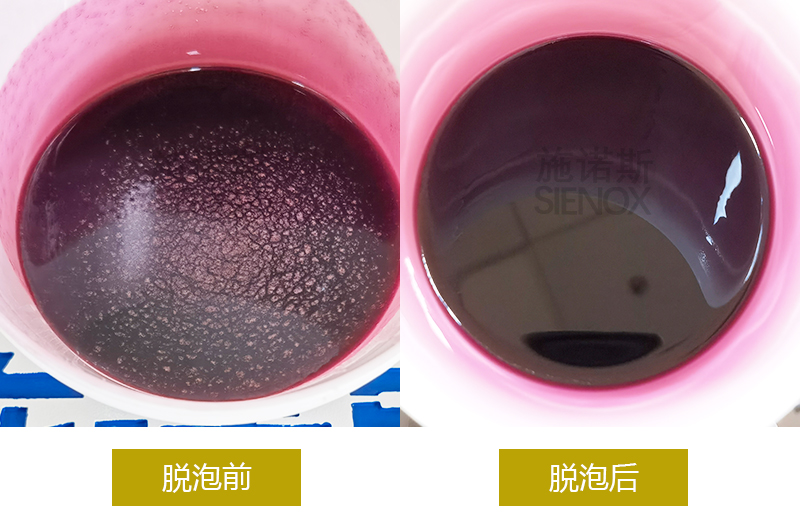

Epoxy Resin |

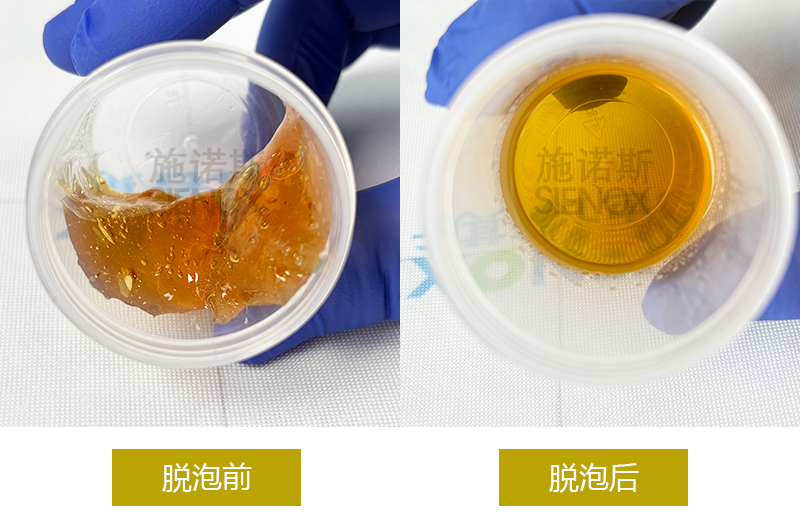

Polymer Materials |

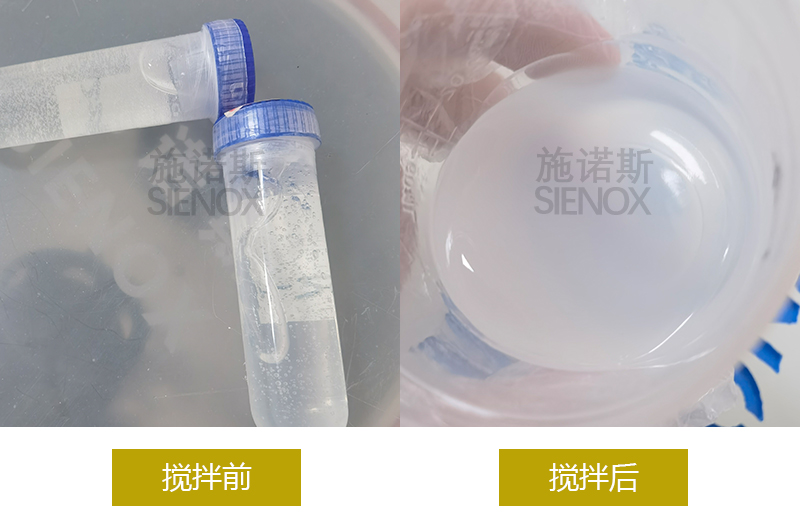

Pharmaceutical Gel |

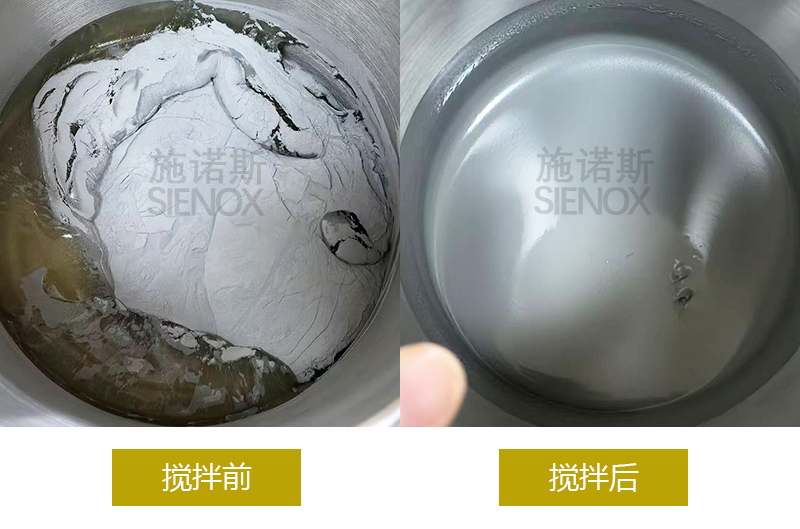

Silver Paste |

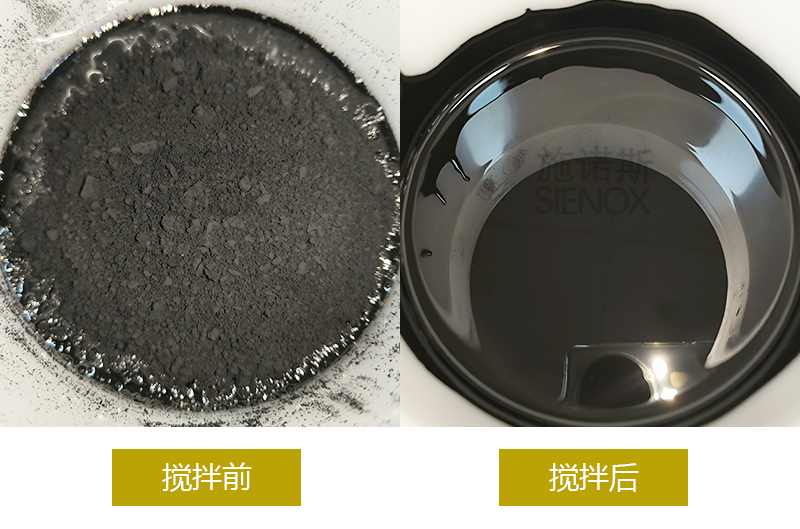

Battery Slurry |
Measured Data Comparison
Data‑Backed · Quantifiable Performance
| Material Type | Status Before Treatment | After MIX650 Treatment |
| Epoxy Potting Compound | Dense internal bubbles, approx. 5% encapsulation void rate, unstable insulation performance | Bubbles eliminated, encapsulation void rate <0.5%, stable insulation performance |
| Lithium‑ion Battery Cathode Slurry | Abundant internal bubbles, approx. 6% coating pinhole rate, large thickness deviation | Bubbles eliminated, coating pinhole rate <1%, uniform thickness |
| Thermal‑Conductive Grease | Numerous internal bubbles, thermal powder agglomeration, thermal conductivity deviation ±15% | Homogeneously dispersed powder, bubbles eliminated, thermal conductivity deviation ±3% |
* Internal laboratory test data. Actual improvement varies with material formulation. Real‑world customer references are available upon request from sales.
