三维混粉机
TEL:18925129293

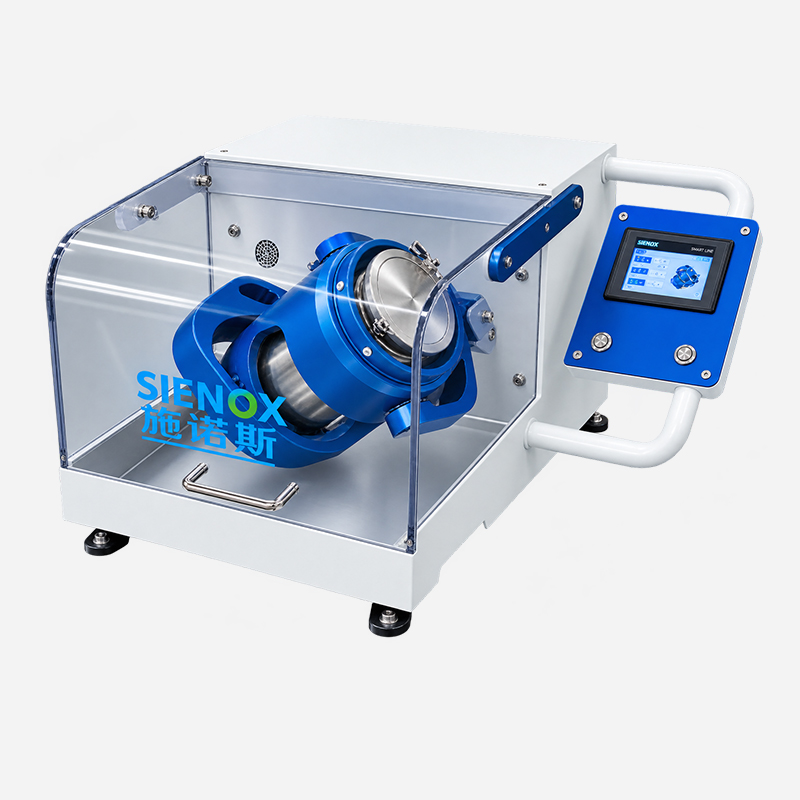

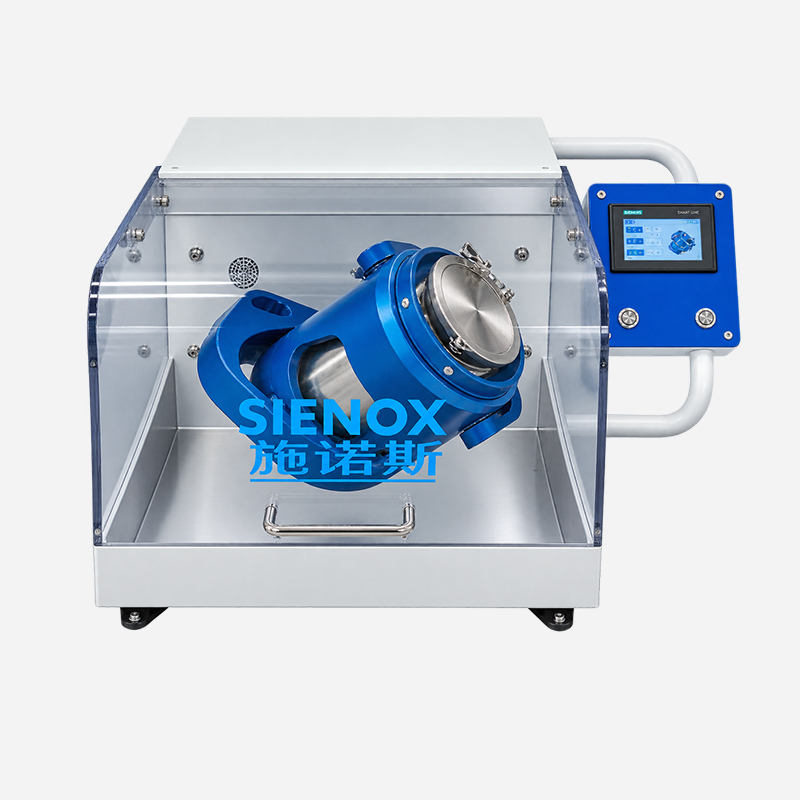

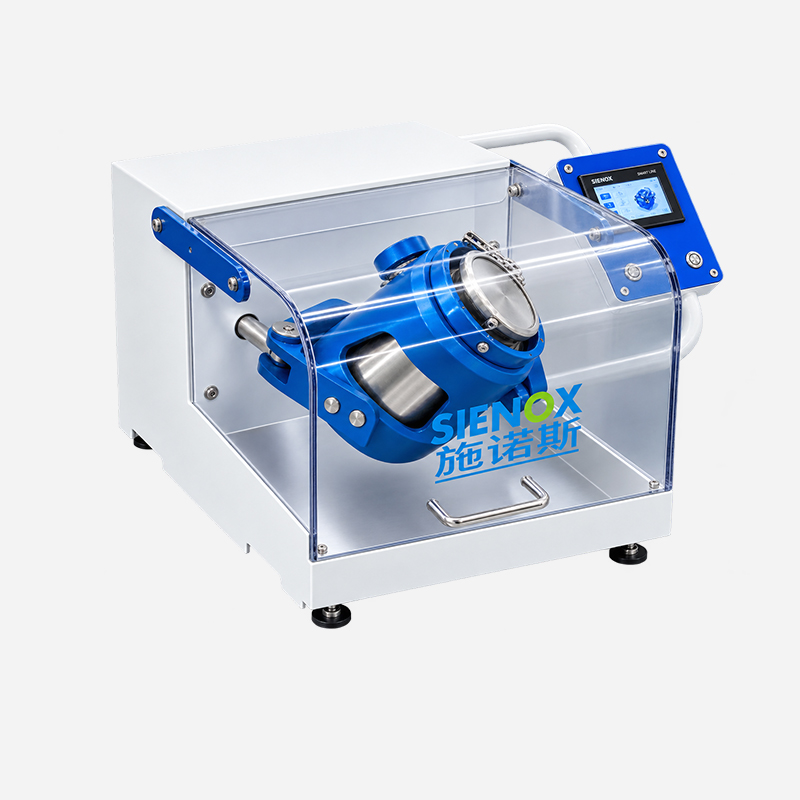

三维混粉机SIE-HF5L
5L大容量提升单次处理量 · 三维复合运动无死角混合保障批次一致性
5L大容量高效混料 + 9KG重负载适配 + 密闭无尘批次稳定
施诺斯SIE-HF5L三维混粉机,5L标准容器(最大处理量4500ML/负载≤9KG),转速20-60rpm可调。微电脑控制系统触摸屏操作,正反转双工序0-50分钟可调,可存10组配方。560×780×520mm机身67kg,适配中小批量生产和多品种切换。
全程非接触搅拌,减少物料污染风险,适配荧光粉、环氧树脂、陶瓷浆料、光敏树脂等多种实验室常见材料。
✓ ISO9001质量体系 ✓ RoHS符合性 ✓ 支持电压定制(110V/220V)
为什么需要精密混合
粉末材料混合不均会直接影响终端产品性能
陶瓷工业氧化铝、氧化锆等陶瓷粉料中不同组元混合不均,导致烧结后致密度不均、开裂、力学性能波动。三维混粉机使不同比重和粒径的陶瓷粉料均匀混合,保障烧结体成分一致性和性能稳定,中小批量生产即可达到品质标准,降低废品率。 | 医药工业药粉配方中原料药与辅料混合不均导致药片含量偏差,影响药效一致性和药品合规性。三维混粉机在密闭无尘环境中使药粉均匀混合,保障每批次药粉含量分布均匀,满足药品生产对混合均匀度的严格要求,批次一致性有保障。 | 磁性材料行业钕铁硼等永磁材料粉末混合不均导致磁性能波动,批次间一致性差影响客户验收。三维混粉机使不同粒度的磁粉均匀混合,保障烧结磁体磁性能一致性和批次稳定性,中小批量生产即可达到品质标准,降低废品率。 |
✨ 传统混样的困境:小容量设备单次处理量不足,中小批量订单需分批混料效率低;V型混合机或三维混合机清洗困难,换料切换耗时长;开放式混合粉尘飞扬,污染环境且造成原料损耗;批次间一致性差,影响客户验收和交付。
为何选择SIE-HF5L
解决中小批量生产混粉的核心痛点
5L大容量提升效率5L标准容器,最大处理量4500ML,比2L机型单次处理量提升一倍以上,减少分批混料次数,提升中小批量生产效率。5000ML容器适配多种标准罐,支持使用转接套或放入标准罐塞紧固固定小容器扩展,灵活适配不同处理量需求,一机多用。 | 9KG重负载适配更重物料适配更重物料混合需求。金属粉末、陶瓷粉料等比重较大的物料在5L容量下也能稳定混合,三维复合运动保障不同比重物料无死角均匀混合。支持干-干、干-湿、湿-湿样品混合,适用范围广泛。 | 智能控制批次稳定可复现微电脑控制系统配触摸屏操作,可存储10组配方参数,多品种切换时一键调用不同工艺参数,避免人为设定误差。正反转双工序运行,时长0-50分钟可调,每1秒可调,支持循环运行。机器自然停机后自动找回原点停机,保障每批次操作规范一致。可视化防护外罩具备停机锁止功能,开启护罩设备即刻停机,保障操作安全。 |
✨ 如果您的中小批量生产需要大容量高效混料、多品种频繁切换、或处理较重物料,HF5L是理想选择
工作原理
在完全密闭的容器中,通过旋转、平动、颠倒多维空间运动实现物料均匀混合
第一步:密闭容器三维运动 第二步:多向流动均匀扩散 第三步:定时停机回原点 简单三步:密闭三维运动 → 多向流动扩散 → 定时回原点出料,实现无死角均匀混合。支持正反转双工序循环运行,可多次循环至目标均匀度。 | ![]() |
技术规格参数
完整技术参数一览,支持按需定制
| 设备型号 | SIE-HF5L |
| 最大处理量 | 4500ML(可负载≤6KG) |
| 转速范围 | 20~60rpm |
| 时间设定 | 正、反转双工序运行,时长0-50分钟可调,每1秒可调,支持循环运行 |
| 配方参数存储 | 可存储10组参数 |
| 控制系统 | 微电脑控制系统,触摸屏操作 |
| 工作原理 | 旋转、平动、颠倒多维空间运动 |
| 机器回原点 | 机器自然停机后自动找回原点停机 |
| 供电参数 | 单相AC220V±5%,50~60Hz |
| 外形尺寸(W×D×H) | 560×780×520mm |
| 净重 | 约67 kg |
| 认证 | ISO9001, RoHS 符合性 |
Our Partners
Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide
FAQ - Frequently Asked Questions
Answers to common questions about product performance and everyday process selection
-
What is the working principle of a centrifugal defoaming machine?
Principle of centrifugal defoaming machine: The bubbles are released by the downward principle of gravity.
-
How is the after-sales service?
The company has professional after-sales service personnel, 24-hour dedicated service, and one-on-one technical support to solve your worries.
-
Why choose SIENOX?
There are many reasons for choosing SIENOX, and the following are some of the main reasons:
1. Professionalism: Our team consists of a group of professional individuals with rich experience and knowledge in their respective fields. We not only understand industry trends and best practices, but also provide practical and feasible solutions.
2. Service quality: We focus on customer needs and satisfaction, and are always committed to providing high-quality services. We not only respond quickly to customer needs, but also provide customized services according to their requirements.
3. Reliability: We adhere to the principles of integrity and professionalism, always adhering to commitments and agreements. Our work methods and deliverables comply with industry standards and best practices, enabling our clients to trust us.
4. Innovation: We continuously explore new methods and tools to provide better services and meet customer needs. We encourage innovation and experimentation, and are willing to accept challenges and change.
5. Cost effectiveness: We provide cost-effective services that not only help customers save costs, but also improve efficiency and productivity. We always prioritize the interests of our customers and provide them with the best solutions.
6. Teamwork: We believe in the power and value of teamwork, and our team members support, collaborate, and respect each other. We establish close cooperative relationships with customers, partners, and other stakeholders to achieve common goals.
The above are just some of the reasons for choosing us. We believe there are many other advantages and values that can be provided to customers. If you are looking for a professional, reliable, and high-quality service provider, we look forward to working with you.
-
How does the stirring and defoaming machine work?
The SIENOX stirring and defoaming machine performs defoaming through centrifugal force at revolution and stirring through shear force formed by revolution and rotation,
Assisted by a vacuum pump to extract gas and achieve a vacuum state, removing nanoscale tiny bubbles. No contact with materials, no secondary pollution, and no secondary waste.
-
What is the function of a defoaming machine?
A defoaming machine is a device used to remove bubbles from liquids. Its function is to assist in the liquid mixing, reaction, coating, printing, infusion and other process steps in the production process, avoiding the generation of bubbles and their impact on the final product. In many industrial and laboratory environments, removing bubbles is essential as they may have a negative impact on product quality, such as affecting surface tension and stability. Defoaming machines typically use various techniques such as vibration, ultrasound, centrifugation, etc. to achieve effective bubble removal. It has a wide range of applications, including but not limited to semiconductors, solar energy, optics, biotechnology, materials science, etc.
技术指标一览表
全线参数规范,助您精准评估工艺选型
| 设备型号 | SIE-HF2L | SIE-HF5L |
| 最大处理量 | 2000ML(可负载≤6KG) | 4500ML(≤9KG) |
| 转速范围 | 30~100rpm | 20~60rpm |
| 时间设定 | 正、反转双工序运行,时长0-50分钟可调,每1秒可调,支持循环运行 | 正、反转双工序运行,时长0-50分钟可调,每1秒可调,支持循环运行 |
| 配方参数存储 | 可存储10组参数 | 可存储10组参数 |
| 控制系统 | 微电脑控制系统,触摸屏操作 | 微电脑控制系统,触摸屏操作 |
| 工作原理 | 旋转、平动、颠倒多维空间运动 | 旋转、平动、颠倒多维空间运动 |
| 机器回原点 | 机器自然停机后自动找回原点停机 | 机器自然停机后自动找回原点停机 |
| 供电参数 | 单相AC220V±5%,50~60Hz | 单相AC220V±5%,50~60Hz |
| 外形尺寸(W×D×H) | 500×660×410mm | 560×780×520mm |
| 净重 | 43 kg | 67 kg |
多行业解决方案
覆盖典型粉末混合应用
烧结粉末金属硬质合金粉末(WC-Co)、铁基粉末(Fe-Cu-C)、不锈钢粉末、铜基粉末 |
陶瓷工业氧化铝粉、氧化锆粉、碳化硅粉、氮化硅粉、陶瓷色釉料 |
医药工业原料药+辅料混合、药粉配方混样、中药粉末混合、颗粒剂预混 |
新能源材料三元材料(NCM)、磷酸铁锂(LFP)、石墨负极材料、电解质粉末、导电剂混合 | ![]() 科研院所新材料研发混样、纳米粉末混合、功能梯度材料配方、电池材料混合 |
磁性材料钕铁硼磁粉、铁氧体粉末、粘结磁体粉末、磁性复合材料 |
全方位设备操作演示视频
直观、清晰、动态感受行星离心与高负压同步除泡的技术魅力
实测效果展示
实验室材料实测处理效果
AB胶水 |
胶水+粉料 |
玻璃粉 |
电子胶+粉料 |
环氧树脂 |
电池浆料粉料 |
实测效果对比
材料脱泡前后效果对比
| 材料类型 | 处理前状态 | HF5L处理后 |
| 硬质合金粉末(WC-Co) | 钴粉聚集成团,与碳化钨粉界限分明,颜色深浅不一,烧结后成分偏析严重 | 钴粉均匀包裹碳化钨颗粒,颜色一致无聚集,烧结后成分均匀力学性能稳定 |
| 氧化铝+氧化锆复合粉 | 两种粉末因比重差异明显分层,上层氧化铝下层氧化锆,混合不均影响陶瓷性能 | 两相均匀分布无分层,色泽均匀一致,烧结后陶瓷致密度和力学性能提升 |
| 铁铜碳混合粉末 | 不同金属粉末因比重差异明显分层,铁粉沉底铜粉上浮,颜色斑驳不均 | 各金属粉末均匀分布无分层,颜色一致无偏析,烧结件成分均匀性能稳定 |
* 内部实验室测试数据,具体提升幅度因材料配方而异。真实客户案例可联系销售获取。
