三维混粉机
TEL:18925129293

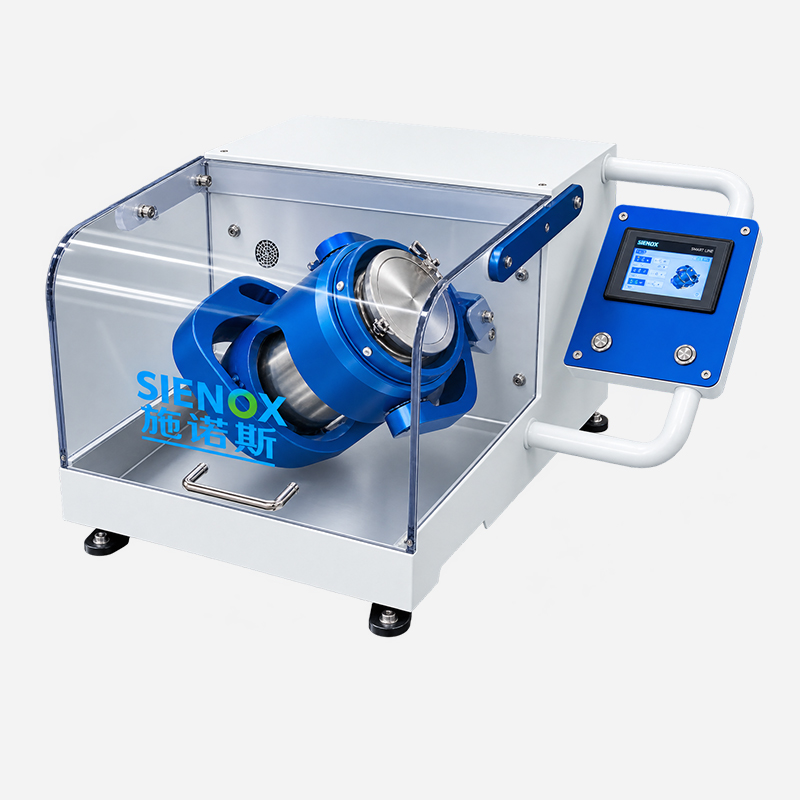

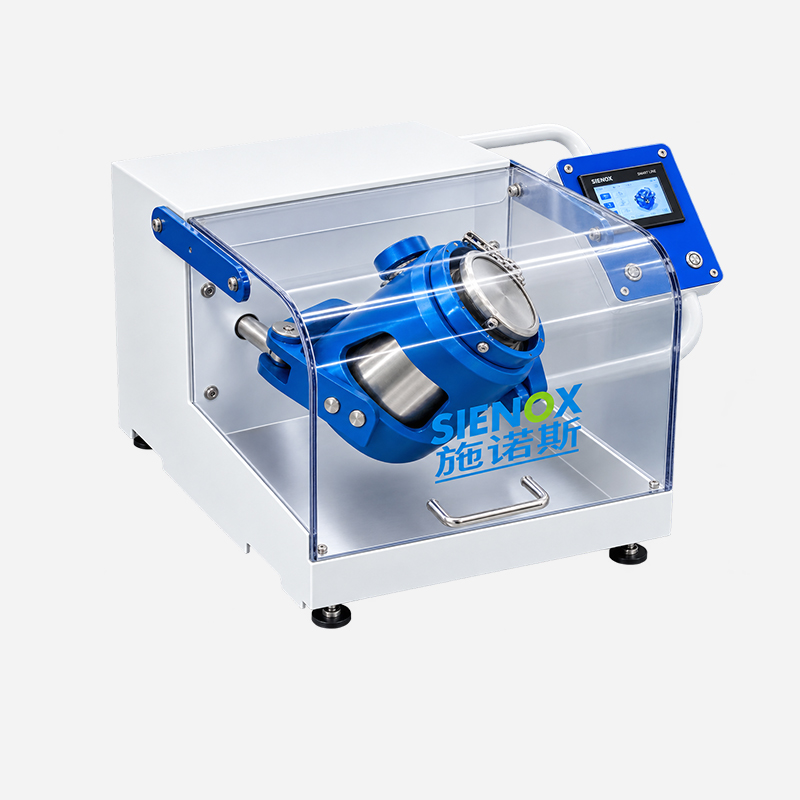

三维混粉机SIE-HF2L
三维复合运动无死角混合 · 密闭无尘保护实验室环境
三维无死角混合 + 密闭无尘操作 + 触摸屏智能控制
施诺斯SIE-HF2L三维混粉机,2L标准容器(最大处理量2000ML/负载≤6KG),转速30-100rpm可调。微电脑控制系统触摸屏操作,正反转双工序0-50分钟可调,可存10组配方。500×660×410mm机身43kg,适合实验室台面操作。
全程非接触搅拌,减少物料污染风险,适配荧光粉、环氧树脂、陶瓷浆料、光敏树脂等多种实验室常见材料。
✓ ISO9001质量体系 ✓ RoHS符合性 ✓ 支持电压定制(110V/220V)
为什么需要精密混合
粉末材料混合不均会直接影响终端产品性能
烧结粉末金属行业硬质合金、粉末冶金配方中各组元粉末(如WC-Co、Fe-Cu-C)混合不均,导致烧结件成分偏析、密度不均、力学性能波动。三维混粉机使不同比重、不同粒径的金属粉末均匀混合,保障烧结件成分一致性和性能稳定,让配方评估数据可靠可复现。 | 新材料研发科研院所新材料研发中不同比重粉末混合困难,轻粉末浮于上部、重粉末沉底,传统混合方式难以达到均匀。三维混粉机通过多维空间运动促使物料相互流动、扩散、积聚、掺杂,实现不同比重和颗粒大小物料的均匀混合,满足科研对混样精度的要求。 | 新能源材料行业锂电池正极材料(如三元材料NCM、磷酸铁锂LFP)中不同组元粉末混合不均,直接影响电化学性能一致性,实验室配方评估数据偏差大。三维混粉机使不同比重和粒径的电池材料均匀混合,保障实验室小样配方的电化学数据可靠可复现,加速新材料研发迭代。 |
✨ 传统混样的困境:人工混样均匀度差、效率低,不同人操作结果不同;V型混合机或三维混合机占地大、清洗困难,不适合实验室小批量频繁换料;开放式混合粉尘飞扬,污染环境且损耗贵重原料;批次一致性差,影响研发数据可靠性。
为何选择SIE-HF2L
解决实验室小样混粉的核心痛点
三维复合运动无死角混合在完全密闭的容器中,主动轴驱动物料快速翻转、摆动,促使物料沿筒体做环向、径向、轴向的三向复合运动。多种物料在运动中相互流动、扩散、积聚、掺杂,实现均匀混合,无死角无盲区。支持干-干、干-湿、湿-湿样品混合,适用于不同比重及颗粒大小的物料,让研发小样混粉均匀度远超人工和传统设备。 | 30-100rpm宽调速精准控速转速范围30-100rpm可调,可根据物料特性灵活设定混合速度。低转速适配易碎粉末和易分层物料,高转速适配需要强力混合的难混物料。正反转双工序运行,时长0-50分钟可调,每1秒可调,支持循环运行,让混合工艺参数精准可控,不同批次间一致性有保障。 | 触摸屏智能控制配方可复现微电脑控制系统配触摸屏操作,界面直观操作简便。可存储10组配方参数,不同材料对应不同工艺参数一键调用,避免每次重新设定。机器自然停机后自动找回原点停机,保障操作规范。可视化防护外罩具备停机锁止功能,开启护罩设备即刻停机,杜绝运转夹手风险。 |
✨ 如果您的实验室需要一台占地小、混合均匀、工艺可复现的三维混粉机,HF2L是理想选择
工作原理

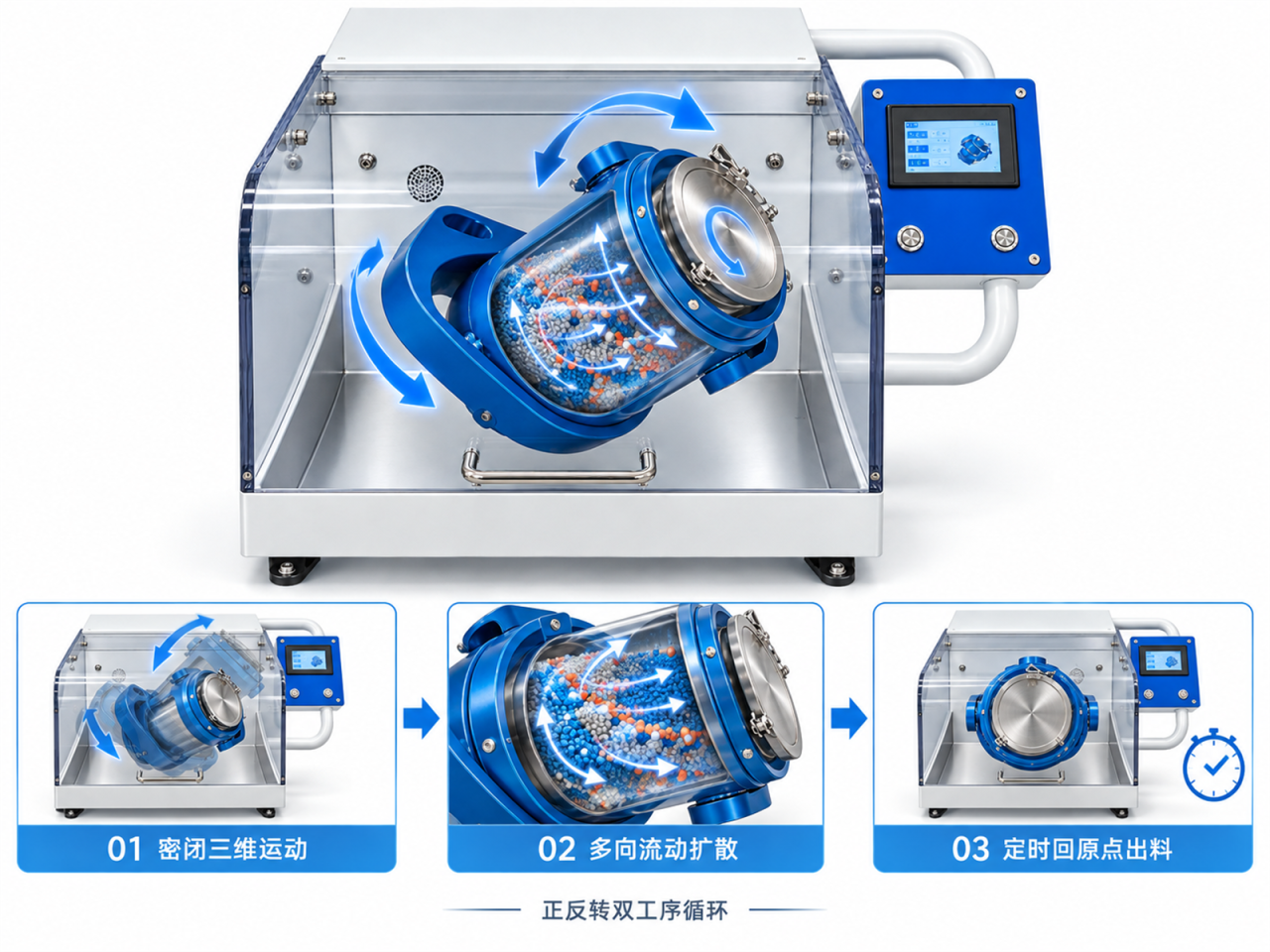

在完全密闭的容器中,通过旋转、平动、颠倒多维空间运动实现物料均匀混合
第一步:密闭容器三维运动 第二步:多向流动均匀扩散 第三步:定时停机回原点 简单三步:密闭三维运动 → 多向流动扩散 → 定时回原点出料,实现无死角均匀混合。支持正反转双工序循环运行,可多次循环至目标均匀度。 | ![]() |
技术规格参数
完整技术参数一览,支持按需定制
| 设备型号 | SIE-HF2L |
| 最大处理量 | 2000ML(可负载≤6KG) |
| 转速范围 | 30~100rpm |
| 时间设定 | 正、反转双工序运行,时长0-50分钟可调,每1秒可调,支持循环运行 |
| 配方参数存储 | 可存储10组参数 |
| 控制系统 | 微电脑控制系统,触摸屏操作 |
| 工作原理 | 旋转、平动、颠倒多维空间运动 |
| 机器回原点 | 机器自然停机后自动找回原点停机 |
| 供电参数 | 单相AC220V±5%,50~60Hz |
| 外形尺寸(W×D×H) | 500×660×410mm |
| 净重 | 约43 kg |
| 认证 | ISO9001, RoHS 符合性 |
Our Partners
Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide
FAQ - Frequently Asked Questions
Answers to common questions about product performance and everyday process selection
-
What is the working principle of a centrifugal defoaming machine?
Principle of centrifugal defoaming machine: The bubbles are released by the downward principle of gravity.
-
How is the after-sales service?
The company has professional after-sales service personnel, 24-hour dedicated service, and one-on-one technical support to solve your worries.
-
Why choose SIENOX?
There are many reasons for choosing SIENOX, and the following are some of the main reasons:
1. Professionalism: Our team consists of a group of professional individuals with rich experience and knowledge in their respective fields. We not only understand industry trends and best practices, but also provide practical and feasible solutions.
2. Service quality: We focus on customer needs and satisfaction, and are always committed to providing high-quality services. We not only respond quickly to customer needs, but also provide customized services according to their requirements.
3. Reliability: We adhere to the principles of integrity and professionalism, always adhering to commitments and agreements. Our work methods and deliverables comply with industry standards and best practices, enabling our clients to trust us.
4. Innovation: We continuously explore new methods and tools to provide better services and meet customer needs. We encourage innovation and experimentation, and are willing to accept challenges and change.
5. Cost effectiveness: We provide cost-effective services that not only help customers save costs, but also improve efficiency and productivity. We always prioritize the interests of our customers and provide them with the best solutions.
6. Teamwork: We believe in the power and value of teamwork, and our team members support, collaborate, and respect each other. We establish close cooperative relationships with customers, partners, and other stakeholders to achieve common goals.
The above are just some of the reasons for choosing us. We believe there are many other advantages and values that can be provided to customers. If you are looking for a professional, reliable, and high-quality service provider, we look forward to working with you.
-
How does the stirring and defoaming machine work?
The SIENOX stirring and defoaming machine performs defoaming through centrifugal force at revolution and stirring through shear force formed by revolution and rotation,
Assisted by a vacuum pump to extract gas and achieve a vacuum state, removing nanoscale tiny bubbles. No contact with materials, no secondary pollution, and no secondary waste.
-
What is the function of a defoaming machine?
A defoaming machine is a device used to remove bubbles from liquids. Its function is to assist in the liquid mixing, reaction, coating, printing, infusion and other process steps in the production process, avoiding the generation of bubbles and their impact on the final product. In many industrial and laboratory environments, removing bubbles is essential as they may have a negative impact on product quality, such as affecting surface tension and stability. Defoaming machines typically use various techniques such as vibration, ultrasound, centrifugation, etc. to achieve effective bubble removal. It has a wide range of applications, including but not limited to semiconductors, solar energy, optics, biotechnology, materials science, etc.
技术指标一览表
全线参数规范,助您精准评估工艺选型
| 设备型号 | SIE-HF2L | SIE-HF5L |
| 最大处理量 | 2000ML(可负载≤6KG) | 4500ML(≤9KG) |
| 转速范围 | 30~100rpm | 20~60rpm |
| 时间设定 | 正、反转双工序运行,时长0-50分钟可调,每1秒可调,支持循环运行 | 正、反转双工序运行,时长0-50分钟可调,每1秒可调,支持循环运行 |
| 配方参数存储 | 可存储10组参数 | 可存储10组参数 |
| 控制系统 | 微电脑控制系统,触摸屏操作 | 微电脑控制系统,触摸屏操作 |
| 工作原理 | 旋转、平动、颠倒多维空间运动 | 旋转、平动、颠倒多维空间运动 |
| 机器回原点 | 机器自然停机后自动找回原点停机 | 机器自然停机后自动找回原点停机 |
| 供电参数 | 单相AC220V±5%,50~60Hz | 单相AC220V±5%,50~60Hz |
| 外形尺寸(W×D×H) | 500×660×410mm | 560×780×520mm |
| 净重 | 43 kg | 67 kg |
多行业解决方案
覆盖典型粉末混合应用
烧结粉末金属硬质合金粉末(WC-Co)、铁基粉末(Fe-Cu-C)、不锈钢粉末、铜基粉末 |
陶瓷工业氧化铝粉、氧化锆粉、碳化硅粉、氮化硅粉、陶瓷色釉料 |
医药工业原料药+辅料混合、药粉配方混样、中药粉末混合、颗粒剂预混 |
新能源材料三元材料(NCM)、磷酸铁锂(LFP)、石墨负极材料、电解质粉末、导电剂混合 | ![]() 科研院所新材料研发混样、纳米粉末混合、功能梯度材料配方、电池材料混合 |
磁性材料钕铁硼磁粉、铁氧体粉末、粘结磁体粉末、磁性复合材料 |
全方位设备操作演示视频
直观、清晰、动态感受行星离心与高负压同步除泡的技术魅力
实测效果展示
实验室材料实测处理效果
AB胶水 |
胶水+粉料 |
玻璃粉 |
电子胶+粉料 |
环氧树脂 |
电池浆料粉料 |
实测效果对比
材料脱泡前后效果对比
| 材料类型 | 处理前状态 | HF2L处理后 |
| 硬质合金粉末(WC-Co) | 钴粉聚集成团,与碳化钨粉界限分明,颜色深浅不一,烧结后成分偏析严重 | 钴粉均匀包裹碳化钨颗粒,颜色一致无聚集,烧结后成分均匀力学性能稳定 |
| 氧化铝+氧化锆复合粉 | 两种粉末因比重差异明显分层,上层氧化铝下层氧化锆,混合不均影响陶瓷性能 | 两相均匀分布无分层,色泽均匀一致,烧结后陶瓷致密度和力学性能提升 |
| 药粉配方(API+辅料) | 原料药与辅料分布不均,肉眼可见颜色深浅差异,含量偏差大影响药效一致性 | 颜色均匀一致无色差,API含量分布均匀,药片含量偏差小药效稳定 |
* 内部实验室测试数据,具体提升幅度因材料配方而异。真实客户案例可联系销售获取。
