加压脱泡机 SIE-RX13-1500
大直径腔体适配大面板 · 均匀加压全幅面品质一致
大直径腔体大面板平放入箱 + SMC精准控压全幅面受力均匀 + 压力容器整套安全证书双重保障
施诺斯SIE-RX13-1500加压脱泡机,φ1300×1500mm大直径圆柱腔体约1990L,大面板产品平放整件入箱。SMC数显压力表精度±0.01MPa,欧姆龙PID温控精度±1.0℃。三种工作模式可选,提供整套压力容器安全证书,利用压力及温度去除贴合过程中产生的气泡,增强材料间粘合力。
✓ ISO9001质量体系 ✓ RoHS符合性 ✓ 支持电压定制(110V/220V)
为什么要消除材料中的气泡
材料贴合过程中残留的微气泡会直接影响产品品质
大面板LCD贴合行业大面板LCD玻璃基板与偏光片贴合过程中,OCA光学胶面积大气泡多,贴合后大面积显示不良、漏光、色差,整面板报废损失极高。加压脱泡φ1300大直径腔体可让大面板LCD平放整件入箱,SMC精准控压保障大面积贴合各位置受力均匀,气泡充分排出,适合大面板LCD贴合脱泡生产。 | 汽车触控屏行业汽车触控屏尺寸大、曲率特殊,贴合过程中气泡导致触控失灵影响驾驶安全,品质要求极高。加压脱泡φ1300大直径腔体可放入大尺寸汽车触控屏,三种工作模式按OCA胶和贴合工艺选择,大腔体均匀加压保障汽车触控屏全幅面脱泡一致,适合汽车触控屏大面板贴合脱泡。 | 印刷电子材料行业印刷电子材料如导电油墨、印刷电路在大面积基材上印刷后气泡导致电路断路、电阻不均,大批量生产需稳定脱泡。加压脱泡1990L大腔体一次处理大批量印刷电子材料,欧姆龙PID温控使油墨在适宜温度下流动性好气泡易排出,精密过滤器防止材料二次污染,适合印刷电子材料大批量脱泡。 |
✨ 传统脱泡的困境:大面板产品尺寸超出常规设备腔体,无法整件入箱只能拆分处理增加工序;大腔体设备压力分布不均匀,大面板不同位置脱泡效果差异大;大容积压力容器缺乏安全证书和报警系统,大面板产品价值高安全生产风险大。
为何选择SIE-RX13-1500
解决大面板产品贴合的尺寸、品质和安全痛点
大直径适配大面板大直径圆柱腔体,大面板LCD、汽车触控屏等大尺寸产品可平放整件入箱,不用拆分处理避免二次气泡。1500mm腔体长度兼顾装载深度和占地面积,1990L容积一次处理多片大面板或大批量材料,产能满足大面板产线需求。 | 均匀加压大腔体一致SMC数显压力表精度±0.01MPa,大直径腔体配合精准控压,大面板各位置受力均匀。大面积贴合中均匀受力是品质一致的关键,φ1300大直径腔体内压力分布均匀,保障大面板全幅面脱泡效果一致,减少边缘和中心位置的脱泡差异。 | 压力容器整套安全证书大容积压力容器提供整套安全证书,S30408不锈钢罐体耐压耐腐蚀。声光电报警系统异常时同步提示,微电脑显示报警内容。大面板产品价值高,设备故障可能导致整批报废,安全证书和报警系统双重保障大面板生产安全。 |
✨ 如果您需要处理大面板产品、对全幅面脱泡一致性和安全生产有要求,RX13-1500的大直径腔体和均匀加压能满足您的大面板需求

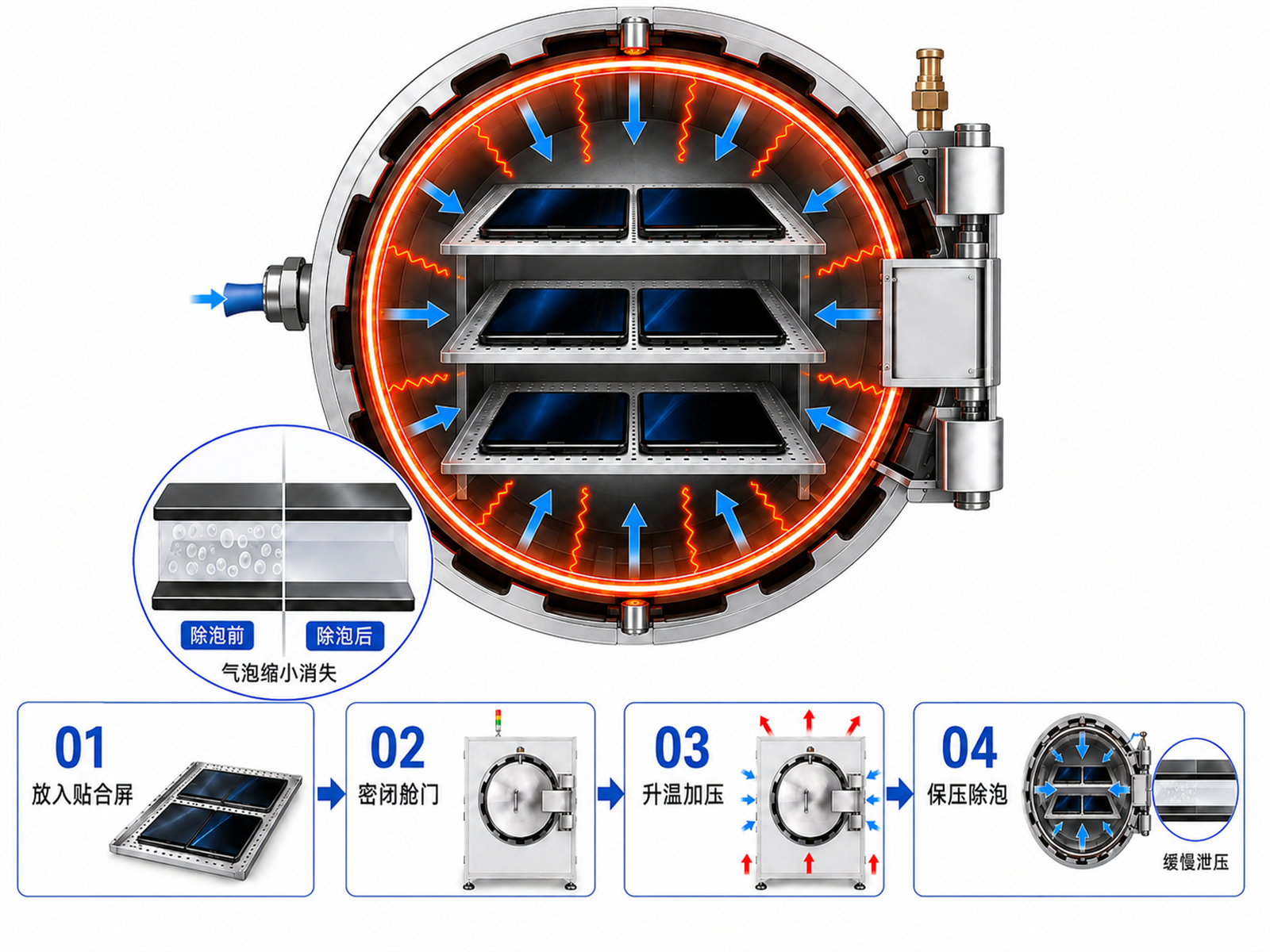

工作原理
利用压力及温度去除贴合过程中产生的气泡,增强不同材料之间的粘合力
第一步:加压升温(三模式可选):根据材料特性选择先加压再升温、加温加压同步或先升温再加压,电阻式加热配合加压建立脱泡环境。 第二步:保压脱泡:恒压恒温保持,压力使贴合面气泡受压收缩溶解,温度降低材料粘度辅助气泡从贴合面排出。 第三步:泄压稳定:缓慢泄压至常压,材料间粘合力增强,贴合面气泡消除。 简单三步:加压升温 → 保压脱泡 → 泄压稳定,消除贴合气泡增强粘合力。 | ![]() |
技术规格参数
完整技术参数一览,支持按需定制
| 设备型号 | SIE-RX13-1500 |
| 工作室尺寸 | φ1300×1500mm(圆柱形) |
| 有效容积 | 约1990L |
| 工作压力 | 0~0.8MPa(标准),0~2.5MPa(可选) |
| 工作温度 | 常温~80℃(标准),常温~180℃(可选) |
| 加热方式 | 电阻式加热 |
| 工作模式 | A.先加压再升温 B.加温加压同步 C.先升温再加压 |
| 控制方式 | 微电脑控制 |
| 罐体材质 | S30408不锈钢或碳钢 |
| 外形尺寸(W×D×H) | 约1600×1800×2300mm(以实物为准) |
| 净重 | 3000 kg |
| 认证 | ISO9001, RoHS 符合性 |
Our Partners
Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide
FAQ - Frequently Asked Questions
Answers to common questions about product performance and everyday process selection
-
What is the working principle of a centrifugal defoaming machine?
Principle of centrifugal defoaming machine: The bubbles are released by the downward principle of gravity.
-
How is the after-sales service?
The company has professional after-sales service personnel, 24-hour dedicated service, and one-on-one technical support to solve your worries.
-
Why choose SIENOX?
There are many reasons for choosing SIENOX, and the following are some of the main reasons:
1. Professionalism: Our team consists of a group of professional individuals with rich experience and knowledge in their respective fields. We not only understand industry trends and best practices, but also provide practical and feasible solutions.
2. Service quality: We focus on customer needs and satisfaction, and are always committed to providing high-quality services. We not only respond quickly to customer needs, but also provide customized services according to their requirements.
3. Reliability: We adhere to the principles of integrity and professionalism, always adhering to commitments and agreements. Our work methods and deliverables comply with industry standards and best practices, enabling our clients to trust us.
4. Innovation: We continuously explore new methods and tools to provide better services and meet customer needs. We encourage innovation and experimentation, and are willing to accept challenges and change.
5. Cost effectiveness: We provide cost-effective services that not only help customers save costs, but also improve efficiency and productivity. We always prioritize the interests of our customers and provide them with the best solutions.
6. Teamwork: We believe in the power and value of teamwork, and our team members support, collaborate, and respect each other. We establish close cooperative relationships with customers, partners, and other stakeholders to achieve common goals.
The above are just some of the reasons for choosing us. We believe there are many other advantages and values that can be provided to customers. If you are looking for a professional, reliable, and high-quality service provider, we look forward to working with you.
-
How does the stirring and defoaming machine work?
The SIENOX stirring and defoaming machine performs defoaming through centrifugal force at revolution and stirring through shear force formed by revolution and rotation,
Assisted by a vacuum pump to extract gas and achieve a vacuum state, removing nanoscale tiny bubbles. No contact with materials, no secondary pollution, and no secondary waste.
-
What is the function of a defoaming machine?
A defoaming machine is a device used to remove bubbles from liquids. Its function is to assist in the liquid mixing, reaction, coating, printing, infusion and other process steps in the production process, avoiding the generation of bubbles and their impact on the final product. In many industrial and laboratory environments, removing bubbles is essential as they may have a negative impact on product quality, such as affecting surface tension and stability. Defoaming machines typically use various techniques such as vibration, ultrasound, centrifugation, etc. to achieve effective bubble removal. It has a wide range of applications, including but not limited to semiconductors, solar energy, optics, biotechnology, materials science, etc.
多型号对比参数表
同系列型号参数对比,助力精准选型
| 设备型号 | SIE-RX8-1200 | SIE-RX10-1800 | SIE-RX13-1500 |
| 工作室尺寸 | φ800×1200mm | φ1000×1800mm | φ1300×1500mm |
| 有效容积 | 600L | 1410L | 1990L |
| 压力范围 | 0~2.5MPa(可选) | 0~2.5MPa(可选) | 0~2.5MPa(可选) |
| 温度范围 | 常温~180℃(可选) | 常温~180℃(可选) | 常温~180℃(可选) |
| 压力精度 | ±0.01MPa | ±0.01MPa | ±0.01MPa |
| 温控精度 | ±1.0℃ | ±1.0℃ | ±1.0℃ |
| 电源 | 380V, 50/60Hz(可定制110V美日标准) | 380V, 50/60Hz(可定制110V美日标准) | 380V, 50/60Hz(可定制110V美日标准) |
| 外形尺寸(W×D×H) | 610 × 560 × 780 mm | 1300×2100×2000mm | 1600×1800×2300mm |
| 净重 | 163 kg | 2000 kg | 3000 kg |
***以上仅为典型型号,我们可以根据客户需求提供个性化解决方案。
多行业解决方案
覆盖六大行业典型材料搅拌脱泡应用
LCD偏光片贴合小尺寸偏光片OCA光学胶、LCD玻璃基板贴合胶 |
电子元器件封装元器件封装胶、芯片包封胶 |
医疗器械医用粘接胶、医疗器械贴合胶 |
LED封装LED封装胶、荧光粉胶 |
精细化工精细化工材料、纳米粉体 |
新能源材料新能源材料研发样品、电池浆料小样 |
全方位设备操作演示视频
直观、清晰、动态感受行星离心与高负压同步除泡的技术魅力
实测效果展示
六种典型材料实测处理效果
浆料+粉料 |
胶水 |
氢能材料 |
胶水 |
基材+填料 |
胶+陶瓷粉 |
实测效果对比
材料加压脱泡前后状态对比
| 材料类型 | 处理前状态 | SIE-RX13-1500处理后 |
| 偏光片OCA光学胶 | 胶内气泡多,贴合后透光不均出现发花 | 胶体透明无气泡,贴合后透光均匀 |
| 元器件封装胶 | 胶内气泡密集,固化后封装层出现空洞 | 胶体致密无空洞,封装层完整可靠 |
| 医用粘接胶 | 胶内有气泡,粘接面缺陷影响生物相容性 | 胶体致密,粘接面完整,生物相容性达标 |
* 内部实验室测试数据,具体提升幅度因材料配方而异。真实客户案例可联系销售获取。
