加压脱泡机 SIE-RX4-600


小腔体快速升压 · 研发试样三种模式灵活切换

φ400小腔体5分钟快速升压 + 三种加压升温模式灵活切换 + 精密过滤器防止试样二次污染

施诺斯SIE-RX4-600加压脱泡机,φ400×600mm圆柱腔体约75L,5分钟升压至0.6MPa。三种工作模式可选,SMC数显压力表精度±0.01MPa,欧姆龙PID温控精度±1.0℃。利用压力及温度去除贴合过程中产生的气泡,增强材料间粘合力。

✓ ISO9001质量体系 ✓ RoHS符合性 ✓ 支持电压定制(110V/220V)

Online Message Free Sample Testing Engineer Hotline: 189-2512-9293

为什么要消除材料中的气泡

材料贴合过程中残留的微气泡会直接影响产品品质

LCD偏光片贴合行业

LCD偏光片与玻璃基板贴合过程中,OCA光学胶中残留气泡导致透光不均、显示发花,影响屏幕显示品质。加压脱泡通过压力使气泡受压收缩溶解,配合温度降低OCA胶粘度辅助气泡排出,φ400小腔体适合研发阶段小尺寸偏光片试样贴合脱泡,快速验证工艺参数。

电子元器件封装行业

电子元器件封装胶中气泡导致封装层空洞,潮气侵入引起器件失效,研发阶段需反复调试工艺参数。加压脱泡三种工作模式可按封装胶特性选择先加压再升温或同步加温加压,小腔体快速升压缩短试制周期,帮助研发快速确定封装脱泡工艺方案。

医疗器械行业

医疗器械粘接贴合中气泡影响生物相容性和结构强度,试制阶段需小批量验证脱泡效果。加压脱泡精密过滤器防止产品受到二次污染,φ400腔体适合小尺寸医疗器械试样贴合脱泡,声光电报警保障试制过程安全可控。

✨ 传统脱泡的困境:研发试制阶段缺乏专业加压脱泡设备,靠静置等待气泡自然逸出耗时长效率低;普通烘箱只加热不加压,贴合面气泡难以排出;温度控制不精确导致OCA胶流动性变化大,工艺参数难以稳定复现。

为何选择SIE-RX4-600

从快速升压、模式灵活、洁净试制三个维度,解决研发试制阶段的效率与品质痛点

小腔体快速升压

φ400×600mm圆柱腔体约75L,5分钟升压至0.6MPa,2-3分钟泄压,单周期35-40分钟快速周转。小腔体升压降压快,研发试制阶段可快速迭代工艺参数,一天可完成多组条件试验,缩短研发周期。

三种模式灵活切换

提供三种工作模式:A.先加压再升温;B.加温加压同步;C.先升温再加压。不同材料对压力和温度的响应不同,三种模式按材料特性灵活选择,微电脑控制参数可存储复现,帮助研发找到工艺方案。

精密过滤器防污染

进气经精密过滤器过滤后再进入腔体,防止空气中灰尘杂质污染试制样品。研发试制阶段样品价值高数量少,一次污染可能浪费整个批次,精密过滤保障试制环境洁净,提高试制成功率。

✨ 如果您的场景是研发试制、小样贴合验证、工艺参数调试,RX4-600的小腔体快速升压和三模式灵活切换能让您快速迭代

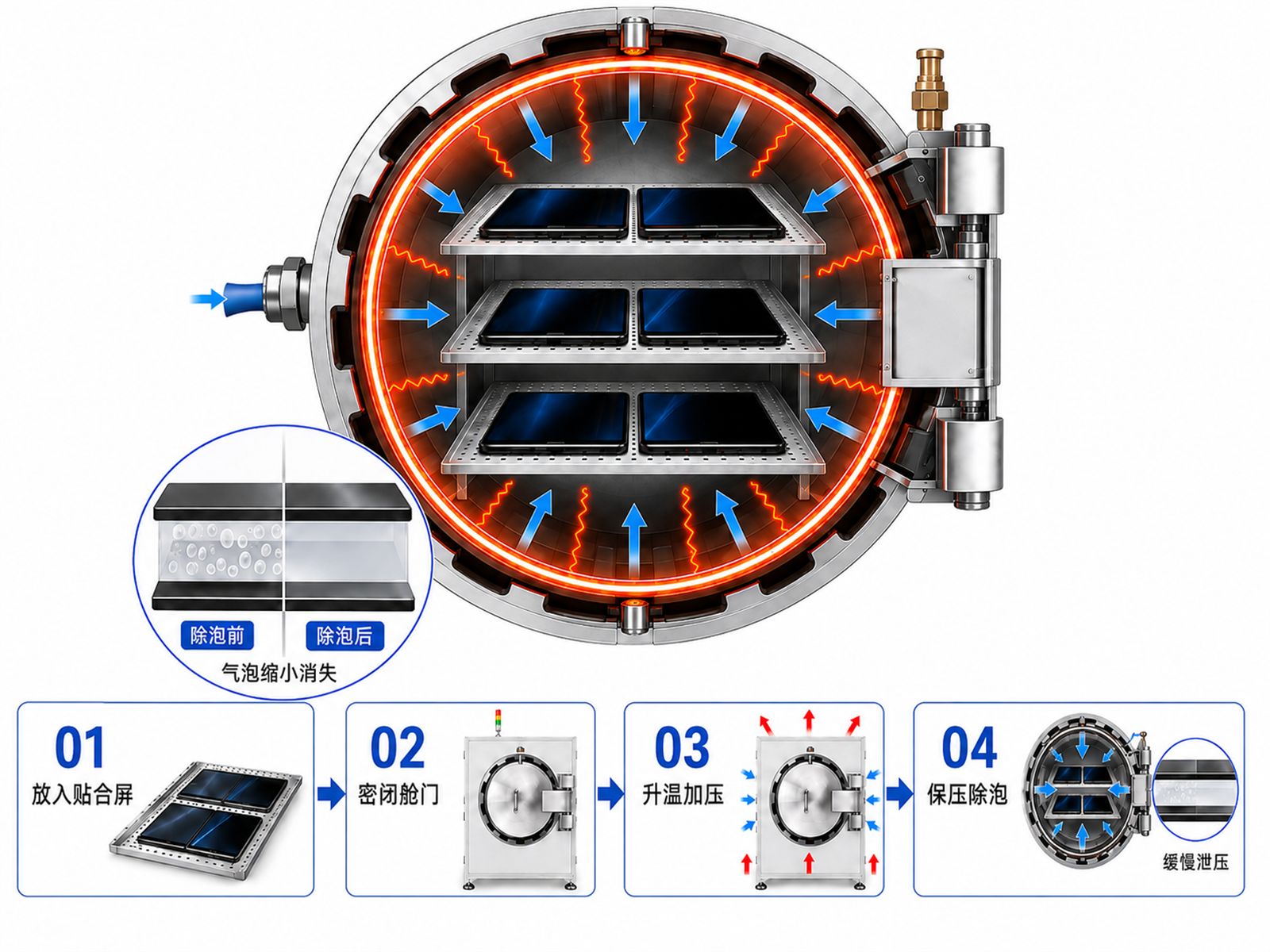

工作原理

利用压力及温度去除贴合过程中产生的气泡,增强不同材料之间的粘合力

第一步:加压升温(三模式可选):根据材料特性选择先加压再升温、加温加压同步或先升温再加压,电阻式加热配合加压建立脱泡环境。

第二步:保压脱泡:恒压恒温保持,压力使贴合面气泡受压收缩溶解,温度降低材料粘度辅助气泡从贴合面排出。

第三步:泄压稳定:缓慢泄压至常压,材料间粘合力增强,贴合面气泡消除。


简单三步:加压升温 → 保压脱泡 → 泄压稳定,消除贴合气泡增强粘合力。


技术规格参数

完整技术参数一览,支持按需定制

设备型号SIE-RX4-600
工作室尺寸φ400×600mm(圆柱形)
有效容积约75L
工作压力0~0.8MPa(标准),0~2.5MPa(可选)
工作温度常温~80℃(标准),常温~180℃(可选)
加热方式电阻式加热
工作模式A.先加压再升温 B.加温加压同步 C.先升温再加压
控制方式微电脑控制
罐体材质S30408不锈钢或碳钢
外形尺寸(W×D×H)约700×900×1300mm(以实物为准)
净重200 kg
认证 ISO9001, RoHS 符合性


Our Partners

Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide

Partner Showcase

FAQ - Frequently Asked Questions

Answers to common questions about product performance and everyday process selection

  • What is the working principle of a centrifugal defoaming machine?

    Principle of centrifugal defoaming machine: The bubbles are released by the downward principle of gravity.

  • How is the after-sales service?

    The company has professional after-sales service personnel, 24-hour dedicated service, and one-on-one technical support to solve your worries.

  • Why choose SIENOX?

    There are many reasons for choosing SIENOX, and the following are some of the main reasons:

    1. Professionalism: Our team consists of a group of professional individuals with rich experience and knowledge in their respective fields. We not only understand industry trends and best practices, but also provide practical and feasible solutions.

    2. Service quality: We focus on customer needs and satisfaction, and are always committed to providing high-quality services. We not only respond quickly to customer needs, but also provide customized services according to their requirements.

    3. Reliability: We adhere to the principles of integrity and professionalism, always adhering to commitments and agreements. Our work methods and deliverables comply with industry standards and best practices, enabling our clients to trust us.

    4. Innovation: We continuously explore new methods and tools to provide better services and meet customer needs. We encourage innovation and experimentation, and are willing to accept challenges and change.

    5. Cost effectiveness: We provide cost-effective services that not only help customers save costs, but also improve efficiency and productivity. We always prioritize the interests of our customers and provide them with the best solutions.

    6. Teamwork: We believe in the power and value of teamwork, and our team members support, collaborate, and respect each other. We establish close cooperative relationships with customers, partners, and other stakeholders to achieve common goals.

    The above are just some of the reasons for choosing us. We believe there are many other advantages and values that can be provided to customers. If you are looking for a professional, reliable, and high-quality service provider, we look forward to working with you.


  • How does the stirring and defoaming machine work?

    The SIENOX stirring and defoaming machine performs defoaming through centrifugal force at revolution and stirring through shear force formed by revolution and rotation,

    Assisted by a vacuum pump to extract gas and achieve a vacuum state, removing nanoscale tiny bubbles. No contact with materials, no secondary pollution, and no secondary waste.

  • What is the function of a defoaming machine?

    A defoaming machine is a device used to remove bubbles from liquids. Its function is to assist in the liquid mixing, reaction, coating, printing, infusion and other process steps in the production process, avoiding the generation of bubbles and their impact on the final product. In many industrial and laboratory environments, removing bubbles is essential as they may have a negative impact on product quality, such as affecting surface tension and stability. Defoaming machines typically use various techniques such as vibration, ultrasound, centrifugation, etc. to achieve effective bubble removal. It has a wide range of applications, including but not limited to semiconductors, solar energy, optics, biotechnology, materials science, etc.

多型号对比参数表

同系列型号参数对比,助力精准选型

设备型号SIE-RX4-600SIE-RX6-900SIE-RX8-1200
工作室尺寸φ400×600mmφ600×900mmφ800×1200mm
有效容积75L255L600L
压力范围0~2.5MPa(可选)0~2.5MPa(可选)0~2.5MPa(可选)
温度范围常温~180℃(可选)常温~180℃(可选)常温~180℃(可选)
压力精度±0.01MPa±0.01MPa±0.01MPa
温控精度±1.0℃±1.0℃±1.0℃
电源220V, 50/60Hz(可定制110V美日标准)220V, 50/60Hz(可定制110V美日标准)220V, 50/60Hz(可定制110V美日标准)
外形尺寸(W×D×H)510 × 430 × 500 mm610 × 560 × 780 mm610 × 560 × 780 mm
净重95 kg153 kg163 kg

***以上仅为典型型号,我们可以根据客户需求提供个性化解决方案。

多行业解决方案

覆盖六大行业典型材料搅拌脱泡应用


LCD偏光片贴合

小尺寸偏光片OCA光学胶、LCD玻璃基板贴合胶


电子元器件封装

元器件封装胶、芯片包封胶


医疗器械

医用粘接胶、医疗器械贴合胶


LED封装

LED封装胶、荧光粉胶


精细化工

精细化工材料、纳米粉体


新能源材料

新能源材料研发样品、电池浆料小样

全方位设备操作演示视频

直观、清晰、动态感受行星离心与高负压同步除泡的技术魅力

实测效果展示

六种典型材料实测处理效果


浆料+粉料


胶水


氢能材料


胶水


基材+填料


胶+陶瓷粉

实测效果对比

材料加压脱泡前后状态对比

材料类型处理前状态RX4-600处理后
偏光片OCA光学胶胶内气泡多,贴合后透光不均出现发花胶体透明无气泡,贴合后透光均匀
元器件封装胶胶内气泡密集,固化后封装层出现空洞胶体致密无空洞,封装层完整可靠
医用粘接胶胶内有气泡,粘接面缺陷影响生物相容性胶体致密,粘接面完整,生物相容性达标

* 内部实验室测试数据,具体提升幅度因材料配方而异。真实客户案例可联系销售获取。
