加压脱泡机
TEL:18925129293
加压脱泡机 SIE-RX16-2600
超大腔体整件入箱 · 全自动量产级控制安全冗余
超大腔体超大面板整件入箱不用分批 + 全自动微电脑量产级控制支持MES对接
施诺斯SIE-RX16-2600加压脱泡机,超大面板整件入箱。全自动微电脑控制支持MES系统对接,SMC数显压力表精度±0.01MPa,欧姆龙PID温控精度±1.0℃。多重安全冗余含压力容器安全证书、声光电报警、精密过滤器,利用压力及温度去除贴合过程中产生的气泡,增强材料间粘合力。
✓ ISO9001质量体系 ✓ RoHS符合性 ✓ 支持电压定制(110V/220V)
为什么要消除材料中的气泡
材料贴合过程中残留的微气泡会直接影响产品品质
超大面板贴合行业超大面板LCD、大尺寸商显屏、超大触控屏贴合过程中,OCA光学胶面积大气泡多,分批处理增加工序和二次气泡风险,整面板报废损失极高。加压脱泡5230L超大腔体可让超大面板整件入箱一次脱泡到位,不用分批拆分,SMC精准控压保障超大面板全幅面受力均匀,适合超大面板量产贴合脱泡。 | 新能源电池浆料行业超大批量电池浆料中气泡影响涂布均匀性和电池安全性能,量产需大批量稳定脱泡保证每批次品质一致。加压脱泡5230L超大腔体一次处理超大批量电池浆料容器,连续作业时电阻式加热5分钟升到60℃内部温差±3℃,全自动微电脑控制工艺参数可存储复现,适合电池浆料超大批量量产脱泡。 | 半导体封装行业半导体封装胶中气泡导致封装层空洞、芯片潮气侵入失效,超大批量封装需稳定脱泡保障可靠性。加压脱泡三种工作模式可按封装胶特性选择,精密过滤器防止封装材料受到二次污染,5230L大腔体一次处理超大批量封装件,声光电报警保障量产长时间运行安全,适合半导体封装超大批量脱泡。 |
✨ 传统脱泡的困境:超大面板产品体积超出常规设备腔体,只能分批拆分处理,工序增加且二次气泡风险高;超大批量量产需反复分批处理,排队等待时间长影响交期;超大容积压力容器缺乏多重安全冗余系统,超大规模量产安全隐患大,高价值产品设备故障损失极其高昂。
为何选择SIE-RX16-2600
解决超大面板和超大批量量产的容量、管理和安全痛点
5230L超大腔体超大圆柱腔体约5230L,从RX13-1500的1990L到RX16-2600的5230L容量翻倍以上,超大面板和超大批量产品一次入箱处理不用分批。适合超大面板LCD、大尺寸商显屏、超大批量电池浆料、半导体封装件等产品一次脱泡到位,避免分批带来的效率损失和二次气泡风险。 | 全自动量产级微电脑控制微电脑全自动控制,支持MES生产管理系统对接,工艺参数可存储追溯,量产参数一键调用无需人工干预。超大批量量产中,全自动控制减少人为操作误差,MES对接让每批次参数可追溯可管理,满足客户审厂和品质管理要求,量产数据可分析优化。 | 多重安全冗余+整套证书压力容器整套安全证书+声光电报警+精密过滤器+微电脑显示报警内容,多重安全冗余设计。超大容积压力容器安全是重中之重,整套证书和多重报警保障超大规模量产长时间运行安全,减少高价值超大面板和超大批量产品的安全风险。 |
✨ 如果您需要处理超大面板产品、超大批量量产、或对设备安全冗余和自动化有高要求,RX16-2600的超大腔体和量产级控制能满足您的超大规模需求

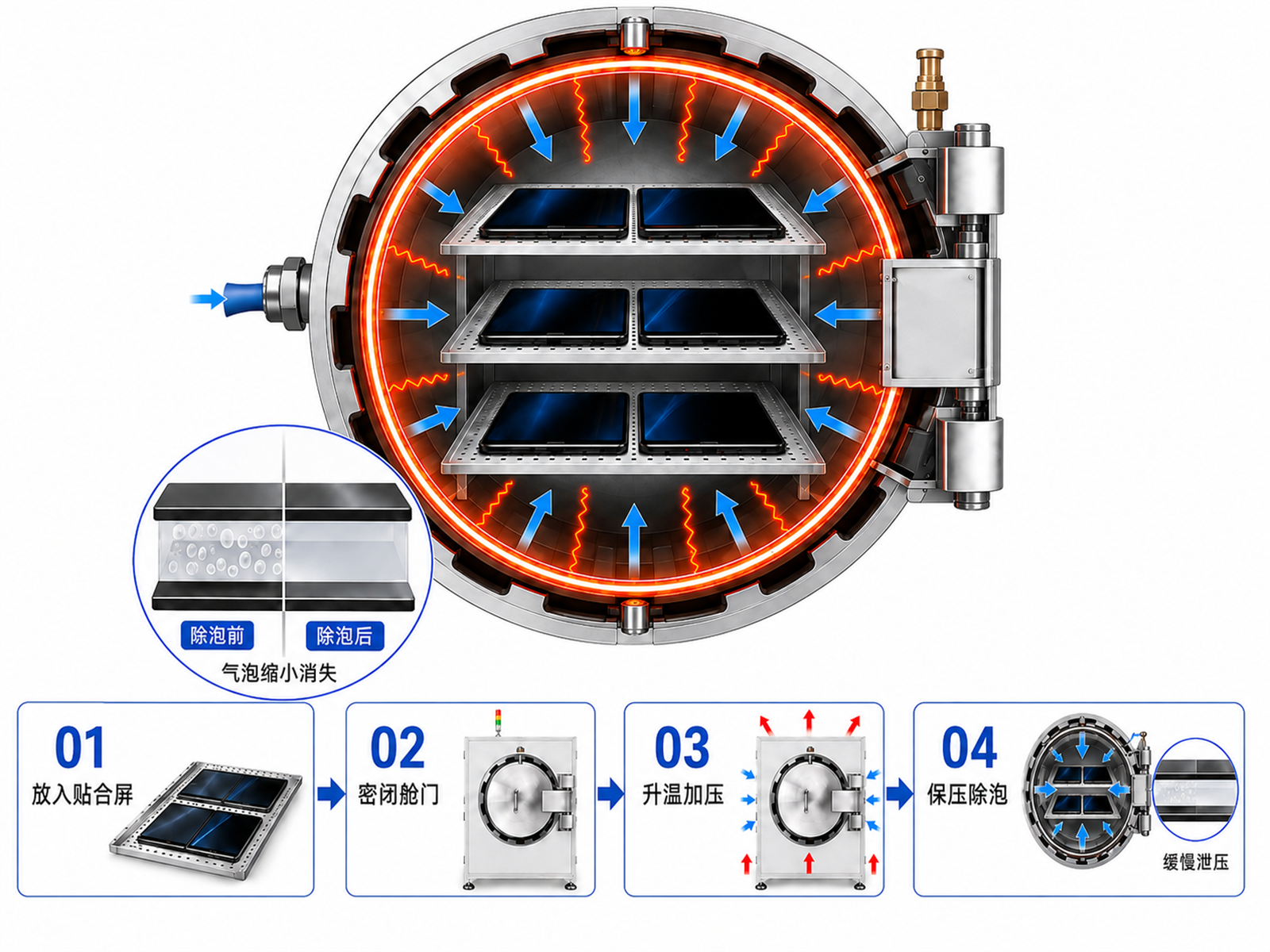

工作原理
利用压力及温度去除贴合过程中产生的气泡,增强不同材料之间的粘合力
第一步:加压升温(三模式可选):根据材料特性选择先加压再升温、加温加压同步或先升温再加压,电阻式加热配合加压建立脱泡环境。 第二步:保压脱泡:恒压恒温保持,压力使贴合面气泡受压收缩溶解,温度降低材料粘度辅助气泡从贴合面排出。 第三步:泄压稳定:缓慢泄压至常压,材料间粘合力增强,贴合面气泡消除。 简单三步:加压升温 → 保压脱泡 → 泄压稳定,消除贴合气泡增强粘合力。 | ![]() |
技术规格参数
完整技术参数一览,支持按需定制
| 设备型号 | SIE-RX16-2600 |
| 工作室尺寸 | φ1600×2600mm(圆柱形) |
| 有效容积 | 约5230L |
| 工作压力 | 0~0.8MPa(标准),0~2.5MPa(可选) |
| 工作温度 | 常温~80℃(标准),常温~180℃(可选) |
| 加热方式 | 电阻式加热 |
| 工作模式 | A.先加压再升温 B.加温加压同步 C.先升温再加压 |
| 控制方式 | 微电脑控制 |
| 罐体材质 | S30408不锈钢或碳钢 |
| 外形尺寸(W×D×H) | 约2000×2900×2600mm(以实物为准) |
| 净重 | 5000 kg |
| 认证 | ISO9001, RoHS 符合性 |
Our Partners
Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide
FAQ - Frequently Asked Questions
Answers to common questions about product performance and everyday process selection
-
What is the working principle of a centrifugal defoaming machine?
Principle of centrifugal defoaming machine: The bubbles are released by the downward principle of gravity.
-
How is the after-sales service?
The company has professional after-sales service personnel, 24-hour dedicated service, and one-on-one technical support to solve your worries.
-
Why choose SIENOX?
There are many reasons for choosing SIENOX, and the following are some of the main reasons:
1. Professionalism: Our team consists of a group of professional individuals with rich experience and knowledge in their respective fields. We not only understand industry trends and best practices, but also provide practical and feasible solutions.
2. Service quality: We focus on customer needs and satisfaction, and are always committed to providing high-quality services. We not only respond quickly to customer needs, but also provide customized services according to their requirements.
3. Reliability: We adhere to the principles of integrity and professionalism, always adhering to commitments and agreements. Our work methods and deliverables comply with industry standards and best practices, enabling our clients to trust us.
4. Innovation: We continuously explore new methods and tools to provide better services and meet customer needs. We encourage innovation and experimentation, and are willing to accept challenges and change.
5. Cost effectiveness: We provide cost-effective services that not only help customers save costs, but also improve efficiency and productivity. We always prioritize the interests of our customers and provide them with the best solutions.
6. Teamwork: We believe in the power and value of teamwork, and our team members support, collaborate, and respect each other. We establish close cooperative relationships with customers, partners, and other stakeholders to achieve common goals.
The above are just some of the reasons for choosing us. We believe there are many other advantages and values that can be provided to customers. If you are looking for a professional, reliable, and high-quality service provider, we look forward to working with you.
-
How does the stirring and defoaming machine work?
The SIENOX stirring and defoaming machine performs defoaming through centrifugal force at revolution and stirring through shear force formed by revolution and rotation,
Assisted by a vacuum pump to extract gas and achieve a vacuum state, removing nanoscale tiny bubbles. No contact with materials, no secondary pollution, and no secondary waste.
-
What is the function of a defoaming machine?
A defoaming machine is a device used to remove bubbles from liquids. Its function is to assist in the liquid mixing, reaction, coating, printing, infusion and other process steps in the production process, avoiding the generation of bubbles and their impact on the final product. In many industrial and laboratory environments, removing bubbles is essential as they may have a negative impact on product quality, such as affecting surface tension and stability. Defoaming machines typically use various techniques such as vibration, ultrasound, centrifugation, etc. to achieve effective bubble removal. It has a wide range of applications, including but not limited to semiconductors, solar energy, optics, biotechnology, materials science, etc.
多型号对比参数表
同系列型号参数对比,助力精准选型
| 设备型号 | SIE-RX10-1800 | SIE-RX13-1500 | SIE-RX16-2600 |
| 工作室尺寸 | φ1000×1800mm | φ1300×1500mm | φ1600×2600mm |
| 有效容积 | 1410L | 1990L | 5230L |
| 压力范围 | 0~2.5MPa(可选) | 0~2.5MPa(可选) | 0~2.5MPa(可选) |
| 温度范围 | 常温~180℃(可选) | 常温~180℃(可选) | 常温~180℃(可选) |
| 压力精度 | ±0.01MPa | ±0.01MPa | ±0.01MPa |
| 温控精度 | ±1.0℃ | ±1.0℃ | ±1.0℃ |
| 电源 | 380V, 50/60Hz(可定制110V美日标准) | 380V, 50/60Hz(可定制110V美日标准) | 380V, 50/60Hz(可定制110V美日标准) |
| 外形尺寸(W×D×H) | 1300×2100×2000mm | 1600×1800×2300mm | 2000×2900×2600mm |
| 净重 | 2000 kg | 3000 kg | 5000 kg |
***以上仅为典型型号,我们可以根据客户需求提供个性化解决方案。
多行业解决方案
覆盖六大行业典型材料搅拌脱泡应用
LCD偏光片贴合小尺寸偏光片OCA光学胶、LCD玻璃基板贴合胶 |
电子元器件封装元器件封装胶、芯片包封胶 |
医疗器械医用粘接胶、医疗器械贴合胶 |
LED封装LED封装胶、荧光粉胶 |
精细化工精细化工材料、纳米粉体 |
新能源材料新能源材料研发样品、电池浆料小样 |
全方位设备操作演示视频
直观、清晰、动态感受行星离心与高负压同步除泡的技术魅力
实测效果展示
六种典型材料实测处理效果
浆料+粉料 |
胶水 |
氢能材料 |
胶水 |
基材+填料 |
胶+陶瓷粉 |
实测效果对比
材料加压脱泡前后状态对比
| 材料类型 | 处理前状态 | SIE-RX16-2600处理后 |
| 偏光片OCA光学胶 | 胶内气泡多,贴合后透光不均出现发花 | 胶体透明无气泡,贴合后透光均匀 |
| 元器件封装胶 | 胶内气泡密集,固化后封装层出现空洞 | 胶体致密无空洞,封装层完整可靠 |
| 医用粘接胶 | 胶内有气泡,粘接面缺陷影响生物相容性 | 胶体致密,粘接面完整,生物相容性达标 |
* 内部实验室测试数据,具体提升幅度因材料配方而异。真实客户案例可联系销售获取。
客户交付与应用案例
扎根制造一线,赋能各大行业标杆产线与国家重点研究机构
锡膏气泡一次搞定!SMT焊接脱泡实测方案 | AB胶气泡全消除,3种配比实测方案 | 导热胶脱泡解决方案 |
