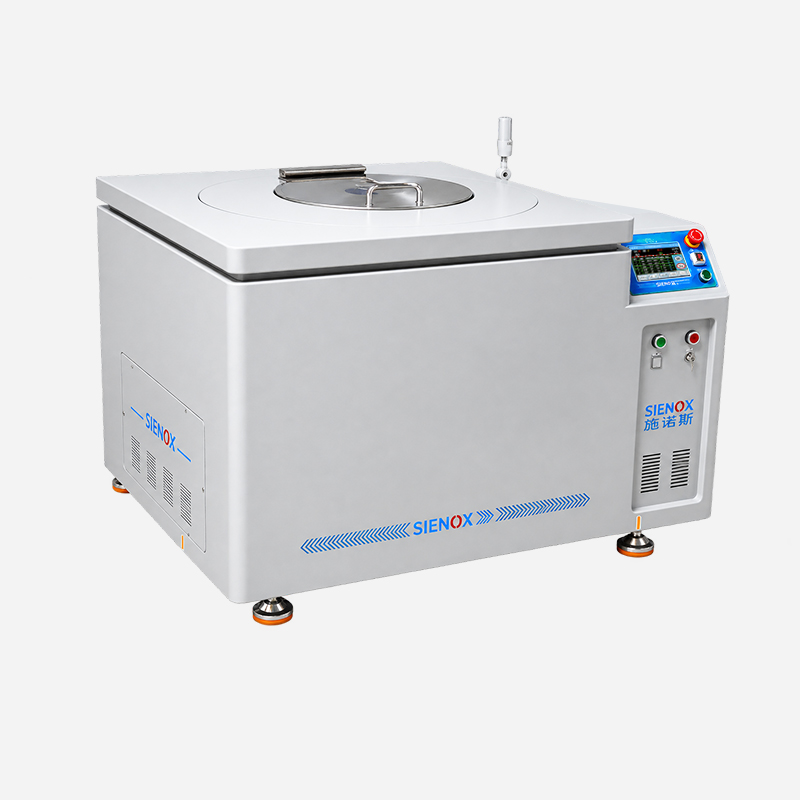

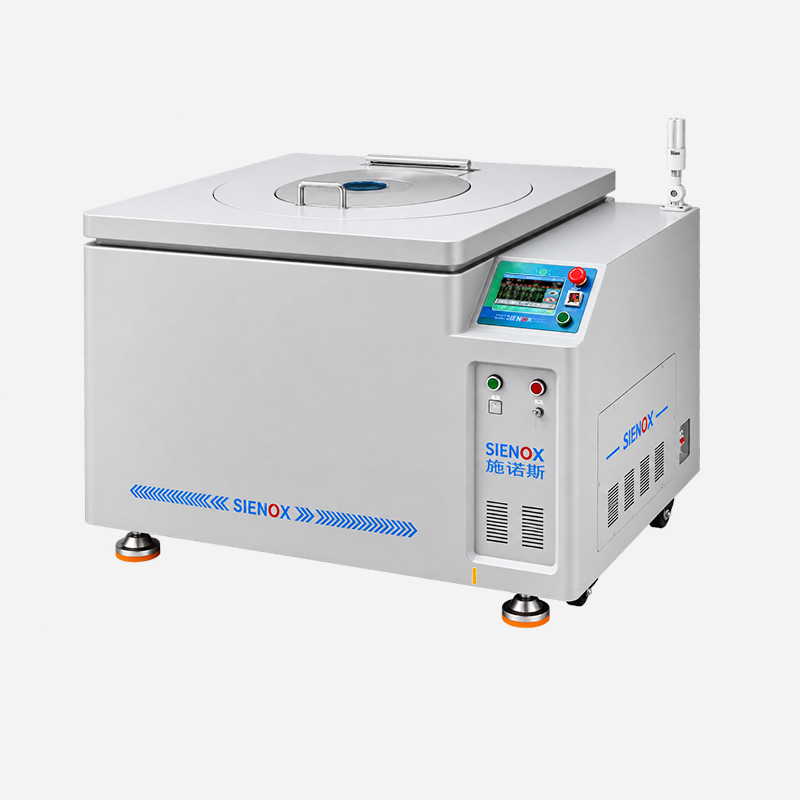

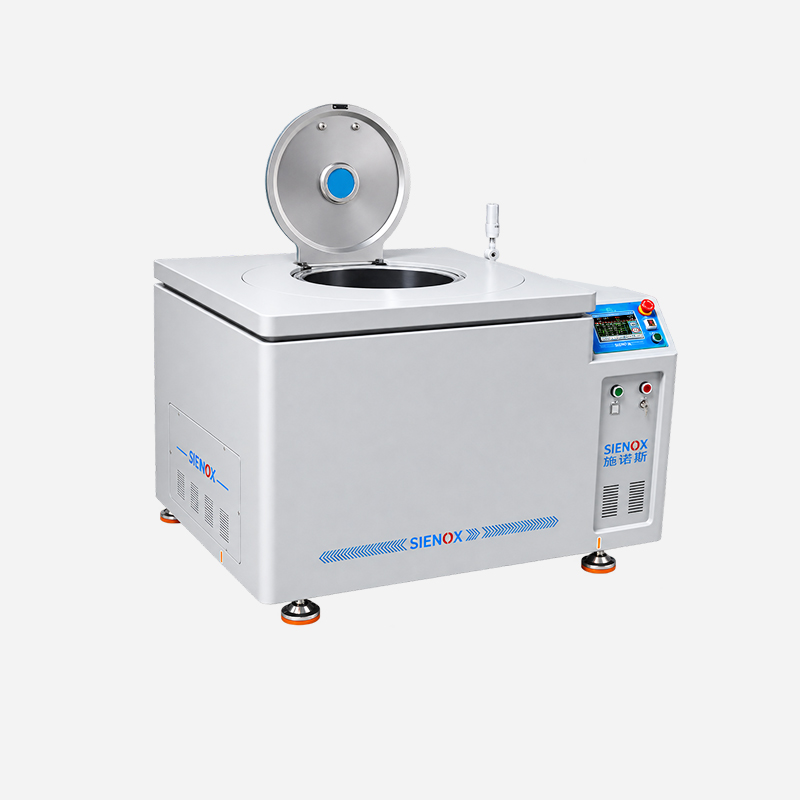

施诺斯大容量行星式搅拌脱泡机 SIE-CV5000


5000mL双杯行星搅拌 · 宽转速域适配多粘度材料灵活量产

5000mL大容量双杯 + 0-1200rpm无级可调 + 100组配方存储

SIE-CV5000是施诺斯CV系列大容量量产设备,5000mL双杯配置配合0-1200rpm宽转速搅拌,适配多种粘度材料的灵活量产需求。设备采用304不锈钢结构,标配安全锁与惯性延时保护,支持真空、温控、MES系统按需扩展。

✓ CE认证 ✓ ISO9001质量体系 ✓ RoHS符合性 ✓ 支持电压定制(110V/220V)

Online Message Free Sample Testing Engineer Hotline: 189-2512-9293

为什么必须消除材料中的微气泡?

材料中残留的微气泡直接影响产品良率与性能稳定性

锂电池制造行业

锂电池正负极浆料中气泡导致涂布面密度不均匀,影响电极层的导电网络和离子传输路径,降低电池容量、循环寿命和安全性能。

合成树脂行业

合成树脂中混入气泡会造成固化后内部气孔和表面瑕疵,降低树脂的透明度、机械强度和耐化学性,影响下游制品的品质一致性。

光电通讯行业

光电通讯封装材料中气泡导致光信号散射和传输损耗,影响光纤连接器、光学透镜的耦合效率和信号稳定性。

✨ 传统脱泡困境: 中高粘度材料手工搅拌混合不均、脱泡不彻底;普通设备转速单一难以适配不同粘度材料;容量不足需多次分批处理,批次间一致性难以保障。

为何选择SIE-CV5000

三大核心专为高粘度材料超大容量量产场景打造

双杯灵活产出

适配中等规模量产节奏;0-30分钟可调运行时间配合100组配方存储,快速切换不同材料工艺,减少换料停机时间。

多转速段材料适配

0-1200rpm无级可调,覆盖中速至中高速宽转速区间,既能低速处理中高粘度浆料避免飞溅,又能提速分散低粘度液体,一台设备适配多种材料工艺需求,降低多设备投资成本。

均衡重载稳定平台

不锈钢箱体,兼顾产能与占地效率;标配安全锁、惯性延时、故障显示等多重保护,微电脑控制系统支持操作权限设置与100组配方存储,适配多班组轮换生产,真空、温控、MES联网均可选配扩展。

✨ 当产量需求在2L至10L之间,或需要一台设备适配多种粘度材料的灵活量产时,SIE-CV5000是CV系列中5L级别的均衡选择

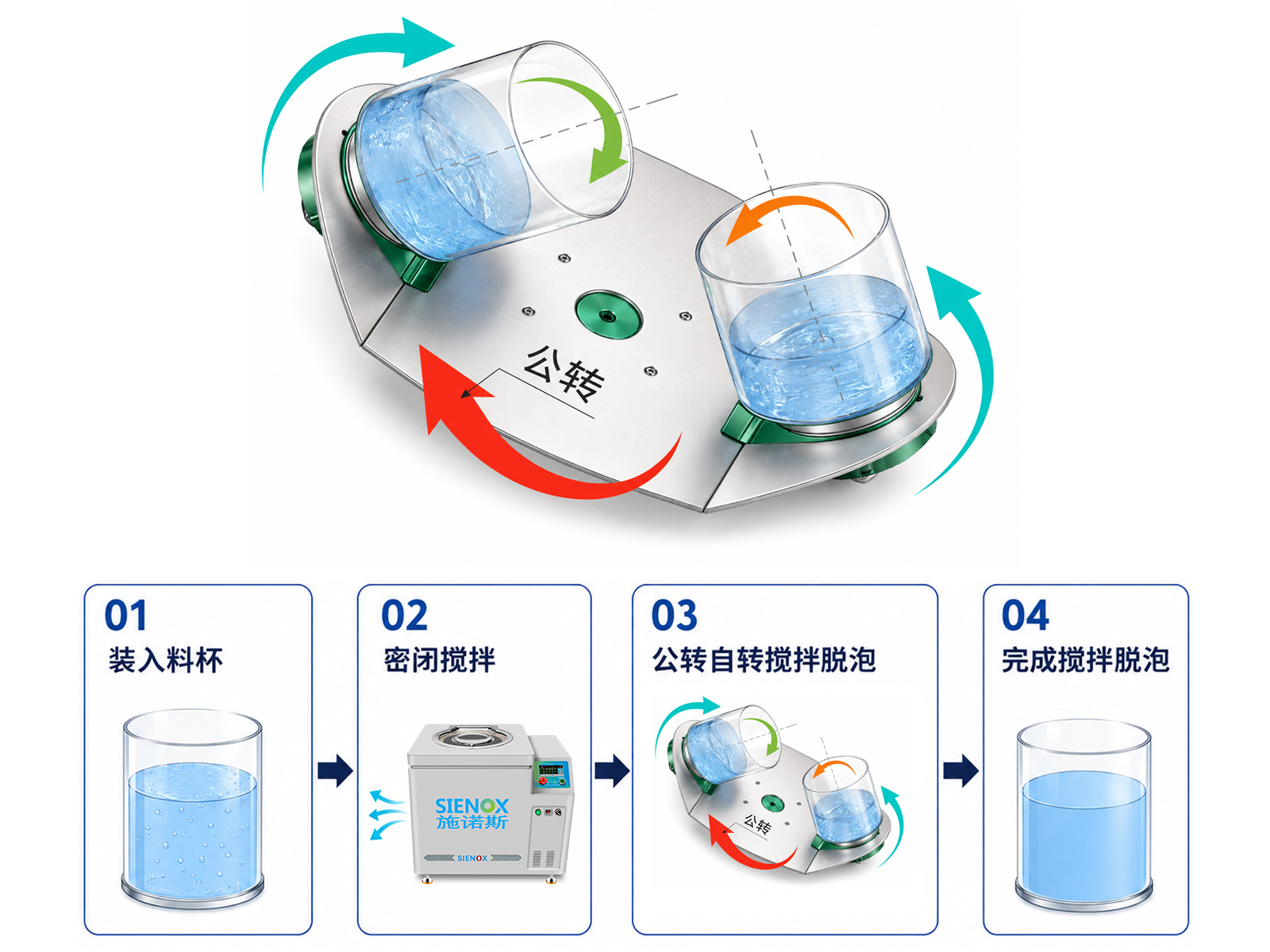

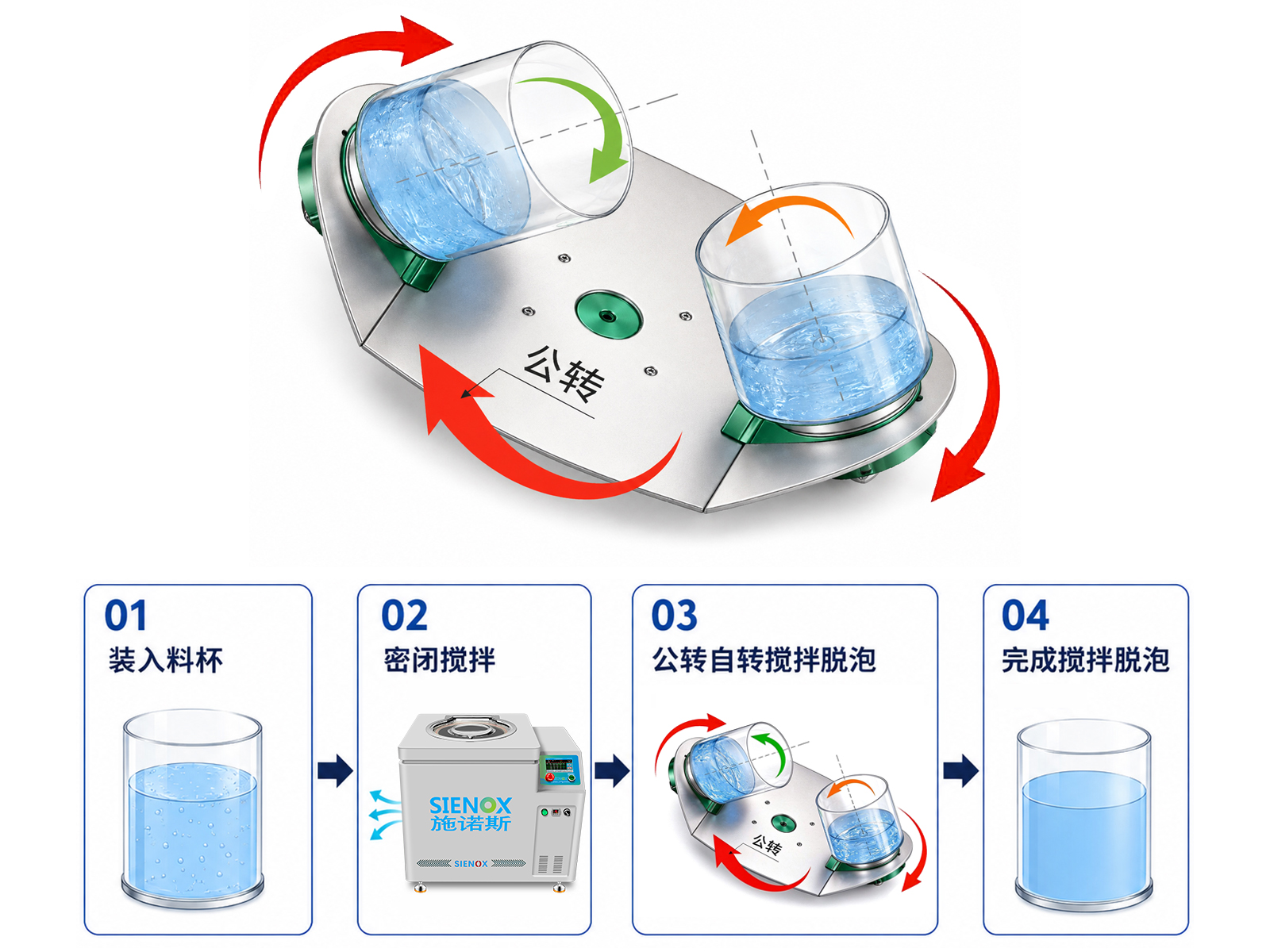

工作原理

公转与自转双动力同步运行,宽转速域适配多粘度材料高效混合与脱泡

第一步:公转混合
公转产生离心力,推动物料在釜体内全方位翻转流动,0-1200rpm宽转速区间适配不同粘度材料的混合需求,实现宏观层面的均匀混合。

第二步:自转分散
自转产生剪切力,对物料进行微观层面的持续分散,打破团聚颗粒,消除深层微小气泡,保障大批量物料的处理一致性。


公转与自转同步运行,物料在密闭容器内完成"混合→分散→脱泡"全流程。双杯设计使两组物料同步处理,提升生产效率。


技术规格参数

完整技术参数一览,支持按需定制

设备型号SIE-CV5000
混合容量0–5000 mL(标配容器)* 可定制更大容积
容器类型试管 / 罐 / 杯;支持注射器、卡式瓶适配器
容器数量1 或 2 罐(用户自选)
最高转速0 – 1200 RPM(无级可调)
公转/自转比固定速比
真空度选配:–98 kPa / –100 kPa
控制系统触控屏,可存储100组配方参数
电源220V, 50/60Hz(可定制110V美日标准)
外形尺寸(W×D×H)1100×780×880mm
净重约225kg
认证 CE, ISO9001, RoHS 符合性

Our Partners

Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide

Partner Showcase

FAQ - Frequently Asked Questions

Answers to common questions about product performance and everyday process selection

  • What is the working principle of a centrifugal defoaming machine?

    Principle of centrifugal defoaming machine: The bubbles are released by the downward principle of gravity.

  • How is the after-sales service?

    The company has professional after-sales service personnel, 24-hour dedicated service, and one-on-one technical support to solve your worries.

  • Why choose SIENOX?

    There are many reasons for choosing SIENOX, and the following are some of the main reasons:

    1. Professionalism: Our team consists of a group of professional individuals with rich experience and knowledge in their respective fields. We not only understand industry trends and best practices, but also provide practical and feasible solutions.

    2. Service quality: We focus on customer needs and satisfaction, and are always committed to providing high-quality services. We not only respond quickly to customer needs, but also provide customized services according to their requirements.

    3. Reliability: We adhere to the principles of integrity and professionalism, always adhering to commitments and agreements. Our work methods and deliverables comply with industry standards and best practices, enabling our clients to trust us.

    4. Innovation: We continuously explore new methods and tools to provide better services and meet customer needs. We encourage innovation and experimentation, and are willing to accept challenges and change.

    5. Cost effectiveness: We provide cost-effective services that not only help customers save costs, but also improve efficiency and productivity. We always prioritize the interests of our customers and provide them with the best solutions.

    6. Teamwork: We believe in the power and value of teamwork, and our team members support, collaborate, and respect each other. We establish close cooperative relationships with customers, partners, and other stakeholders to achieve common goals.

    The above are just some of the reasons for choosing us. We believe there are many other advantages and values that can be provided to customers. If you are looking for a professional, reliable, and high-quality service provider, we look forward to working with you.


  • How does the stirring and defoaming machine work?

    The SIENOX stirring and defoaming machine performs defoaming through centrifugal force at revolution and stirring through shear force formed by revolution and rotation,

    Assisted by a vacuum pump to extract gas and achieve a vacuum state, removing nanoscale tiny bubbles. No contact with materials, no secondary pollution, and no secondary waste.

  • What is the function of a defoaming machine?

    A defoaming machine is a device used to remove bubbles from liquids. Its function is to assist in the liquid mixing, reaction, coating, printing, infusion and other process steps in the production process, avoiding the generation of bubbles and their impact on the final product. In many industrial and laboratory environments, removing bubbles is essential as they may have a negative impact on product quality, such as affecting surface tension and stability. Defoaming machines typically use various techniques such as vibration, ultrasound, centrifugation, etc. to achieve effective bubble removal. It has a wide range of applications, including but not limited to semiconductors, solar energy, optics, biotechnology, materials science, etc.

技术指标一览表

同系列型号参数对比,助力精准选型

设备型号SIE-CV5000SIE-CV10LSIE-CV20L
混合容量0–5000 mL(标配容器)* 可定制0–10000 mL(标配容器)* 可定制0–20000 mL(标配容器)* 可定制
容器类型试管 / 罐 / 杯;支持注射器、卡式瓶适配器试管 / 罐 / 杯;支持注射器、卡式瓶适配器试管 / 罐 / 杯;支持注射器、卡式瓶适配器
容器数量1  或 2 罐(用户自选)1  或 2 罐(用户自选)1  或 2 罐(用户自选)
最高转速0 – 1200 RPM(无级可调)0 – 800 RPM(无级可调)0 – 600 RPM(无级可调)
公转/自转比固定速比固定速比固定速比
真空度选配:–98 kPa / –100 kPa选配:–98 kPa / –100 kPa选配:–98 kPa / –100 kPa
控制系统触控屏,可存储100组配方参数触控屏,可存储100组配方参数触控屏,可存储100组配方参数
电源220V, 50/60Hz(可定制110V美日标准)220V, 50/60Hz(可定制110V美日标准)220V, 50/60Hz(可定制110V美日标准)
外形尺寸(W×D×H)1100 × 780 × 880 mm1100 × 780 × 880 mm1100 × 780 × 880 mm
净重225 kg225 kg225 kg
认证CECECE

***以上仅为典型型号,施诺斯可根据客户需求提供个性化定制方案。咨询选型:189-2512-9293

多行业解决方案

覆盖六大行业典型材料搅拌脱泡应用


锂离子电池电极材料

正极浆料、负极浆料


合成树脂材料

环氧树脂、酚醛树脂、不饱和聚酯


光电通讯材料

光纤涂层胶、光学贴合胶、显示封装胶


医用导管材料

医用导管胶、医用传感器封装胶


涂料化工

工业烤漆、粉末涂料


工业密封胶

聚硫密封胶、丁基密封胶

全方位设备操作演示视频

直观、清晰、动态感受行星离心与高负压同步除泡的技术魅力

脱泡工艺实测效果

六种典型材料实测处理效果


膏状材料


胶水+粉体


高分子材料


医药凝胶


银浆材料


电池浆料



实测数据对比

材料脱泡前后效果对比

材料类型
处理前状态
CV5000处理后
锂电池正极浆料涂布面密度偏差±8%涂布面密度偏差±2%
酚醛树脂固化后气孔多,透明度低固化后致密透明
光纤涂层胶涂层厚度偏差±3μm涂层厚度偏差±0.5μm

* 内部实验室测试数据,具体提升幅度因材料配方而异。真实客户案例可联系销售获取。
