搅拌脱泡机

TEL:18925129293

SIENOX大容量行星式搅拌脱泡机 SIE-CV2000


2000mL超大容量行星搅拌 · 工业级重载机身适配连续量产

2000mL大容量双杯 + 0-2000rpm无级可调 + 100组配方存储

SIE-CV2000是施诺斯搅拌脱泡机系列中大容量级别的量产级设备,2000mL双杯配置配合225kg重载机身,专为工业连续生产设计。设备采用304不锈钢结构,标配安全锁与惯性延时保护,支持真空、温控、MES系统按需扩展。

✓ CE认证 ✓ ISO9001质量体系 ✓ RoHS符合性 ✓ 支持电压定制(110V/220V)



Online Message Free Sample Testing Engineer Hotline: 189-2512-9293

为什么必须消除材料中的微气泡?

材料中残留的微气泡直接影响产品良率与性能稳定性

建筑密封材料行业

密封胶施工后内部残留气泡会导致固化后出现气孔、开裂,降低密封性能和附着力,影响建筑工程的防水密封效果和使用寿命。


工业防腐涂料行业

涂料中混入气泡会造成涂膜表面针孔、橘皮等缺陷,降低防腐涂层致密性和附着力,缩短防护周期,增加维护成本。


陶瓷量产行业

陶瓷浆料中气泡会导致烧结后制品内部气孔、表面瑕疵,降低成品密度和机械强度,影响批量产品的一致性和合格率。


✨ 传统脱泡困境: 人工搅拌效率低、脱泡不彻底;静置脱泡耗时长、难以满足量产节奏;普通搅拌设备容量有限,无法适配大批量连续生产需求。

为何选择SIE-CV2000

三大核心专为工业级大容量量产场景打造

超大容量批量处理

2000mL双杯配置,单次处理量是1000mL机型的两倍,配合0-30分钟可调运行时间,适配大批量物料的连续处理节奏,减少换料停机频率,提升产线吞吐效率。


工业级重载结构

不锈钢箱体,耐腐蚀、耐磨损,适配工业生产环境长期运行;标配安全锁、惯性延时、故障显示等多重保护装置,保障操作安全与设备稳定性。


多班组量产管控

微电脑控制系统支持操作权限设置,适配多人轮班生产管理;100组配方参数存储实现快速换线,故障显示功能便于及时排查;真空脱泡、温控、MES联网系统均可选配,按实际工艺需求灵活扩展。


✨ 当产量需求超过1000mL级别,或需要工业级连续生产配置时,SIE-CV2000是搅拌脱泡机系列中大容量级别、扩展性强的选择。

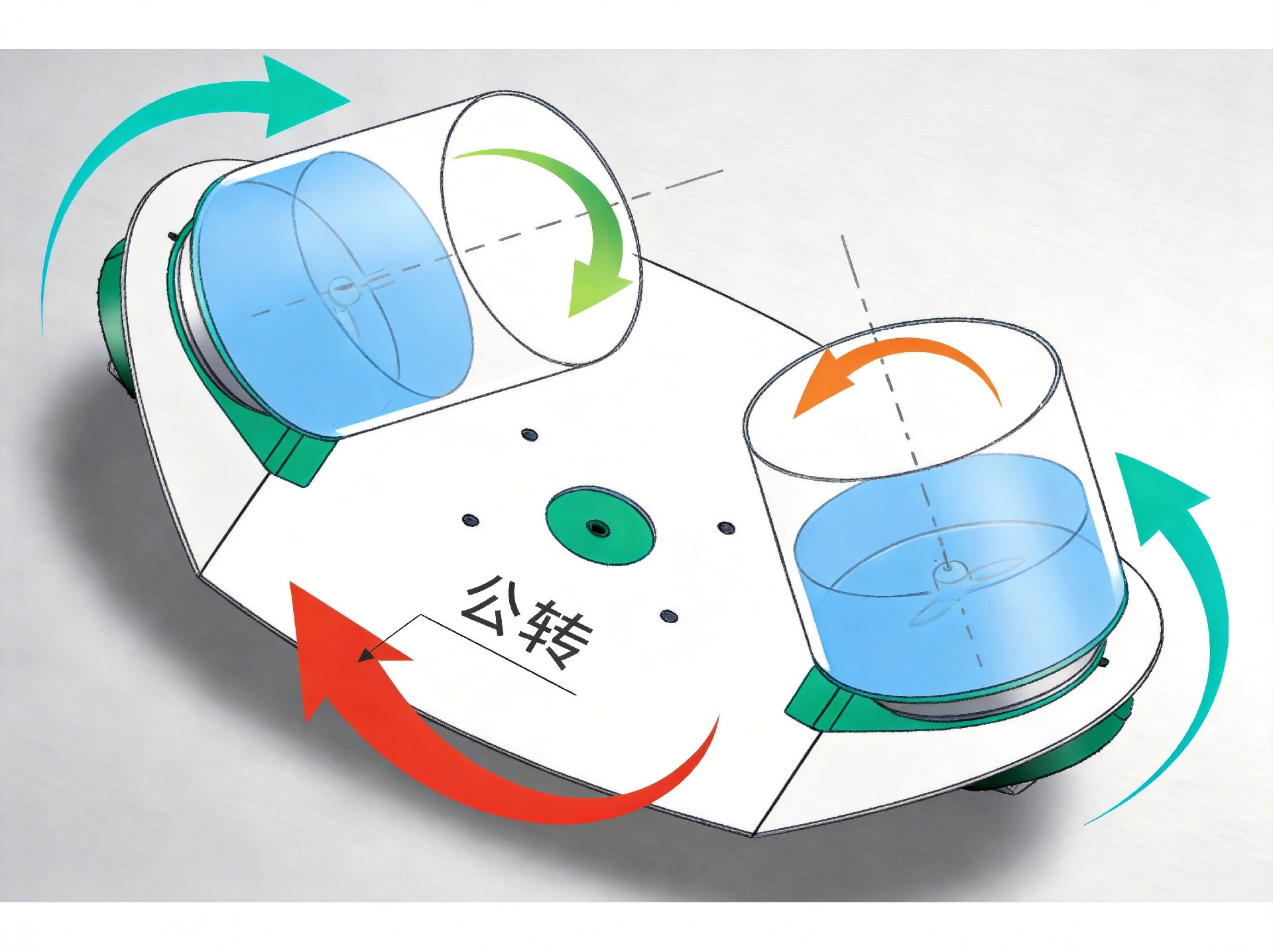

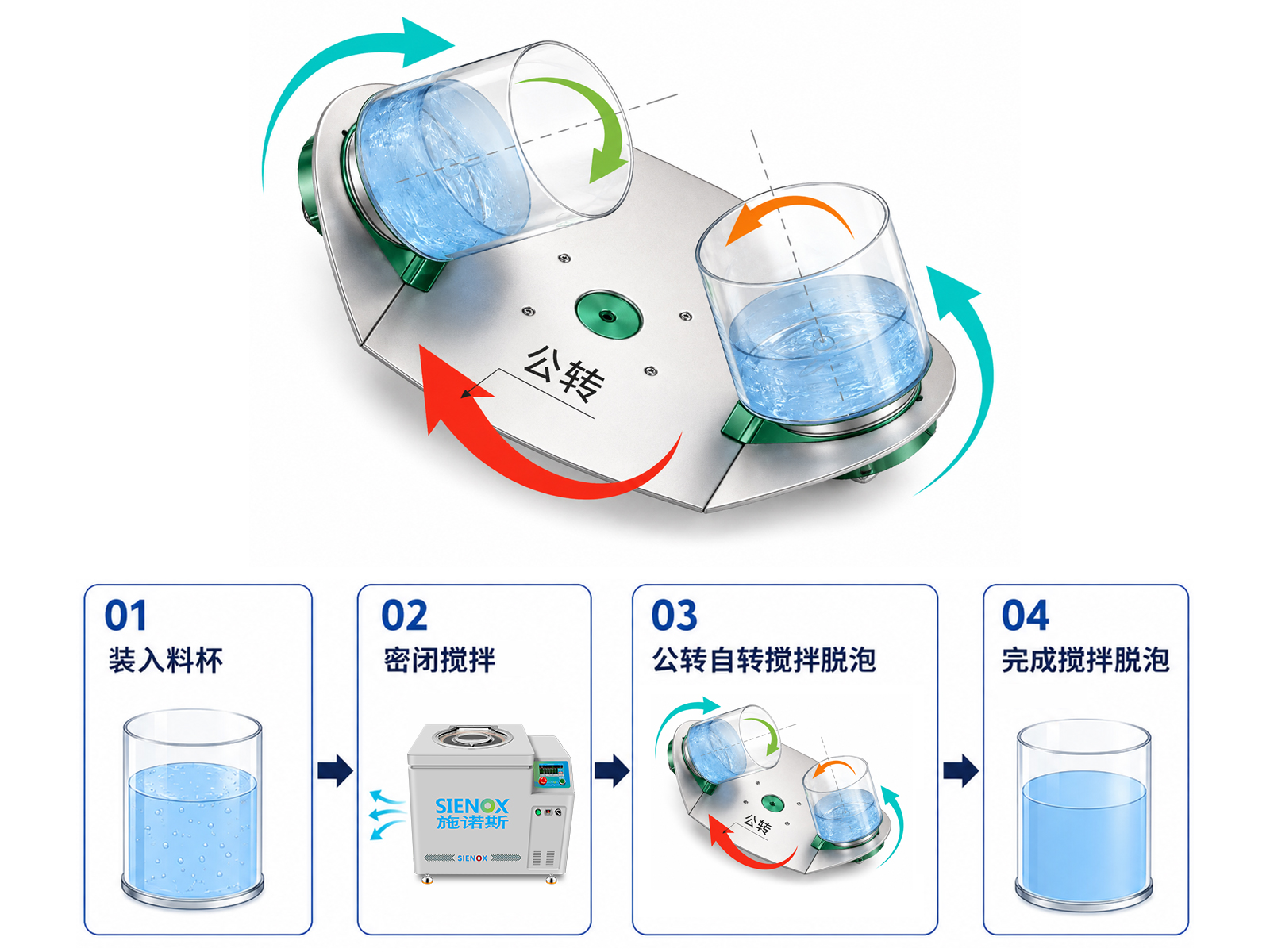

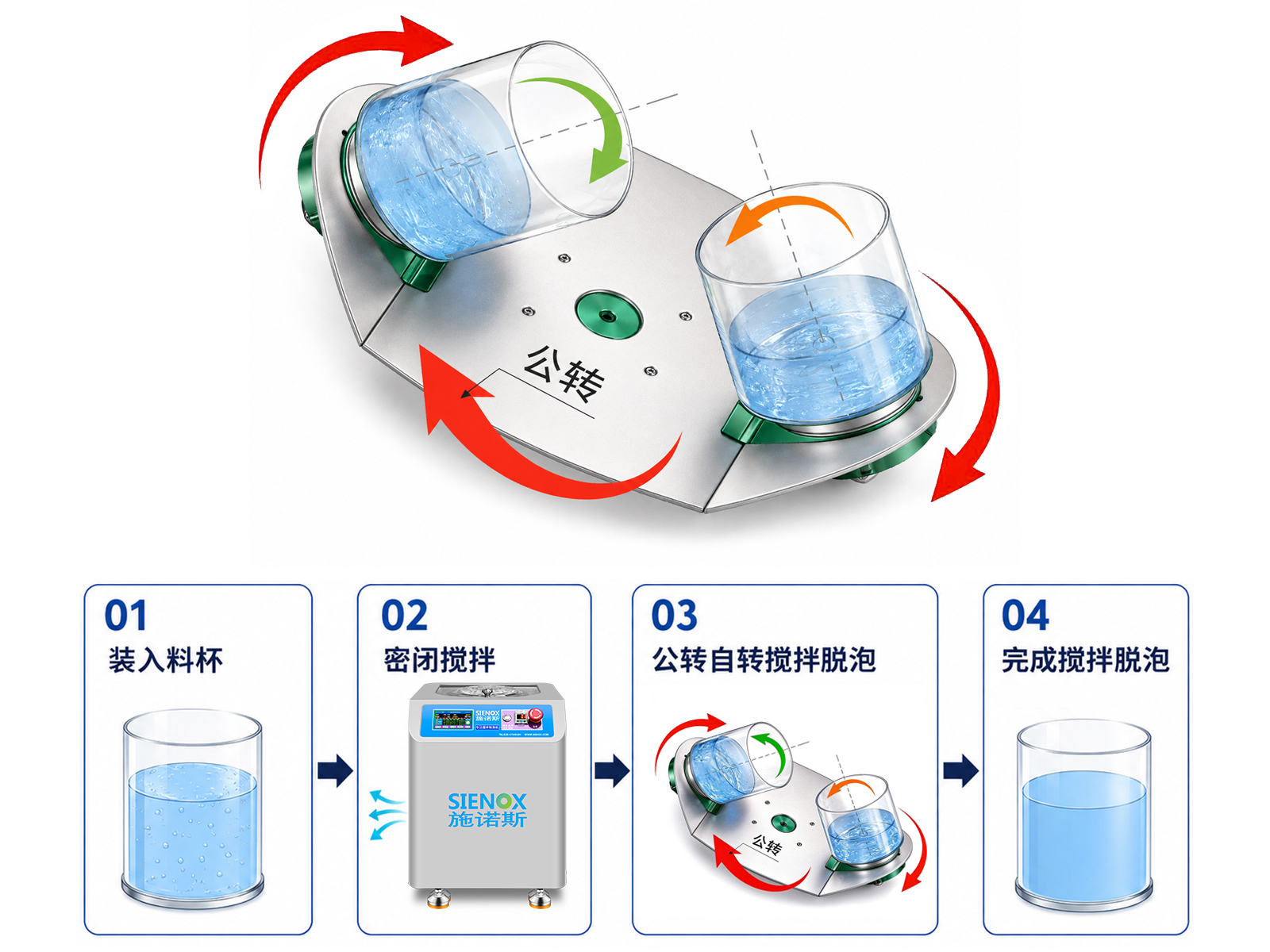

工作原理

公转与自转双动力同步运行,大容量釜体内实现高效混合与脱泡

第一步:公转混合

公转产生强大离心力,推动物料在釜体内全方位翻转流动,实现宏观层面的均匀混合,大容量物料也能充分交融。

第二步:自转分散

自转产生剪切力,对物料进行微观层面的高强度分散,打破团聚颗粒,消除纳米级微小气泡,保障大批量物料的处理一致性。



公转与自转同步运行,物料在密闭容器内完成"混合→分散→脱泡"全流程。双杯设计使两组物料同步处理,提升生产效率。



技术规格参数

完整技术参数一览,支持按需定制

设备型号SIE-CV2000
混合容量0–2000 mL(标配容器)* 可定制更大容积
容器类型试管 / 罐 / 杯;支持注射器、卡式瓶适配器
容器数量1 或 2 罐(用户自选)
最高转速0 – 2000 RPM(无级可调)
公转/自转比固定速比
真空度选配:–98 kPa / –100 kPa
控制系统触控屏,可存储100组配方参数
电源220V, 50/60Hz(可定制110V美日标准)
外形尺寸(W×D×H)1100×780×880mm
净重约225kg
认证 CE, ISO9001, RoHS 符合性

Our Partners

Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide

Partner Showcase

FAQ - Frequently Asked Questions

Answers to common questions about product performance and everyday process selection

  • What is the working principle of a centrifugal defoaming machine?

    Principle of centrifugal defoaming machine: The bubbles are released by the downward principle of gravity.

  • How is the after-sales service?

    The company has professional after-sales service personnel, 24-hour dedicated service, and one-on-one technical support to solve your worries.

  • Why choose SIENOX?

    There are many reasons for choosing SIENOX, and the following are some of the main reasons:

    1. Professionalism: Our team consists of a group of professional individuals with rich experience and knowledge in their respective fields. We not only understand industry trends and best practices, but also provide practical and feasible solutions.

    2. Service quality: We focus on customer needs and satisfaction, and are always committed to providing high-quality services. We not only respond quickly to customer needs, but also provide customized services according to their requirements.

    3. Reliability: We adhere to the principles of integrity and professionalism, always adhering to commitments and agreements. Our work methods and deliverables comply with industry standards and best practices, enabling our clients to trust us.

    4. Innovation: We continuously explore new methods and tools to provide better services and meet customer needs. We encourage innovation and experimentation, and are willing to accept challenges and change.

    5. Cost effectiveness: We provide cost-effective services that not only help customers save costs, but also improve efficiency and productivity. We always prioritize the interests of our customers and provide them with the best solutions.

    6. Teamwork: We believe in the power and value of teamwork, and our team members support, collaborate, and respect each other. We establish close cooperative relationships with customers, partners, and other stakeholders to achieve common goals.

    The above are just some of the reasons for choosing us. We believe there are many other advantages and values that can be provided to customers. If you are looking for a professional, reliable, and high-quality service provider, we look forward to working with you.


  • How does the stirring and defoaming machine work?

    The SIENOX stirring and defoaming machine performs defoaming through centrifugal force at revolution and stirring through shear force formed by revolution and rotation,

    Assisted by a vacuum pump to extract gas and achieve a vacuum state, removing nanoscale tiny bubbles. No contact with materials, no secondary pollution, and no secondary waste.

  • What is the function of a defoaming machine?

    A defoaming machine is a device used to remove bubbles from liquids. Its function is to assist in the liquid mixing, reaction, coating, printing, infusion and other process steps in the production process, avoiding the generation of bubbles and their impact on the final product. In many industrial and laboratory environments, removing bubbles is essential as they may have a negative impact on product quality, such as affecting surface tension and stability. Defoaming machines typically use various techniques such as vibration, ultrasound, centrifugation, etc. to achieve effective bubble removal. It has a wide range of applications, including but not limited to semiconductors, solar energy, optics, biotechnology, materials science, etc.

技术指标一览表

同系列型号参数对比,助力精准选型

设备型号SIE-CV600SIE-CV1000SIE-CV2000
混合容量0–500 mL(标配容器)* 可定制0–1000 mL(标配容器)* 可定制0–2000 mL(标配容器)* 可定制
容器类型试管 / 罐 / 杯;支持注射器、卡式瓶适配器试管 / 罐 / 杯;支持注射器、卡式瓶适配器试管 / 罐 / 杯;支持注射器、卡式瓶适配器
容器数量1  或 2 罐(用户自选)1  或 2 罐(用户自选)1  或 2 罐(用户自选)
最高转速0 – 2000 RPM(无级可调)0 – 2000 RPM(无级可调)0 – 2000 RPM(无级可调)
公转/自转比固定速比固定速比固定速比
真空度选配:–98 kPa / –100 kPa选配:–98 kPa / –100 kPa选配:–98 kPa / –100 kPa
控制系统触控屏,可存储100组配方参数触控屏,可存储100组配方参数触控屏,可存储100组配方参数
电源220V, 50/60Hz(可定制110V美日标准)220V, 50/60Hz(可定制110V美日标准)220V, 50/60Hz(可定制110V美日标准)
外形尺寸(W×D×H)610 × 560 × 780 mm610 × 560 × 780 mm1100 × 780 × 880 mm
净重165 kg115kg225 kg
认证CECECE

***以上仅为典型型号,施诺斯可根据客户需求提供个性化定制方案。咨询选型:189-2512-9293


多行业解决方案

覆盖六大行业典型材料搅拌脱泡应用


建筑密封材料

聚氨酯密封胶、硅酮密封胶


工业防腐涂料

环氧防腐漆、丙烯酸乳液


耐火材料行业

耐火浇注料浆料、氧化铝悬浮液


船舶制造涂装

船底防污漆、环氧底漆


金属粉末冶金

金属浆料、碳素浆料


橡胶塑料制品

聚酯树脂、橡胶混炼胶

全方位设备操作演示视频

直观、清晰、动态感受行星离心与高负压同步除泡的技术魅力

脱泡工艺实测效果

六种典型材料实测处理效果


膏状材料


胶水+粉体


高分子材料


医药凝胶


银浆材料


电池浆料



实测数据对比

材料脱泡前后效果对比

材料类型
处理前状态
CV2000处理后
聚氨酯密封胶
气孔率约8%,附着力不足
气孔率<1%,附着力提升35%
环氧地坪漆
涂膜针孔密布,光泽度低
表面平整无针孔,光泽度提升
陶瓷釉料
烧结后气孔多,成品率82%
烧结后致密,成品率提升至96%

* 内部实验室测试数据,具体提升幅度因材料配方而异。真实客户案例可联系销售获取。

客户交付与应用案例

扎根制造一线,赋能各大行业标杆产线与国家重点研究机构



粉体与流体搅拌脱泡解决方案



AB结构胶搅拌脱泡解决方案



高粘度胶体与荧光粉材料搅拌脱泡解决方案
