加压脱泡机

TEL:18925129293

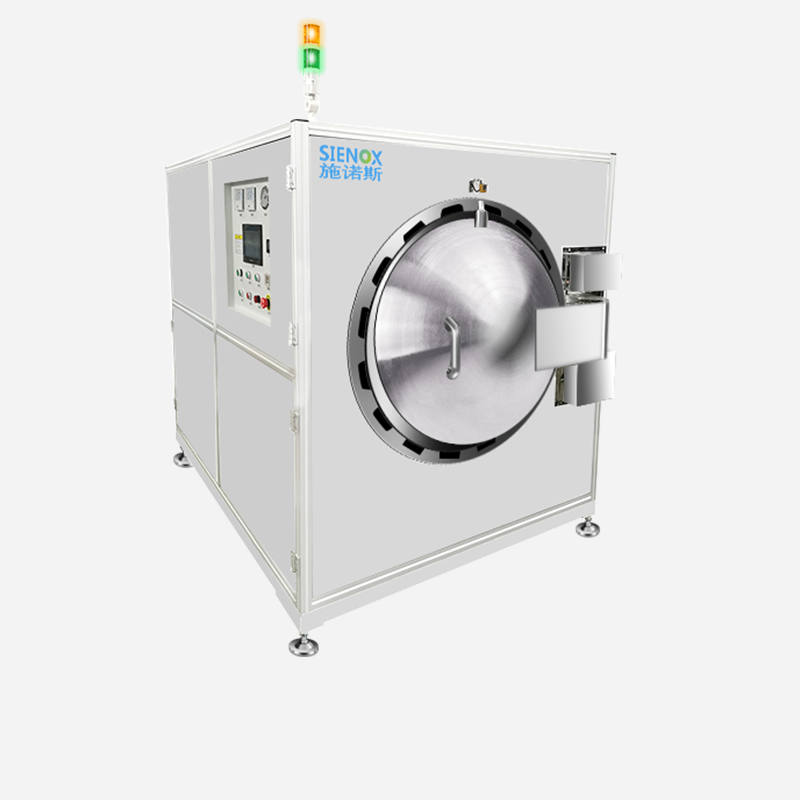

加压脱泡机 SIE-RX8-1200


三模式可编程工艺存储 · 中批量生产换线快速调用

三种工作模式微电脑编程存储 + 600L腔体快速升压泄压高效周转

施诺斯SIE-RX8-1200加压脱泡机,φ800×1200mm圆柱腔体约600L,三种工作模式微电脑可编程。SMC数显压力表精度±0.01MPa,欧姆龙PID温控精度±1.0℃。5分钟升压至0.6MPa,2-3分钟泄压,单周期35-40分钟,利用压力及温度去除贴合过程中产生的气泡,增强材料间粘合力。

✓ ISO9001质量体系 ✓ RoHS符合性 ✓ 支持电压定制(110V/220V)

Online Message Free Sample Testing Engineer Hotline: 189-2512-9293

为什么要消除材料中的气泡

材料贴合过程中残留的微气泡会直接影响产品品质

TFT液晶基板贴合行业

TFT液晶玻璃基板与偏光片贴合过程中,OCA光学胶中残留气泡导致显示不良、漏光、色彩不均。加压脱泡通过压力使贴合面气泡受压收缩溶解,配合温度降低OCA胶粘度辅助气泡排出,φ800腔体适合中尺寸TFT液晶基板中批量贴合脱泡,三模式可编程适配不同规格基板工艺参数。

OCA光学胶贴合行业

OCA光学胶贴合过程中气泡导致透光率下降、光学性能不稳定,中批量多品种生产需频繁切换工艺参数。加压脱泡微电脑可编程存储多组工艺参数,换线时一键调用,三种工作模式按OCA胶型号选择,适合中批量多品种OCA光学胶贴合脱泡,换线效率高工艺可追溯。

新能源材料行业

新能源材料如电池浆料、导电银胶中气泡影响导电性能和涂布均匀性,中批量生产需稳定脱泡保证材料性能。加压脱泡SMC精准控压配合欧姆龙PID温控,压力温度参数稳定可复现,精密过滤器防止材料二次污染,适合中批量新能源材料加压脱泡生产。

✨ 传统脱泡的困境:中批量多品种生产需频繁换线,普通设备工艺参数无法存储,每次换线都要重新调试耗时长;压力控制不够精准,不同批次压力波动导致脱泡效果不一致;缺乏精密过滤和安全证书,材料污染风险高,安全生产无保障。

为何选择SIE-RX8-1200

从三模式可编程、快速高效周转、安全洁净保障三个维度,解决中批量多品种生产的效率与品质痛点

三模式工艺可编程

三种工作模式(先加压再升温/加温加压同步/先升温再加压)微电脑可编程,多组工艺参数可存储。中批量多品种生产换线时,一键调用对应工艺参数,无需重新调试,换线时间从小时级缩短到分钟级,生产效率大幅提升。

快速升压泄压高效周转

5分钟升压至0.6MPa,2-3分钟泄压,600L腔体单周期35-40分钟,有效脱泡时间15-30分钟。φ800腔体装载量适中,单批处理量满足中批量生产需求,快速升压泄压缩短等待时间,单位时间产能高。

精密过滤器防污染

进气经精密过滤器过滤后再进入腔体,防止空气中灰尘杂质污染试制样品。研发试制阶段样品价值高数量少,一次污染可能浪费整个批次,精密过滤保障试制环境洁净,提高试制成功率。

✨ 如果您的中批量生产需频繁换线、对工艺参数存储和安全有要求,RX8-1200的三模式可编程和快速周转让您高效生产

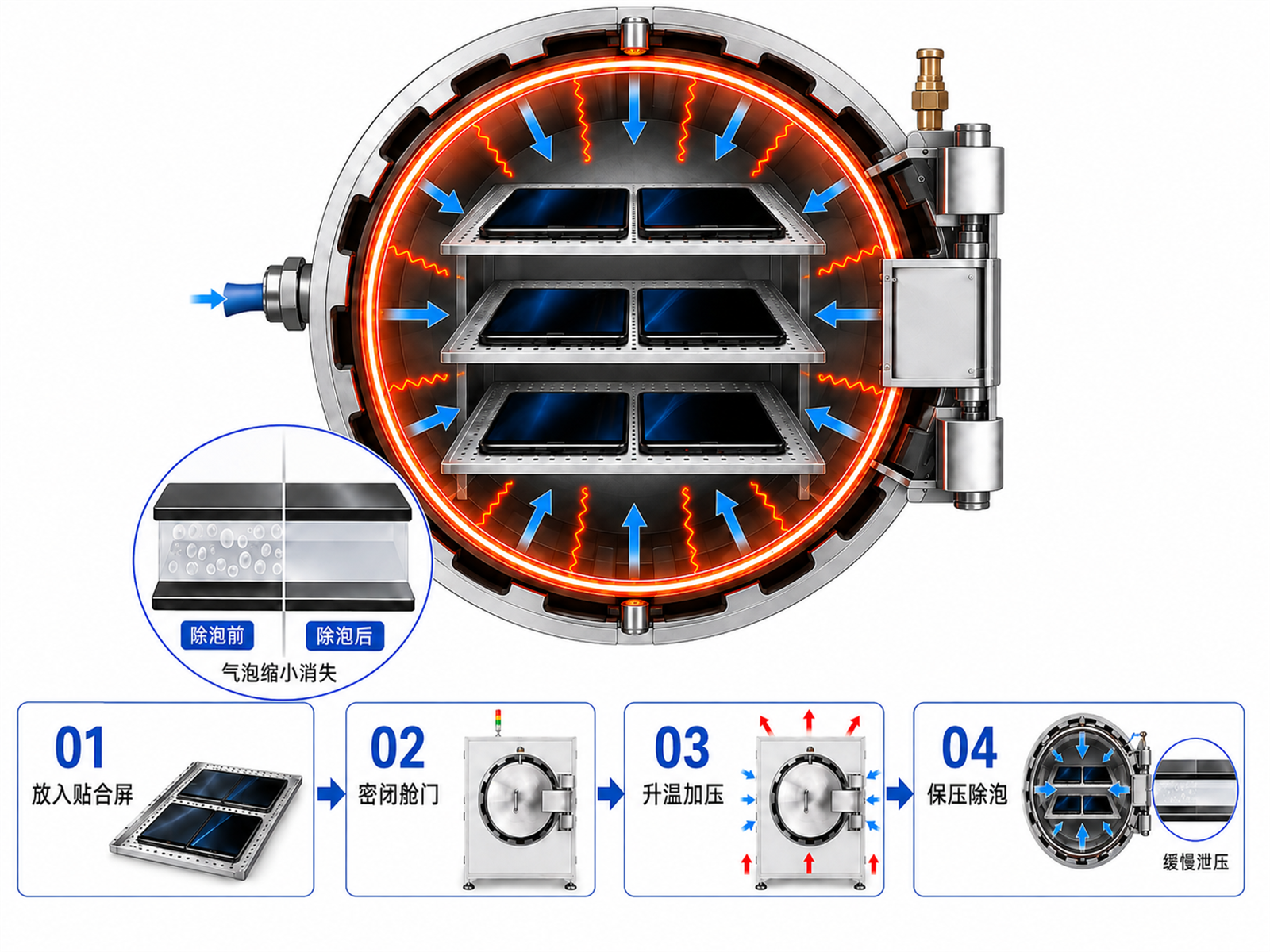

工作原理

利用压力及温度去除贴合过程中产生的气泡,增强不同材料之间的粘合力

第一步:加压升温(三模式可选):根据材料特性选择先加压再升温、加温加压同步或先升温再加压,电阻式加热配合加压建立脱泡环境。

第二步:保压脱泡:恒压恒温保持,压力使贴合面气泡受压收缩溶解,温度降低材料粘度辅助气泡从贴合面排出。

第三步:泄压稳定:缓慢泄压至常压,材料间粘合力增强,贴合面气泡消除。


简单三步:加压升温 → 保压脱泡 → 泄压稳定,消除贴合气泡增强粘合力。


技术规格参数

完整技术参数一览,支持按需定制

设备型号SIE-RX8-1200
工作室尺寸φ800×1200mm(圆柱形)
有效容积约600L
工作压力0~0.8MPa(标准),0~2.5MPa(可选)
工作温度常温~80℃(标准),常温~180℃(可选)
加热方式电阻式加热
工作模式A.先加压再升温 B.加温加压同步 C.先升温再加压
控制方式微电脑控制
罐体材质S30408不锈钢或碳钢
外形尺寸(W×D×H)约1100×1500×1800mm(以实物为准)
净重1000 kg
认证 ISO9001, RoHS 符合性

Our Partners

Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide

Partner Showcase

FAQ - Frequently Asked Questions

Answers to common questions about product performance and everyday process selection

  • What is the working principle of a centrifugal defoaming machine?

    Principle of centrifugal defoaming machine: The bubbles are released by the downward principle of gravity.

  • How is the after-sales service?

    The company has professional after-sales service personnel, 24-hour dedicated service, and one-on-one technical support to solve your worries.

  • Why choose SIENOX?

    There are many reasons for choosing SIENOX, and the following are some of the main reasons:

    1. Professionalism: Our team consists of a group of professional individuals with rich experience and knowledge in their respective fields. We not only understand industry trends and best practices, but also provide practical and feasible solutions.

    2. Service quality: We focus on customer needs and satisfaction, and are always committed to providing high-quality services. We not only respond quickly to customer needs, but also provide customized services according to their requirements.

    3. Reliability: We adhere to the principles of integrity and professionalism, always adhering to commitments and agreements. Our work methods and deliverables comply with industry standards and best practices, enabling our clients to trust us.

    4. Innovation: We continuously explore new methods and tools to provide better services and meet customer needs. We encourage innovation and experimentation, and are willing to accept challenges and change.

    5. Cost effectiveness: We provide cost-effective services that not only help customers save costs, but also improve efficiency and productivity. We always prioritize the interests of our customers and provide them with the best solutions.

    6. Teamwork: We believe in the power and value of teamwork, and our team members support, collaborate, and respect each other. We establish close cooperative relationships with customers, partners, and other stakeholders to achieve common goals.

    The above are just some of the reasons for choosing us. We believe there are many other advantages and values that can be provided to customers. If you are looking for a professional, reliable, and high-quality service provider, we look forward to working with you.


  • How does the stirring and defoaming machine work?

    The SIENOX stirring and defoaming machine performs defoaming through centrifugal force at revolution and stirring through shear force formed by revolution and rotation,

    Assisted by a vacuum pump to extract gas and achieve a vacuum state, removing nanoscale tiny bubbles. No contact with materials, no secondary pollution, and no secondary waste.

  • What is the function of a defoaming machine?

    A defoaming machine is a device used to remove bubbles from liquids. Its function is to assist in the liquid mixing, reaction, coating, printing, infusion and other process steps in the production process, avoiding the generation of bubbles and their impact on the final product. In many industrial and laboratory environments, removing bubbles is essential as they may have a negative impact on product quality, such as affecting surface tension and stability. Defoaming machines typically use various techniques such as vibration, ultrasound, centrifugation, etc. to achieve effective bubble removal. It has a wide range of applications, including but not limited to semiconductors, solar energy, optics, biotechnology, materials science, etc.

多型号对比参数表

同系列型号参数对比,助力精准选型

设备型号SIE-RX4-600SIE-RX6-900SIE-RX8-1200
工作室尺寸φ400×600mmφ600×900mmφ800×1200mm
有效容积75L255L600L
压力范围0~2.5MPa(可选)0~2.5MPa(可选)0~2.5MPa(可选)
温度范围常温~180℃(可选)常温~180℃(可选)常温~180℃(可选)
压力精度±0.01MPa±0.01MPa±0.01MPa
温控精度±1.0℃±1.0℃±1.0℃
电源220V, 50/60Hz(可定制110V美日标准)220V, 50/60Hz(可定制110V美日标准)220V, 50/60Hz(可定制110V美日标准)
外形尺寸(W×D×H)510 × 430 × 500 mm610 × 560 × 780 mm1100×1500×1800mm
净重95 kg153 kg1000kg

***以上仅为典型型号,我们可以根据客户需求提供个性化解决方案。

多行业解决方案

覆盖六大行业典型材料搅拌脱泡应用


TFT液晶基板贴合

中尺寸TFT基板OCA光学胶、液晶玻璃贴合胶


OCA光学胶贴合

OCA光学胶、光学透明胶膜


新能源材料

电池浆料、导电银胶


印刷电子材料

导电油墨、印刷电子浆料


导电银胶

导电银胶、银纳米线胶


绝缘胶

绝缘胶、电子封装胶

全方位设备操作演示视频

直观、清晰、动态感受行星离心与高负压同步除泡的技术魅力

实测效果展示

六种典型材料实测处理效果


浆料+粉料


胶水


氢能材料


胶水


基材+填料


胶+陶瓷粉

实测效果对比

材料加压脱泡前后状态对比

材料类型处理前状态SIE-RX8-1200处理后
偏光片OCA光学胶胶内气泡多,贴合后透光不均出现发花胶体透明无气泡,贴合后透光均匀
元器件封装胶胶内气泡密集,固化后封装层出现空洞胶体致密无空洞,封装层完整可靠
医用粘接胶胶内有气泡,粘接面缺陷影响生物相容性胶体致密,粘接面完整,生物相容性达标

* 内部实验室测试数据,具体提升幅度因材料配方而异。真实客户案例可联系销售获取。

客户交付与应用案例

扎根制造一线,赋能各大行业标杆产线与国家重点研究机构



锡膏气泡一次搞定!SMT焊接脱泡实测方案



AB胶气泡全消除,3种配比实测方案



导热胶脱泡解决方案
