行星搅拌机(带搅拌桨)

TEL:18925129293

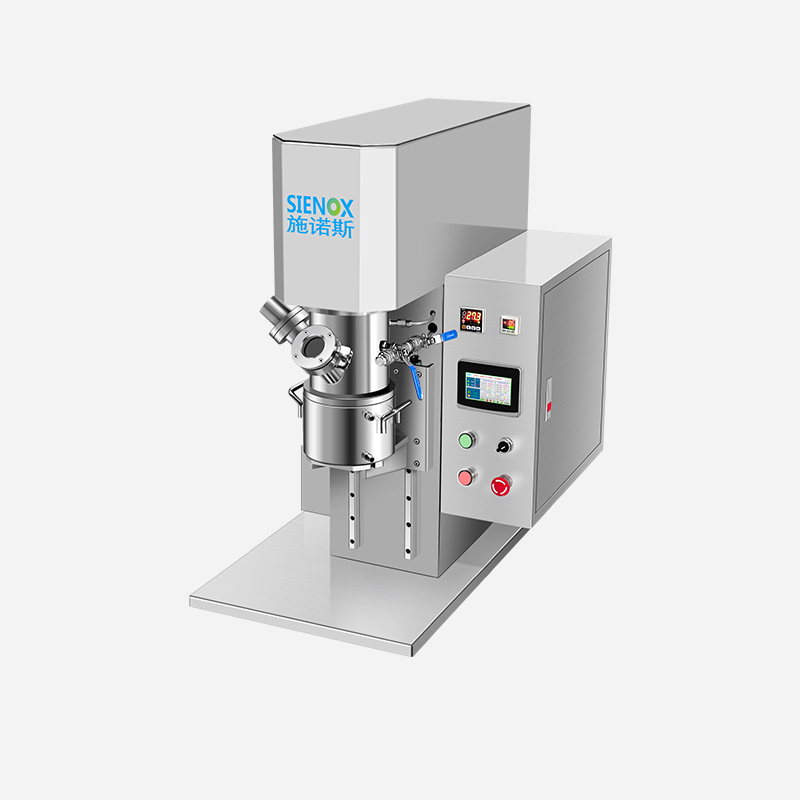

行星搅拌机 SIE-GX1L


双行星公转自转搅拌无死角 · 小试容量配方优化验证

双行星公转自转搅拌 + 0~5000rpm高速分散 + 真空脱泡精准控温

施诺斯SIE-GX1L行星搅拌机,有效容量1L,低速搅拌桨顺时针公转、逆时针自转,配合高速分散盘强烈剪切打散,确保中高粘度浆料无死角混合与精细分散。真空可调搅拌同时脱泡,增强型麻花框设计应对高粘度体系,悬臂式螺杆升降料桶快速换料清洗,适合小试实验室操作。

✓ ISO9001质量体系 ✓ RoHS符合性 ✓ 支持电压定制(110V/220V)

Online Message Free Sample Testing Engineer Hotline: 189-2512-9293

为什么需要行星搅拌

浆料混合分散不均会直接影响终端产品性能

油漆颜料行业

油漆颜料中颜料粉体与树脂基料分散不均,导致色差、遮盖力不足、光泽度波动。行星搅拌机通过公转自转复合运动使中高粘度色浆产生强烈捏合干涉,高速分散盘将颜料团聚体剪切打散至微米级,保障小试色浆的分散细度和颜色一致性,让配方优化数据可靠可复现。

生物医药行业

药膏制剂、生物凝胶等医药体系中活性成分与基质混合不均,导致含量偏差、释放速率不稳定。行星搅拌机低速搅拌桨的捏合干涉运动使高粘度药膏基质均匀混合,真空环境隔绝空气水分污染,测温传感器±0.5℃精度控温避免热敏成分失活,保障小批量试制品质量一致性。

导热材料行业

导热硅脂、导热凝胶中导热粉体与硅油分散不均,导致导热系数波动、涂布厚度不均。行星搅拌机高速分散盘将高填充量导热粉体均匀分散于硅油基体中,低间隙设计消除沉降死角,真空脱泡去除混合过程引入的气泡,保障导热材料小样的导热性能和涂布性达到设计要求。

✨ 传统搅拌的困境:传统搅拌的困境:普通搅拌机单轴旋转死角多,物料沿桶壁"爬坡"挂壁,高粘度浆料混合不均;单一搅拌方式无法同时实现混合与分散,团聚颗粒难以打散;敞开式搅拌引入气泡和杂质,污染浆料影响性能;温度控制不精准,浆料在搅拌中发热升温改变流变特性;无真空功能,浆料内部气泡无法去除。

为何选择SIE-GX1L

解决小试配方优化的核心痛点

小试容量工艺平滑放大

增强型麻花框配合刮壁搅拌桨,低间隙设计使物料产生强烈捏合干涉运动和上下左右循环运动,1L容量下仍保持无死角无"爬坡"搅拌效果。悬臂式螺杆升降料桶,换料清洗快速便捷,适合小试阶段多配方频繁换料。

高速分散精细打磨

高速分散轴搭载锯齿状分散盘,转速0~5000r/min变频调速,最高线速度可达15m/s。高速分散盘强烈剪切打散团聚颗粒,使物料得到精细分散。低速搅拌与高速分散协同工作,一步完成混合与分散,实验室小样浆料细度直接达标。

真空脱泡+精准控温一体

配置无油真空泵,搅拌同时脱除浆料内部气泡。测温传感器直接接触物料,测量误差仅±0.5℃,反应速度快。可加热或制冷,精准控制浆料温度,避免搅拌发热改变物料流变特性。真空密封整体设计,搅拌过程隔绝空气水分污染。

✨ 如果您的小试实验室需要一台容量适中、高分散、能同时搅拌脱泡的行星搅拌机,GX1L是理想选择

工作原理

低速搅拌桨和高速分散盘既自转又公转,同时实现混合与分散

第一步:低速搅拌桨公转自转
低速搅拌桨顺时针公转、逆时针自转,配合刮壁桨消除桶壁死角。低间隙设计使物料产生强烈捏合干涉运动和上下左右循环运动,高粘度浆料无"爬坡"现象,多组元物料开始均匀混合。

第二步:高速分散盘剪切打散
高速分散轴上的锯齿状分散盘高速旋转,线速度最高15m/s,将团聚颗粒强烈剪切打散。低速混合与高速分散同时进行,物料在捏合与剪切交替作用下得到充分分散和均匀掺和。

第三步:真空脱泡与控温
真空-0.098MPa可调,搅拌过程中持续脱除浆料内部气泡。测温传感器直接接触物料,±0.5℃精度实时监控浆料温度,可加热或制冷控温。到达设定时间后螺杆升降料桶下降,方便出料清洗。


简单三步:低速公转自转混合 → 高速剪切分散 → 真空脱泡控温出料,一步完成混合、分散与脱泡。


技术规格参数

完整技术参数一览,支持按需定制

设备型号SIE-GX1L
有效容量1L(总容积约2L)
转速范围0~5000r/min(可调)
桶体尺寸内径约160mm×内高约100mm
基本结构1.悬臂式结构螺杆升降料桶;2.单直接测料温模式;3.双搅拌轴+带刮壁+单分散轴
升降高度150mm
温控功能可加热或制冷
高速分散线速度最高15m/s
供电参数AC220V/50Hz
外形尺寸(W×D×H)850×680×1050mm
净重约200 kg
认证ISO9001, RoHS 符合性


Our Partners

Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide

Partner Showcase

FAQ - Frequently Asked Questions

Answers to common questions about product performance and everyday process selection

  • What is the working principle of a centrifugal defoaming machine?

    Principle of centrifugal defoaming machine: The bubbles are released by the downward principle of gravity.

  • How is the after-sales service?

    The company has professional after-sales service personnel, 24-hour dedicated service, and one-on-one technical support to solve your worries.

  • Why choose SIENOX?

    There are many reasons for choosing SIENOX, and the following are some of the main reasons:

    1. Professionalism: Our team consists of a group of professional individuals with rich experience and knowledge in their respective fields. We not only understand industry trends and best practices, but also provide practical and feasible solutions.

    2. Service quality: We focus on customer needs and satisfaction, and are always committed to providing high-quality services. We not only respond quickly to customer needs, but also provide customized services according to their requirements.

    3. Reliability: We adhere to the principles of integrity and professionalism, always adhering to commitments and agreements. Our work methods and deliverables comply with industry standards and best practices, enabling our clients to trust us.

    4. Innovation: We continuously explore new methods and tools to provide better services and meet customer needs. We encourage innovation and experimentation, and are willing to accept challenges and change.

    5. Cost effectiveness: We provide cost-effective services that not only help customers save costs, but also improve efficiency and productivity. We always prioritize the interests of our customers and provide them with the best solutions.

    6. Teamwork: We believe in the power and value of teamwork, and our team members support, collaborate, and respect each other. We establish close cooperative relationships with customers, partners, and other stakeholders to achieve common goals.

    The above are just some of the reasons for choosing us. We believe there are many other advantages and values that can be provided to customers. If you are looking for a professional, reliable, and high-quality service provider, we look forward to working with you.


  • How does the stirring and defoaming machine work?

    The SIENOX stirring and defoaming machine performs defoaming through centrifugal force at revolution and stirring through shear force formed by revolution and rotation,

    Assisted by a vacuum pump to extract gas and achieve a vacuum state, removing nanoscale tiny bubbles. No contact with materials, no secondary pollution, and no secondary waste.

  • What is the function of a defoaming machine?

    A defoaming machine is a device used to remove bubbles from liquids. Its function is to assist in the liquid mixing, reaction, coating, printing, infusion and other process steps in the production process, avoiding the generation of bubbles and their impact on the final product. In many industrial and laboratory environments, removing bubbles is essential as they may have a negative impact on product quality, such as affecting surface tension and stability. Defoaming machines typically use various techniques such as vibration, ultrasound, centrifugation, etc. to achieve effective bubble removal. It has a wide range of applications, including but not limited to semiconductors, solar energy, optics, biotechnology, materials science, etc.

技术指标一览表

全线参数规范,助您精准评估工艺选型

设备型号SIE-GX500SIE-GX1LSIE-GX5L
有效容量0.5L1L5L
转速范围0~5000r/min(可调)0~5000r/min(可调)0~3500r/min(可调)
桶体尺寸内径130mm×内高85mm内径130mm×内高85mm内径130mm×内高85mm
基本结构1.悬臂式结构螺杆升降料桶;2.单直接测料温模式;3.双搅拌轴+带刮壁+单分散轴1.悬臂式结构螺杆升降料桶;2.单直接测料温模式;3.双搅拌轴+带刮壁+单分散轴1.悬臂式结构螺杆升降料桶;2.单直接测料温模式;3.双搅拌轴+带刮壁+单分散轴
升降高度150mm150mm200mm
温控功能可加热或制冷可加热或制冷可加热或制冷
高速分散线速度最高15m/s最高15m/s最高15m/s
供电参数AC220V/50HzAC220V/50HzAC380V/50Hz
外形尺寸(W×D×H)800×650×980mm850×680×1050mm1200×1100×1800mm
净重160 kg200 kg500 kg

多行业解决方案

典型浆料搅拌分散应用


电池浆料

正极浆料(NCM/LFP)、负极浆料(石墨)、隔膜涂层浆料、固态电解质浆料


油漆颜料

工业涂料、汽车漆、水性颜料色浆、UV涂料


生物医药

药膏制剂、生物凝胶、医用胶粘剂、药用混悬液


胶粘剂

环氧树脂胶、聚氨酯胶、硅酮密封胶、热熔胶


陶瓷浆料

氧化铝浆料、氧化锆浆料、陶瓷釉料、电子陶瓷浆料


化妆品膏体

面霜乳液、牙膏、防晒霜、染发膏

全方位设备操作演示视频

直观、清晰、动态感受行星离心与高负压同步除泡的技术魅力

实测效果展示

实验室材料实测处理效果


AB胶水


胶水+粉料


玻璃粉


电子胶+粉料


环氧树脂


电池浆料粉料

实测效果对比

材料脱泡前后效果对比

材料类型处理前状态GX1L处理后
电池正极浆料(NCM)活性物质与导电剂分布不均,有肉眼可见结块,粘度忽高忽低,涂布后面密度波动大各组元均匀分散无结块,粘度均一稳定,涂布面密度一致,电池内阻降低循环寿命提升
导电银浆银粉聚集沉淀,与有机载体分层,颗粒度不达标,印刷易断线银粉均匀悬浮于载体中,细度达标无聚集,印刷连续无断线,烧结后方阻一致
环氧树脂胶A/B组分混合不均,颜色深浅不一,内部包裹气泡,固化后强度不稳定颜色均匀透明,组分充分混合,真空脱泡后无明显气泡,固化后强度稳定一致

* 内部实验室测试数据,具体提升幅度因材料配方而异。真实客户案例可联系销售获取。
