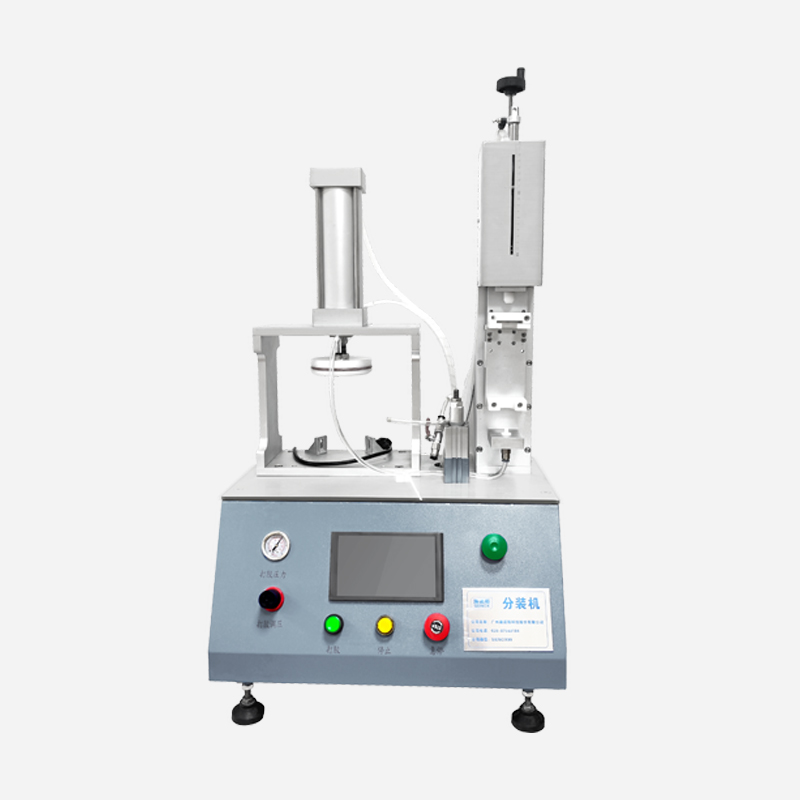

SIENOX Multi‑functional Quantitative Filling Machine SIE‑402
Industrial PC Digitally‑controlled Sensor‑triggered Automatic Filling · Direct Connection to Original Raw‑material Containers to Avoid Transfer Spillage
Sensor‑triggered Automatic Filling + Precise Dosing via Digital Input + Direct Connection to Original Containers
SIENOX SIE‑402 Multi‑functional Quantitative Filling Machine adopts industrial PC digital control and sensor‑triggered automatic filling with precise 10‑500 mL dosing. Original raw‑material containers can be directly connected for both high efficiency and accuracy, suitable for medium‑batch fluid filling applications.
✓ CE Certification ✓ FC Certification ✓ ISO9001 Quality System ✓ RoHS Compliance ✓ Custom Voltage Available (110V/220V)
Why Do You Need a Quantitative Filling Machine
Sensor‑triggered Automatic Filling Replaces Manual Operation
Adhesive IndustryAdhesives, curing agents and similar products are generally packed in glue tubes with high requirements for filling accuracy and sealing performance. Manual adhesive filling brings inconsistent glue volume and weak bonding performance. Adhesives may pre‑cure when exposed to air during material transfer, resulting in material waste. Manual dosing adjustment requires multiple trial fills for calibration, leading to long downtime for specification change‑over. | Ink & Printing IndustryInks are filled into ink cans by color code with frequent color change‑overs, demanding easy cleaning and high filling accuracy. Manual filling causes uneven volume and unstable printing color. Incomplete cleaning during color switching leads to color cross‑contamination. Repeated trial fills for manual dosing waste ink and production time. | Food Liquid IndustryFood liquids such as lactic acid and glycerol require strict hygiene standards. Human contact during filling creates potential sanitary risks. Manual filling may produce non‑compliant package volume. Direct operator contact with food materials raises cross‑contamination hazards. |
✨ Traditional filling challenges: Manual filling cannot keep up with order pace and limits production capacity. Repeated trial‑and‑error for manual dosing adjustment causes long downtime for specification change‑over. Spillage and contamination are inevitable when transferring materials from large drums to filling containers. Inconsistent filling accuracy leads to high customer complaint rates.
Why Choose SIE‑402
Solve Core Pain Points for Medium‑Batch Fluid Filling
Precise Dosing with Digital InputAdopting industrial PC control, it supports direct digital input of filling volume, eliminating repeated trial filling caused by manual adjustment. Specification switching only requires numerical modification, which can be completed in seconds with minimal downtime. Featuring stable digital control accuracy, the filling precision reaches approximately ±1-2%, ensuring highly consistent filling volume for every bottle. | Sensor-triggered Automatic FillingThe machine starts automatically when the container is in place and stops once filling is finished, requiring no manual intervention throughout the process. Operators only need to place and take away containers, enabling one person to manage multiple devices. With a filling speed of 35-40 bottles per minute, it delivers far higher efficiency than manual operation and foot-pedal filling equipment. | Direct Connection to Original Containers Without Material TransferIt can be directly connected to original material containers for filling, omitting the material transfer process and reducing material waste and cross-contamination risks. Material replacement only needs changing the connected original container without cleaning the large hopper, achieving faster material switching. |
✨ If you mainly fill medium‑batch fluids (10‑500 mL) and require high filling accuracy & automation, SIE‑402 is your ideal choice.
Product Features
Foot‑pedal Mechanical Controlled Dosing Mechanically controlled quantitative filling, start filling immediately upon foot‑pedal trigger. The filling volume is preset via mechanical adjustment to ensure consistent output per pedal stroke. Simple and intuitive operation, no special training required. 300L Large‑capacity Hopper 300L large‑capacity hopper enables long‑time continuous filling after one feeding. Compatible with direct feeding from large drums to reduce frequent feeding interruptions. Hopper design facilitates feeding and remaining‑volume observation. Cylinder‑driven Fluid Filling Cylinder‑driven transfer for fast filling of low‑viscosity fluids. Stable and reliable delivery with filling speed of 25‑30 bottles per minute, far more efficient than manual work. Easy‑to‑clean Structure Filling pipelines are easy to clean for quick material change‑over. Only rinse pipelines and filling nozzles when switching materials to cut downtime and prevent cross‑contamination. Ergonomic Operation Design Ergonomic structure for natural posture during long‑hour production. Foot‑pedal operation frees hands, allowing operators to place containers and take finished products simultaneously. Stand‑alone Operation Without Air Source Plug‑and‑play, no external air supply required. Flexible deployment for small‑to‑medium factories and laboratories with limited site conditions. |  |
Quick View of Technical Specifications
Complete Technical Specifications Overview, Customizable on Demand
| Model | SIE‑402 |
| Filling Volume | 10‑500ML |
| Control Mode | Industrial PC |
| Filling Mode | Sensor‑triggered |
| Dosing Adjustment | Digital Input |
| Applicable Materials | Fluid |
| Automatic Feeding | Optional |
| Material Container | 300L Hopper |
| Transfer Mode | Cylinder |
| Environmental Requirement | No Air Source Required |
| Overall Dimension(W×D×H) | 500×835×1000mm |
| Certifications | CE, FC, ISO9001, RoHS Compliance |
Our Partners
Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide
FAQ - Frequently Asked Questions
Answers to common questions about product performance and everyday process selection
-
脱泡机的作用是什么？
脱泡机是一种用于去除液体中的气泡的设备。它的作用在于帮助生产过程中的液体混合、反应、涂布、印刷、灌注等工艺环节，避免气泡的产生和对最终产品的影响。在许多工业和实验室环境中，去除气泡是非常必要的，因为气泡可能会对产品质量产生负面影响，如影响表面张力和稳定性等问题。脱泡机通常采用各种不同的技术，如振动、超声波、离心等，以实现有效的气泡去除。它的应用领域广泛，包括但不限于半导体、太阳能、光学、生物技术、材料科学等。
-
售后服务怎么样？
公司拥有专业的售后服务人员，24小时专人服务，一对一提供技术支持，解决您的后顾之忧。
-
为什么要选择施诺斯？
选择施诺斯的原因有很多，以下是一些主要的原因：
1. 专业性：我们的团队由一群专业的人士组成，他们在各自的领域拥有丰富的经验和知识。我们不仅了解行业趋势和最佳实践，而且还能提供切实可行的解决方案。
2. 服务质量：我们注重客户的需求和满意度，始终致力于提供高质量的服务。我们不仅快速响应客户需求，而且还能根据客户的要求进行定制化服务。
3. 可靠性：我们以诚信和专业精神为宗旨，始终遵守承诺和协议。我们的工作方法和交付成果均符合行业标准和最佳实践，使得我们的客户能够信任我们。
4. 创新性：我们不断探索新的方法和工具，以提供更好的服务并满足客户的需求。我们鼓励创新和实验，并愿意接受挑战和改变。
5. 成本效益：我们提供高性价比的服务，不仅能够帮助客户节省成本，而且还能提高效率和生产力。我们始终以客户的利益为出发点，为客户提供最优的解决方案。
6. 团队合作：我们相信团队的力量和合作的价值，我们的团队成员之间互相支持、协作和尊重。我们与客户、合作伙伴和其他利益相关者建立紧密的合作关系，以实现共同的目标。
以上只是选择我们的部分原因，我们相信还有很多其他的优点和价值可以为客户提供。如果您正在寻找一家专业、可靠、高质量的服务提供商，我们非常期待与您的合作。
-
搅拌脱泡机的工作原理？
施诺斯搅拌脱泡机通过公转的离心力进行脱泡，通过公转与自转形成的剪切力进行搅拌，
再辅助以真空泵抽取气体以达到真空状态，去除纳米级微小气泡。 不接触物料，无二次污染，无二次浪费。
-
施诺斯能提供工程咨询技术服务吗？
施诺斯能为广大客户提供全面的工程和现代化的咨询服务。施诺斯近二十年的搅拌经验，可以为你提供高效的咨询服务。
想要让搅拌机性能更上一层楼，提升系统的整体效能？我们有全面的咨询、工程以及现代化改造服务，为您量身打造解决方案。 在如今竞争激烈的全球化浪潮中，唯有不断创新、持续优化，才能始终跑在对手前面。您的生产工艺和产品日新月异，我们就为您提供最适配的混合技术。不管是新的产品参数，还是既有的工艺条件，我们都能对现有系统和搅拌设备进行全方位的检查与评估，挖掘其中潜藏的流程优化空间和机械性能提升潜力，并且帮您把这些改进切实落地。 要是您的搅拌设备已经跟不上时代步伐，能耗居高不下，或是维护成本让您头疼不已，那就别犹豫，我们的咨询、工程设计和现代化改造服务，就是为您排忧解难的良方。欢迎随时联系我们，携手开启高效生产新征程！
Technical Specification List
Full‑line standardized specifications for accurate process evaluation and equipment selection
| Model | SIE‑401 | SIE‑402 | SIE‑405 |
| Filling Volume | 10‑300ML | 10‑500ML | 0.5‑10L |
| Control Mode | Mechanical Control | Industrial PC | Industrial PC |
| Filling Mode | Foot‑pedal | Sensor‑triggered | Sensor‑triggered |
| Dosing Adjustment | Manual Adjustment | Digital Input | Digital Input |
| Applicable Materials | Fluid | Fluid | Fluid / Semi‑fluid / Paste |
| Automatic Feeding | Not Available | Optional | Optional |
| Material Container | 300L Hopper | 300L Hopper | 300L Hopper |
| Transfer Mode | Cylinder | Cylinder | Cylinder |
| Environmental Requirement | No Air Source Required | No Air Source Required | No Air Source Required |
| Overall Dimension(W×D×H) | 500×835×1000mm | 500×835×1000mm | 500×835×1000mm |
| Certifications | CE, FC, ISO9001, RoHS Compliance | CE, FC, ISO9001, RoHS Compliance | CE, FC, ISO9001, RoHS Compliance |
Multi‑Industry Solutions
Customized solutions are available upon customer requirements.
Adhesive R&DEpoxy structural adhesives, sealants, hot‑melt adhesives, pressure‑sensitive adhesives, modified adhesives |
Precision Electronic AssemblyUnderfill adhesives, conductive adhesives, die attach adhesives, dispensing adhesives, chip bonding adhesives |
BiosensorsEncapsulation adhesives, reagent immobilization materials, microfluidic bonding adhesives, biocompatible adhesives, sensor sealants |
Microelectronic PackagingPackaging epoxy adhesives, molding compounds, lead bonding adhesives, substrate bonding adhesives, passivation layer materials |
Functional CoatingsHydrophobic coatings, conductive coatings, insulating coatings, anti‑corrosion coatings, wear‑resistant coatings |
Electronic PastesSilver paste, copper paste, carbon paste, resistor paste, dielectric paste |
Comprehensive Equipment Operation Demo Videos
Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.
Measured Defoaming‑Process Performance
Measured Processing Results for Six Typical Materials
Paste‑form Materials |
Adhesive With Powder |
Polymer Materials |
Pharmaceutical Gels |
Silver Paste Materials |
Battery Slurries |
Equipment Supporting Instructions
Filling machines, dedicated for filling & packaging processes, are often used together with the following SIENOX equipment.
| Supporting Equipment | Supporting Function |
| Mixing‑Defoaming Machine | Mix and defoam materials before filling to ensure uniform bubble‑free materials |
| Vacuum Defoaming Machine | Vacuum degassing for high‑viscosity materials prior to filling to improve finished‑product quality |
| Three‑roll Mill | Grind and disperse slurries before filling for consistent particle size |
| Dispensing Machine | Fine dispensing process after filling, delivering complete filling‑dispensing solutions |
