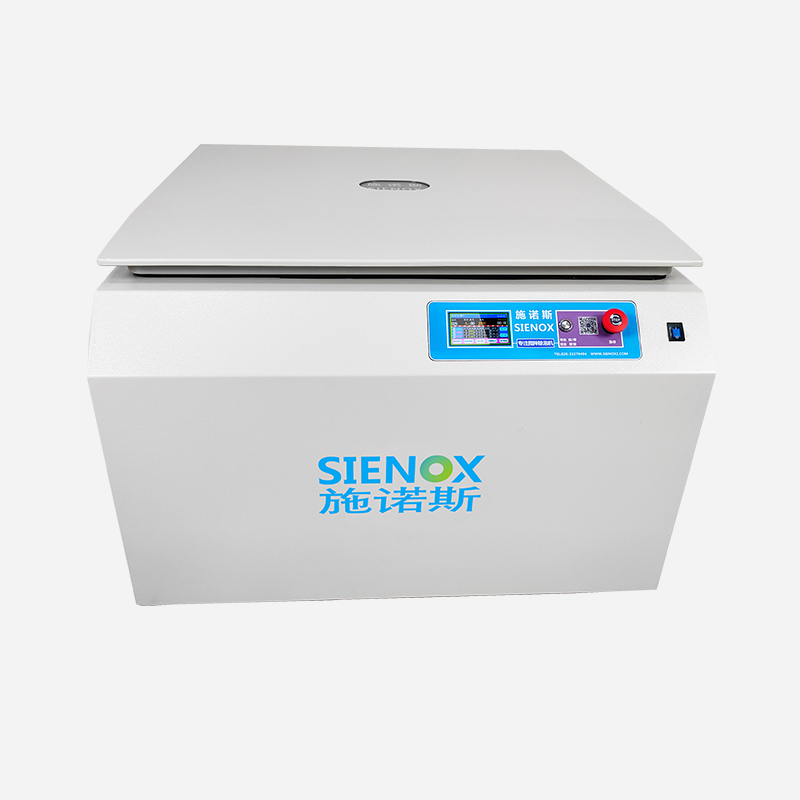

施诺斯离心脱泡机 SIE-VH2600


2600CC超大容量低速重载 · 工业级量产脱泡平台

2600CC×4支标配 + 0-1500rpm无级可调 + 非接触式离心脱泡

单杯2600CC超大容量,0-1500rpm低速重载设计,面向工业产线连续量产脱泡。非接触式离心分离不改变材料化学性质,适配新能源、胶粘剂、汽车电子等行业大批量处理。

✓ 专利设计 ✓ FCC认证 ✓ ISO9001质量体系 ✓ 304不锈钢箱体 ✓ 20年源头厂家

Online Message Free Sample Testing Engineer Hotline: 189-2512-9293

为什么要消除气泡?

单材料中残留的微气泡影响终端产品品质和检测准确性

元器件封装行业

底部填充胶中残留气泡导致芯片封装空洞、应力集中和可靠性下降。离心脱泡仅通过离心力非接触式分离气泡,不引入杂质,适合大容量单杯封装胶脱泡。

汽车电子行业

线束密封胶中气泡导致密封不良、耐候性下降和线束防护失效。离心脱泡非接触式处理不引入杂质,标准化批量配置保障批次间一致性。

新能源行业

光伏导电银浆中气泡影响栅线印刷质量、接触电阻和光电转换效率。离心脱泡非接触式处理不改变浆料化学性质,适合光伏辅材加工脱泡。

✨ 传统脱泡困境:大容量胶料分批脱泡工序繁琐,换料频繁导致效率低下。接触式搅拌桨可能引入污染并改变材料化学性质。

为何选择为何选择SIE-VH2600

三大核心覆盖大容量单杯脱泡需求

单杯2600CC减少分批

单杯2600CC容量,单次处理量是VH960的2.7倍。大批量胶料无需分批脱泡,减少换料次数和工序等待。

低速防飞溅设计

0-1500rpm低速区间专为2600CC大容量设计,高速旋转时液面稳定不飞溅。安全锁止装置和惯性延时双重保障,大质量负载下运行平稳。

产线集成就绪

工业级机架(估算值,实际以实物为准)适配产线固定工位,支持长时间连续作业。MES联网系统可选配,实现脱泡工序数据上传和产线集成。

✨ 工业产线连续量产、大容量单次脱泡、产线集成的重载型量产平台。

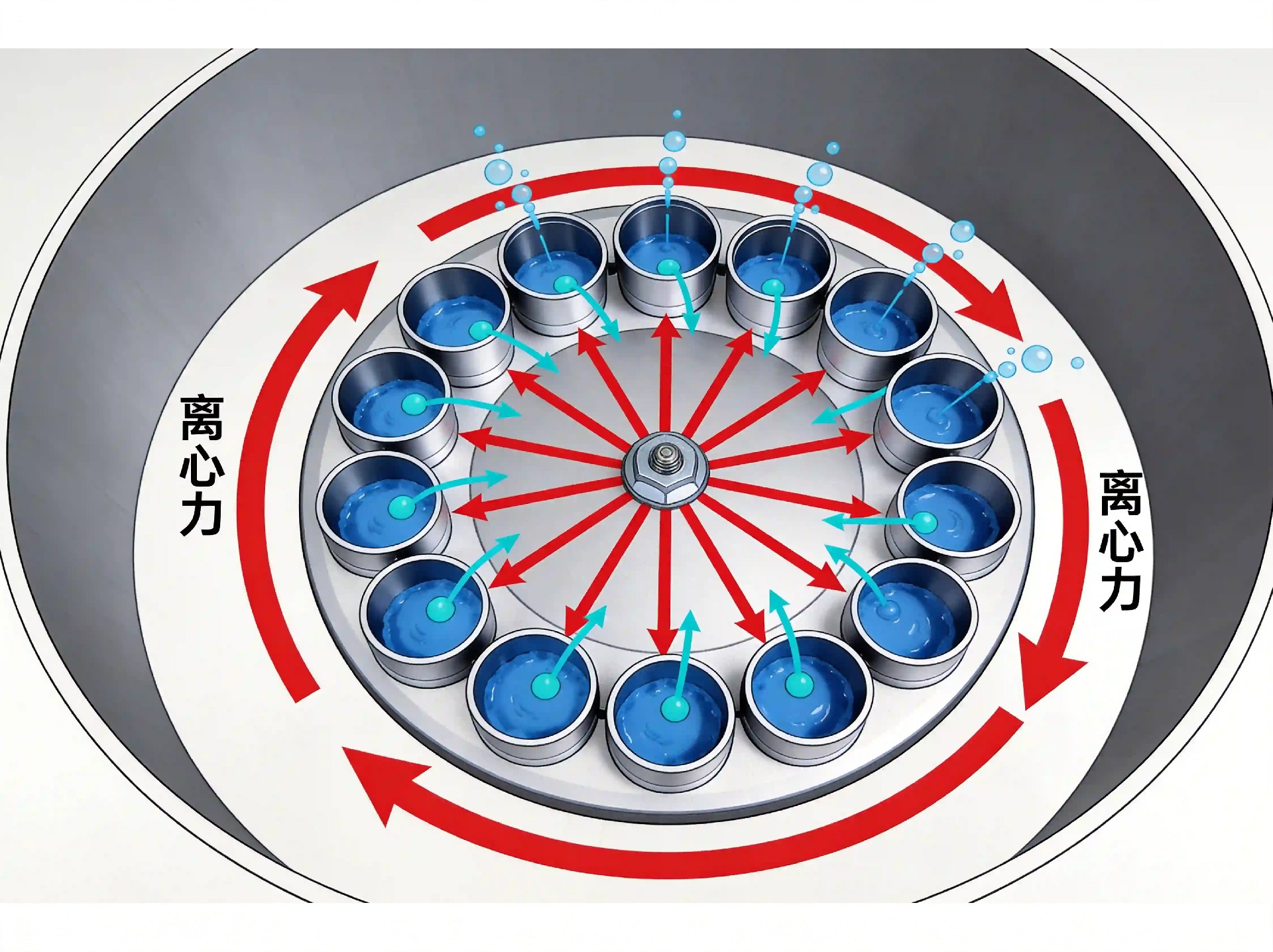

工作原理

低速重载旋转产生离心力与重力协同作用,大容量物料在密封容器内非接触式完成离心脱泡,不改变材料化学性质

第一步:高速离心分离:高速旋转产生强大离心力,密度差驱动气泡与材料分离,较重材料向外侧分布,气泡因密度较小向内侧聚集。

第二步:重力辅助逸出:重力向下作用配合离心力,气泡沿轴向迁移至液面逸出,实现高效脱泡。

第三步:非接触式保纯:物料在密封容器内旋转,无搅拌桨直接接触,不改变材料化学性质。


物料在密封容器内经"高速离心→重力逸出→非接触保纯"全流程,一步完成离心脱泡。




技术规格参数

完整技术参数一览,支持按需定制

设备型号SIE-VH2600
混合容量30 / 55 / 75 / … / 2600 cc(可定制)
标配配置2600CC×4支
容器数量4支(用户自选)
最高转速0 – 1500 RPM(无级可调)
技术原理离心力脱泡
容器类型试管 / 罐 / 杯;支持注射器、卡式瓶适配器
控制系统触控屏,可存储100组配方参数
电源220V, 50/60Hz(可定制110V美日标准)
外形尺寸(W×D×H)980 × 735 × 490 mm
净重约235 kg
认证 FCC, ISO9001, RoHS 符合性

Our Partners

Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide

Partner Showcase

FAQ - Frequently Asked Questions

Answers to common questions about product performance and everyday process selection

  • What is the working principle of a centrifugal defoaming machine?

    Principle of centrifugal defoaming machine: The bubbles are released by the downward principle of gravity.

  • How is the after-sales service?

    The company has professional after-sales service personnel, 24-hour dedicated service, and one-on-one technical support to solve your worries.

  • Why choose SIENOX?

    There are many reasons for choosing SIENOX, and the following are some of the main reasons:

    1. Professionalism: Our team consists of a group of professional individuals with rich experience and knowledge in their respective fields. We not only understand industry trends and best practices, but also provide practical and feasible solutions.

    2. Service quality: We focus on customer needs and satisfaction, and are always committed to providing high-quality services. We not only respond quickly to customer needs, but also provide customized services according to their requirements.

    3. Reliability: We adhere to the principles of integrity and professionalism, always adhering to commitments and agreements. Our work methods and deliverables comply with industry standards and best practices, enabling our clients to trust us.

    4. Innovation: We continuously explore new methods and tools to provide better services and meet customer needs. We encourage innovation and experimentation, and are willing to accept challenges and change.

    5. Cost effectiveness: We provide cost-effective services that not only help customers save costs, but also improve efficiency and productivity. We always prioritize the interests of our customers and provide them with the best solutions.

    6. Teamwork: We believe in the power and value of teamwork, and our team members support, collaborate, and respect each other. We establish close cooperative relationships with customers, partners, and other stakeholders to achieve common goals.

    The above are just some of the reasons for choosing us. We believe there are many other advantages and values that can be provided to customers. If you are looking for a professional, reliable, and high-quality service provider, we look forward to working with you.


  • How does the stirring and defoaming machine work?

    The SIENOX stirring and defoaming machine performs defoaming through centrifugal force at revolution and stirring through shear force formed by revolution and rotation,

    Assisted by a vacuum pump to extract gas and achieve a vacuum state, removing nanoscale tiny bubbles. No contact with materials, no secondary pollution, and no secondary waste.

  • What is the function of a defoaming machine?

    A defoaming machine is a device used to remove bubbles from liquids. Its function is to assist in the liquid mixing, reaction, coating, printing, infusion and other process steps in the production process, avoiding the generation of bubbles and their impact on the final product. In many industrial and laboratory environments, removing bubbles is essential as they may have a negative impact on product quality, such as affecting surface tension and stability. Defoaming machines typically use various techniques such as vibration, ultrasound, centrifugation, etc. to achieve effective bubble removal. It has a wide range of applications, including but not limited to semiconductors, solar energy, optics, biotechnology, materials science, etc.

技术指标一览表

完整技术参数一览,支持按需定制

设备型号SIE-VH960SIE-VH960-48SIE-VH2600
混合容量30 / 55 / 75 / … / 960 cc(可定制)30 / 55 / 75 / … / 960 cc(可定制)30 / 55 / 75 / … / 2600 cc(可定制)
标配配置960mL×4支55CC×48支2600CC×4支
最大容器数量32支48支4支
最高转速0 – 2000 RPM(无级可调)0 – 2000 RPM(无级可调)0 – 1500 RPM(无级可调)
技术原理离心力脱泡离心力脱泡离心力脱泡
容器类型管/罐/杯管/罐/杯管/罐/杯
控制系统触控屏,可存储100组配方参数触控屏,可存储100组配方参数触控屏,可存储100组配方参数
电源220V, 50/60Hz(可定制110V美日标准)220V, 50/60Hz(可定制110V美日标准)220V, 50/60Hz(可定制110V美日标准)
外形尺寸(W×D×H)980 × 735 × 490 mm980 × 735 × 490 mm980 × 735 × 490 mm
净重235 kg235 kg235 kg

***以上仅为典型型号,我们可以根据客户需求提供个性化解决方案。


多行业解决方案

覆盖六大行业典型材料离心脱泡应用


胶粘剂

聚氨酯密封胶、单组份有机硅、丙烯酸胶、模具硅胶


新材料研发领域

纳米分散液、陶瓷浆料、试剂凝胶、实验室调配树脂


医疗耗材行业

医用有机硅胶、牙科树脂、生物凝胶、诊断试剂膏体


光电显示

光学透明胶、触控银浆、边框密封硅胶、背光填充膏体


新能源行业

电芯导热凝胶、电池模组密封胶、光伏边框硅胶、光伏导电银浆


汽车电子行业

车载PCB灌封胶、车灯封装硅胶、线束密封胶、车载导热膏

全方位设备操作演示视频

直观、清晰、动态感受行星离心与高负压同步除泡的技术魅力

实测效果展示

实验室材料实测处理效果


凝胶


环氧树脂


胶水材料


灌封胶


银浆材料


胶水


实测效果对比

材料离心脱泡前后效果对比

材料类型
处理前状态
VH2600处理后
底部填充胶
胶体内气泡密集,封装空洞率约6%,可靠性差
气泡消除,封装空洞率小于1%,可靠性提升
模具硅胶
硅胶内气泡多,硫化气孔率约7%,翻模精度差
气泡消除,硫化气孔率小于2%,翻模精度稳定
光伏导电银浆
浆料内气泡多,栅线断线率约5%,电阻波动
气泡消除,栅线断线率小于1%,电阻稳定

* 内部实验室测试数据,具体提升幅度因材料配方而异。真实客户案例可联系销售获取。
