真空脱泡搅拌机(可调速比)

TEL:18925129293

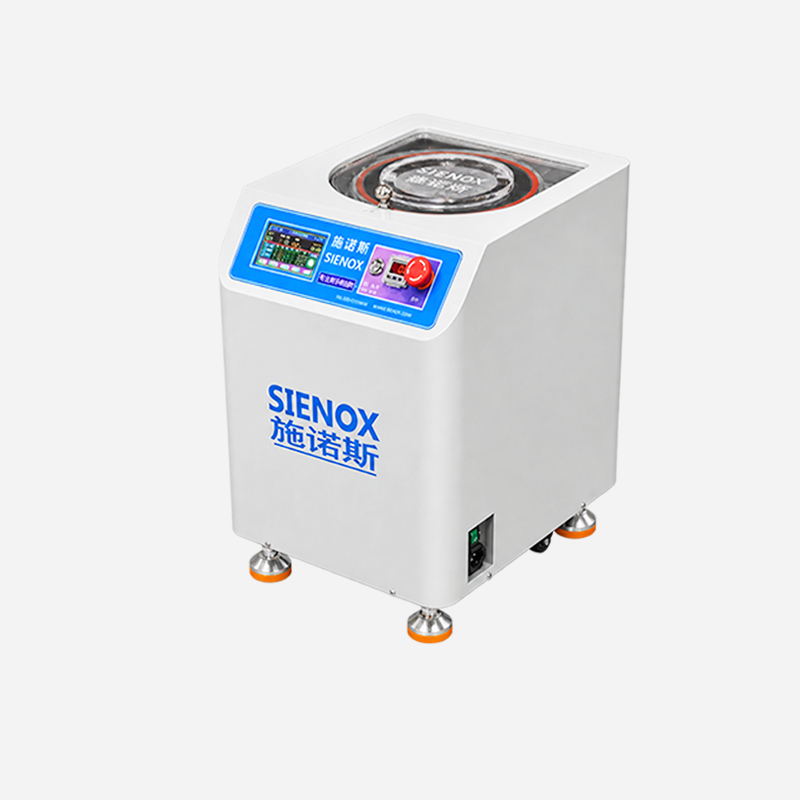

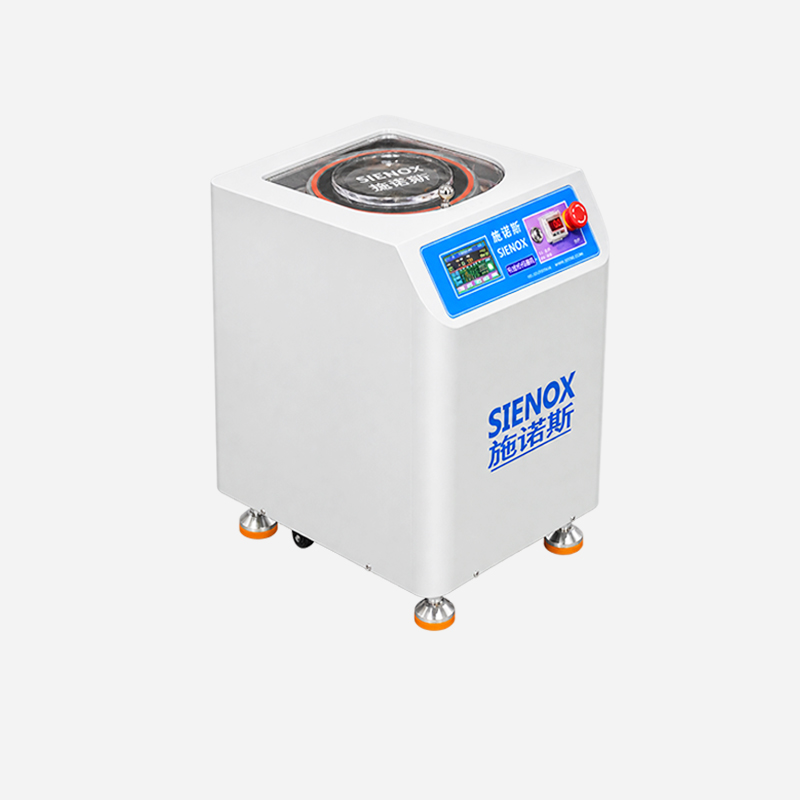

SIENOX行星式搅拌脱泡机 SIE-MIXF301


公转自转速比自由可调 · 一台设备适配多种材料工艺

300mL研发容量 + 速比自由可调 + 100组配方存储

施诺斯SIE-MIXF301是一款公转自转速比可调的行星式搅拌脱泡机,专为需要灵活调节搅拌参数的研发和中试场景打造。在MIX60的基础上增加速比可调功能,科研人员可根据不同材料特性自由调节公转与自转的比例,找到适配的搅拌强度和分散效果。

✓ CE认证 ✓ ISO9001质量体系 ✓ RoHS符合性 ✓ 支持电压定制(110V/220V)

Online Message Free Sample Testing Engineer Hotline: 189-2512-9293

为什么必须消除材料中的微气泡?

材料中残留的微气泡直接影响产品性能与工艺验证准确性

汽车电子行业

汽车ECU和传感器封装用环氧灌封胶中的气泡会导致局部放电和绝缘性能下降,在车辆长期振动环境下引发器件失效。车规级要求灌封层致密无空洞,微气泡会直接导致可靠性测试不达标。

智能穿戴行业

智能手表和TWS耳机的点胶工艺中,胶粘剂气泡会导致粘接强度不足,在跌落测试中发生脱落。微型化封装对胶层均匀性要求极高,肉眼不可见的微气泡也会影响产品良率。

复合材料行业

树脂基复合材料成型中,混合气泡会在固化后形成内部孔隙,降低层间剪切强度和抗冲击性能。预浸料树脂体系中的气泡还会影响纤维浸润质量,导致复合材料力学性能不达标。

✨ 传统方式的困境: 手工搅拌或普通搅拌桨会主动卷入空气,越搅拌气泡越多;静置脱泡耗时长且效果有限。固定速比设备对不同材料效果参差不齐,无法针对性优化。可调比行星搅拌脱泡方案通过自由调节速比,针对不同材料找到适配的混合脱泡参数。

为何选择SIE-MIXF301

三大核心优势专为研发中试工艺优化打造

速比可调

MIXF301的核心优势在于公转自转速比自由可调。不同材料的粘度、颗粒大小、密度差异较大,固定速比难以兼顾所有材料的混合脱泡效果。速比可调后,科研人员可针对每种材料调试出适配的公转自转比例,找到混合效率与脱泡效果之间的平衡点,实现工艺参数优化。


工艺验证

300mL容量适配研发中试阶段的制样需求,既能满足工艺参数验证用量,又不会造成大量材料浪费。100组配方存储功能可将调试好的速比参数一键保存,不同材料对应不同工艺参数,方便后续调用复现。从研发摸索到中试验证,一台设备覆盖全流程。


灵活适配

一台MIXF301可替代多台固定速比设备,通过调节速比适配胶粘剂、浆料、树脂等多种材料类型。双杯设计支持同步处理两组样品,适合对比实验。非接触搅拌减少物料污染风险,切换材料只需更换容器,免清洗,适合研发环境高频次多材料切换需求。


✨ MIXF301集速比可调、工艺验证、灵活适配三大核心能力于一体,是研发中试阶段进行材料工艺参数优化和验证的理想设备。

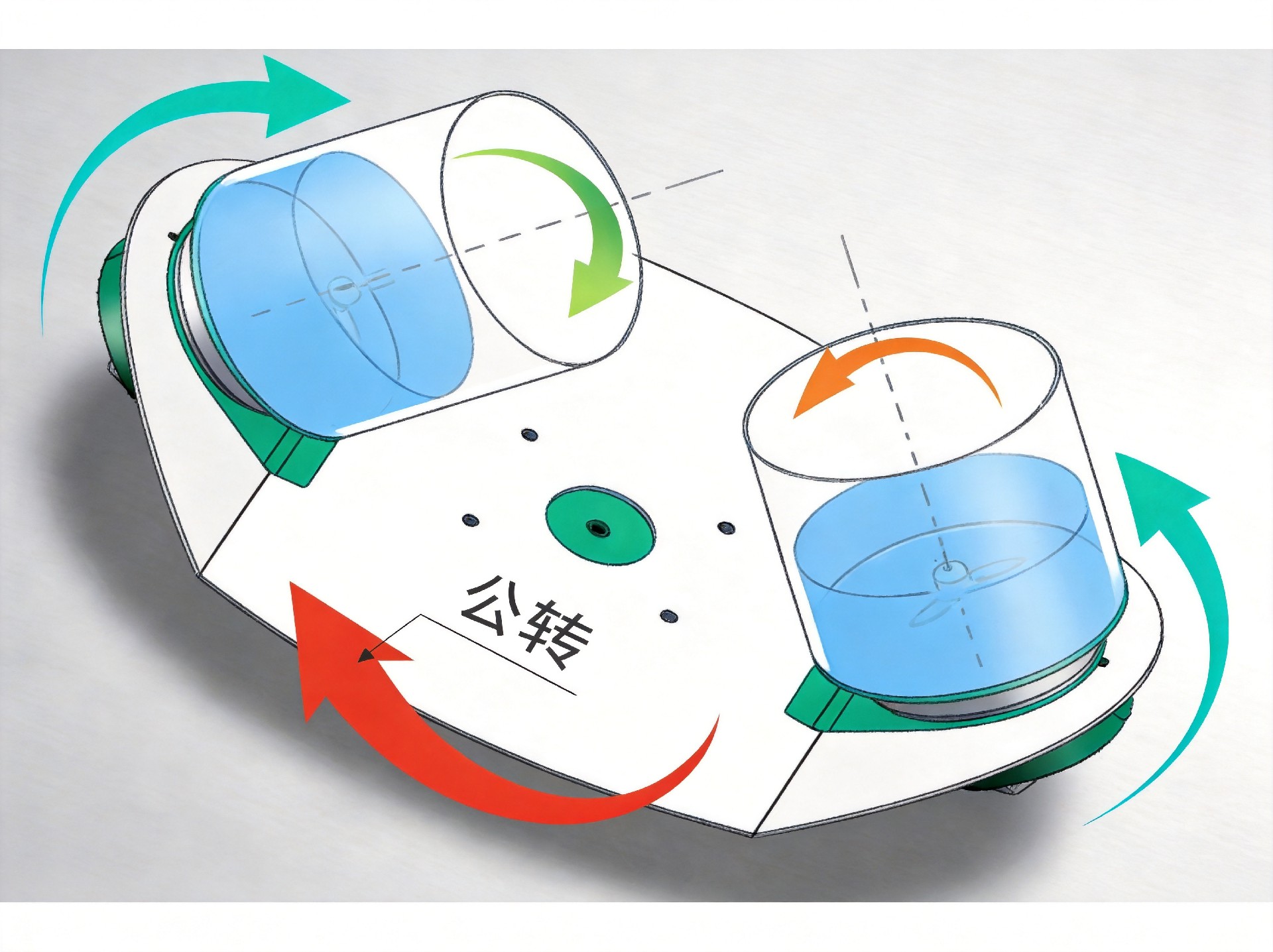

工作原理

公转与自转双动力同步运行,速比可调针对不同材料灵活优化

第一步:公转产生离心力

公转盘高速旋转,带动容器内物料产生强大离心力,驱动物料全域对流,实现宏观混合。同时离心力将密度较小的气泡向旋转轴心方向推移,促使气泡汇聚逸出。

第二步:自转提供剪切力

容器围绕自身轴心自转,产生定向剪切力,打散团聚颗粒,实现微观分散。剪切力同时薄化气泡壁膜,加速气泡破裂。

第三步:速比调节优化效果

公转与自转的速比可根据材料特性自由调节。增大公转比例增强离心脱泡效果,适合高粘度材料;增大自转比例增强剪切分散效果,适合易团聚材料。通过调速比找到适配参数,实现混合与脱泡效果的平衡。


公转与自转同步运行,物料在密闭容器内完成"混合→分散→脱泡"全流程。速比可调让一台设备适配多种材料工艺,无需多台设备投入。


技术规格速览

完整技术参数一览,支持按需定制

设备型号SIE-MIXF301
混合容量0–300 mL(标配容器)* 可定制更大容积
容器类型试管 / 罐 / 杯;支持注射器、卡式瓶适配器
容器数量1 或 2 罐(用户自选)
最高转速0 – 3000 RPM(无级可调)
公转/自转比自由可调
真空度标配:–98 kPa / 选配:–100 kPa
控制系统触控屏,可存储100组配方参数
电源220V, 50/60Hz(可定制110V美日标准)
外形尺寸(W×D×H)510 × 430 × 500 mm
净重约115 kg
认证 CE, ISO9001, RoHS 符合性

Our Partners

Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide

Partner Showcase

FAQ - Frequently Asked Questions

Answers to common questions about product performance and everyday process selection

  • What is the working principle of a centrifugal defoaming machine?

    Principle of centrifugal defoaming machine: The bubbles are released by the downward principle of gravity.

  • How is the after-sales service?

    The company has professional after-sales service personnel, 24-hour dedicated service, and one-on-one technical support to solve your worries.

  • Why choose SIENOX?

    There are many reasons for choosing SIENOX, and the following are some of the main reasons:

    1. Professionalism: Our team consists of a group of professional individuals with rich experience and knowledge in their respective fields. We not only understand industry trends and best practices, but also provide practical and feasible solutions.

    2. Service quality: We focus on customer needs and satisfaction, and are always committed to providing high-quality services. We not only respond quickly to customer needs, but also provide customized services according to their requirements.

    3. Reliability: We adhere to the principles of integrity and professionalism, always adhering to commitments and agreements. Our work methods and deliverables comply with industry standards and best practices, enabling our clients to trust us.

    4. Innovation: We continuously explore new methods and tools to provide better services and meet customer needs. We encourage innovation and experimentation, and are willing to accept challenges and change.

    5. Cost effectiveness: We provide cost-effective services that not only help customers save costs, but also improve efficiency and productivity. We always prioritize the interests of our customers and provide them with the best solutions.

    6. Teamwork: We believe in the power and value of teamwork, and our team members support, collaborate, and respect each other. We establish close cooperative relationships with customers, partners, and other stakeholders to achieve common goals.

    The above are just some of the reasons for choosing us. We believe there are many other advantages and values that can be provided to customers. If you are looking for a professional, reliable, and high-quality service provider, we look forward to working with you.


  • How does the stirring and defoaming machine work?

    The SIENOX stirring and defoaming machine performs defoaming through centrifugal force at revolution and stirring through shear force formed by revolution and rotation,

    Assisted by a vacuum pump to extract gas and achieve a vacuum state, removing nanoscale tiny bubbles. No contact with materials, no secondary pollution, and no secondary waste.

  • What is the function of a defoaming machine?

    A defoaming machine is a device used to remove bubbles from liquids. Its function is to assist in the liquid mixing, reaction, coating, printing, infusion and other process steps in the production process, avoiding the generation of bubbles and their impact on the final product. In many industrial and laboratory environments, removing bubbles is essential as they may have a negative impact on product quality, such as affecting surface tension and stability. Defoaming machines typically use various techniques such as vibration, ultrasound, centrifugation, etc. to achieve effective bubble removal. It has a wide range of applications, including but not limited to semiconductors, solar energy, optics, biotechnology, materials science, etc.

技术指标一览表

同系列型号参数对比,助力精准选型

设备型号SIE-MIX60SIE-MIXF301SIE-MIX90
混合容量0–300 mL(标配容器)* 可定制0–300 mL(标配容器)* 可定制0–1000 mL(标配容器)* 可定制
容器类型试管 / 罐 / 杯;支持注射器、卡式瓶适配器试管 / 罐 / 杯;支持注射器、卡式瓶适配器试管 / 罐 / 杯;支持注射器、卡式瓶适配器
容器数量1  或 2 罐(用户自选)1  或 2 罐(用户自选)1  或 2 罐(用户自选)
最高转速0 – 3000 RPM(无级可调)0 – 2000 RPM(无级可调)0 – 2000 RPM(无级可调)
公转/自转比固定行星比例自由可调固定行星比例
真空度标配:–98 kPa / 选配:–100 kPa标配:–98 kPa / 选配:–100 kPa标配:–98 kPa / 选配:–100 kPa
控制系统触控屏,可存储100组配方参数触控屏,可存储100组配方参数触控屏,可存储100组配方参数
电源220V, 50/60Hz(可定制110V美日标准)220V, 50/60Hz(可定制110V美日标准)220V, 50/60Hz(可定制110V美日标准)
外形尺寸(W×D×H)510 × 430 × 500 mm510 × 430 × 500 mm610 × 560 × 780 mm
净重95 kg115kg153 kg

***以上仅为典型型号,施诺斯可根据客户需求提供个性化定制方案。咨询选型:189-2512-9293


多行业解决方案

覆盖六大行业典型材料搅拌脱泡应用


汽车电子

环氧灌封胶、导热凝胶、密封胶、车规级胶粘剂、传感器封装胶


智能穿戴

点胶胶粘剂、封装胶、UV胶、导电胶、微型器件粘接胶


复合材料

环氧树脂体系、预浸料树脂、结构胶、纤维浸润胶、夹层胶


精密光学

光学胶、镜头粘接胶、折射率匹配胶、光学硅胶、UV固化胶


新型建材

密封胶、防水涂料、结构胶、灌浆材料、功能涂层


纺织涂层

涂层胶、整理剂、防水剂、阻燃涂层、功能性涂层浆料

全方位设备操作演示视频

直观、清晰、动态感受行星离心与高负压同步除泡的技术魅力

脱泡工艺实测效果

六种典型材料实测处理效果


膏状材料

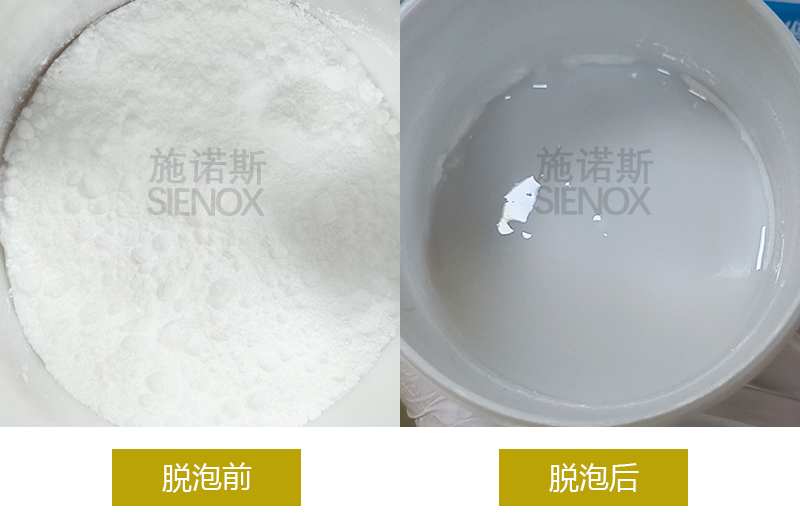

胶水+粉体


高分子材料


医药凝胶

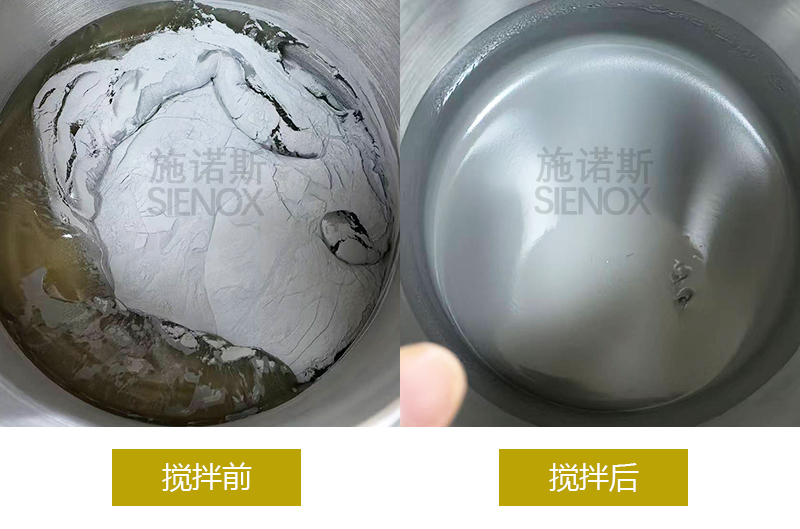

银浆材料


电池浆料



实测数据对比

材料脱泡前后效果对比

材料类型
处理前状态
MIXF301处理后
导热凝胶
凝胶内有密集微气泡,分布不均匀,导热性能不稳定
凝胶均匀细腻无气泡,导热率达标,热分布均匀一致
环氧灌封胶
胶体内有大量气泡,流动性差,固化后内部空洞明显
浆料均匀流畅,无气泡残留,涂布表面平整光滑,涂层厚度一致
铜浆
铜粉团聚沉淀明显,浆料表面有气泡,导电性不稳定
铜粉均匀分散,浆料光滑无气泡,导电性能稳定

* 内部实验室测试数据,具体提升幅度因材料配方而异。真实客户案例可联系销售获取。
