大容量真空脱泡搅拌机 SIE-MIX2000
无桨叶非接触式混合 · 适配小批量中试深层微泡处理
支持 0-50L容量定制+中大型产线物料均质脱泡设备
SIE-MIX2000行星式真空脱泡搅拌机满足0-2000mL混合脱泡需求,公转自转双动力搅拌搭配-98kPa真空负压环境,让多材料混合密度一致、分散均匀、深层脱泡,适合新能源锂电池、光伏导电银浆、医疗高分子凝胶等材料小批量中试真空脱泡需求,支持定制。
✓ CE认证 ✓ ISO9001质量体系 ✓ RoHS符合性 ✓ 支持电压定制(110V/220V)
为什么必须消除材料中的微气泡?
材料中残留的纳米级微气泡直接影响产品良率与性能稳定性
高分子复合材料行业环氧树脂、有机硅等高分子原料内部微小气泡,固化成型后会形成空腔、细微裂纹,降低制品拉伸强度与密封性;气泡会让成品透光、外观均匀度下降,注塑 / 浇注成品不良品占比上升,提升原料损耗成本。 | 化妆品膏料行业彩妆、护肤膏体内部气泡会造成涂抹不均、色块斑驳;灌装时气泡压缩会出现灌装量偏差,影响产品计量合规;膏体内部空腔易加速原料氧化,缩短成品货架存储周期。 | 陶瓷导电浆料行业陶瓷浆料裹挟气泡,烧结后坯体出现针孔、气孔缺陷,导电、绝缘性能出现波动;气泡会造成浆料涂布厚薄不一致,元器件电阻参数离散,不利于批量产品参数统一管控。 |
✨ 传统脱泡困境:普通行星搅拌脱泡机依靠离心力去除气泡,对高粘度材料中的纳米级微气泡去除效果有限;静置脱泡耗时长且不彻底。真空搅拌脱泡在行星搅拌的同时施加-98kPa真空负压,降低气泡内外压差促使微气泡膨胀逸出,实现普通搅拌无法达到的深层脱泡效果。
为何选择 MIX2000
专为小批量生产真空脱泡场景打造
容量可按需定制标准 2L 双工位基础机型,整机支持 0-30L 区间容量调整,可匹配单桶大容量物料、多批次连续量产工况;适配大规格搅拌桶、定制工装夹具,兼顾小批量中试与规模化产线需求,适配多粘度膏体、液态原料 | 公转自转协同双动力驱动行星结构,公转产生离心力摊开物料,容器自转形成 360° 流体剪切,减少粉体团聚、胶体分层;转速区间适配胶水、银浆、陶瓷料等各类物料,搅拌覆盖范围更广,降低局部混合不均情况。 | 工业智能管控搭载大尺寸触控操作屏,可存储多组分段运行程序;可选配 MES 工业数据对接,完整记录转速、真空、温控、时长全流程数据;配备声光预警、多重安全锁、过载断电防护,适配工厂标准化连续生产。 |
✨ 当需要真空脱泡且产量需求达到2000mL级别时,MIX2000是行星式真空脱泡搅拌机系列中小批量中试级别的选择。

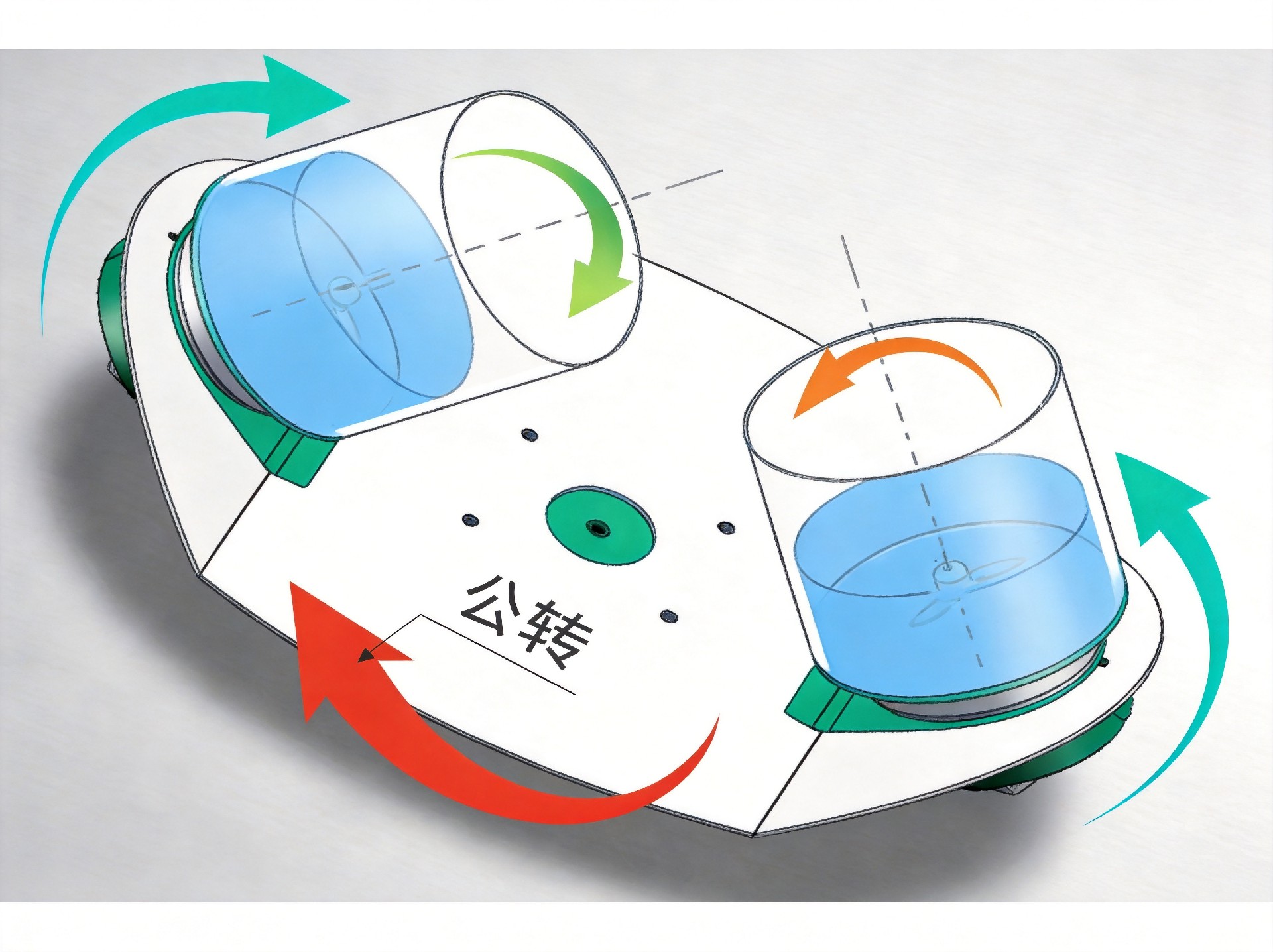

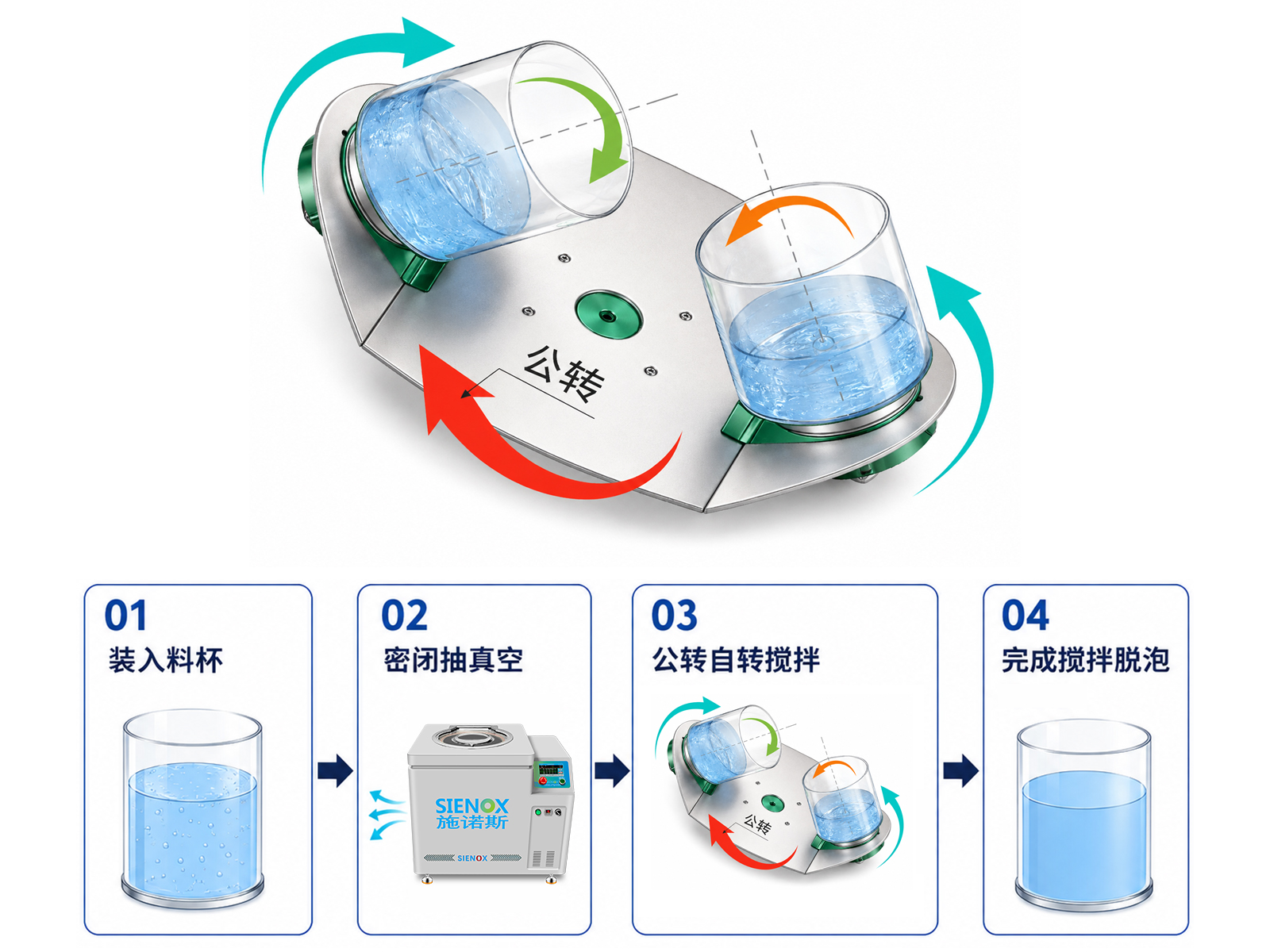

工作原理
采用行星公转 + 容器自转 + 密闭高真空协同工艺
行星公转:承载物料杯大盘围绕主轴高速公转,产生离心力,推动物料向容器外壁均匀铺展,打散粉体团聚、改善胶体分层问题; 容器自转:物料杯同步反向自转,物料在容器内部形成 360° 流体湍流,实现全域均质混合;无内置搅拌桨接触物料,降低金属碎屑污染物料的概率; 密闭真空脱泡:密封腔体抽取负压至 - 98kPa,物料内外压力差值扩大,微米、纳米级微小气泡逐步膨胀、上浮并排出腔体,单段工序同步完成搅拌、脱泡,物料混合均匀度、气泡处理效果优于常规开放式搅拌设备。 | ![]() |
技术规格参数
硬核设备性能指标数据对齐
| 设备型号 | SIE-MIX2000 |
| 混合容量 | 0–2000 mL(标配容器)* 可定制 |
| 容器类型 | 试管 / 罐 / 杯;支持注射器、卡式瓶适配器 |
| 容器数量 | 1 或 2 罐(用户自选) |
| 最高转速 | 100 – 2000 RPM(无级可调) |
| 公转/自转比 | 固定行星比例 |
| 真空度 | 标配:–98 kPa / 选配:–100 kPa |
| 控制系统 | 触控屏,可存储100组配方参数 |
| 电源 | 220V, 50/60Hz(可定制110V美日标准) |
| 外形尺寸(W×D×H) | 1100 × 780 × 880 mm |
| 净重 | 225kg |
| 认证 | CE, ISO9001, RoHS 符合性 |
Our Partners
Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide
FAQ - Frequently Asked Questions
Answers to common questions about product performance and everyday process selection
-
What is the working principle of a centrifugal defoaming machine?
Principle of centrifugal defoaming machine: The bubbles are released by the downward principle of gravity.
-
How is the after-sales service?
The company has professional after-sales service personnel, 24-hour dedicated service, and one-on-one technical support to solve your worries.
-
Why choose SIENOX?
There are many reasons for choosing SIENOX, and the following are some of the main reasons:
1. Professionalism: Our team consists of a group of professional individuals with rich experience and knowledge in their respective fields. We not only understand industry trends and best practices, but also provide practical and feasible solutions.
2. Service quality: We focus on customer needs and satisfaction, and are always committed to providing high-quality services. We not only respond quickly to customer needs, but also provide customized services according to their requirements.
3. Reliability: We adhere to the principles of integrity and professionalism, always adhering to commitments and agreements. Our work methods and deliverables comply with industry standards and best practices, enabling our clients to trust us.
4. Innovation: We continuously explore new methods and tools to provide better services and meet customer needs. We encourage innovation and experimentation, and are willing to accept challenges and change.
5. Cost effectiveness: We provide cost-effective services that not only help customers save costs, but also improve efficiency and productivity. We always prioritize the interests of our customers and provide them with the best solutions.
6. Teamwork: We believe in the power and value of teamwork, and our team members support, collaborate, and respect each other. We establish close cooperative relationships with customers, partners, and other stakeholders to achieve common goals.
The above are just some of the reasons for choosing us. We believe there are many other advantages and values that can be provided to customers. If you are looking for a professional, reliable, and high-quality service provider, we look forward to working with you.
-
How does the stirring and defoaming machine work?
The SIENOX stirring and defoaming machine performs defoaming through centrifugal force at revolution and stirring through shear force formed by revolution and rotation,
Assisted by a vacuum pump to extract gas and achieve a vacuum state, removing nanoscale tiny bubbles. No contact with materials, no secondary pollution, and no secondary waste.
-
What is the function of a defoaming machine?
A defoaming machine is a device used to remove bubbles from liquids. Its function is to assist in the liquid mixing, reaction, coating, printing, infusion and other process steps in the production process, avoiding the generation of bubbles and their impact on the final product. In many industrial and laboratory environments, removing bubbles is essential as they may have a negative impact on product quality, such as affecting surface tension and stability. Defoaming machines typically use various techniques such as vibration, ultrasound, centrifugation, etc. to achieve effective bubble removal. It has a wide range of applications, including but not limited to semiconductors, solar energy, optics, biotechnology, materials science, etc.
技术指标一览表
全线参数规范,助您精准评估工艺选型
| 设备型号 | SIE-MIX2000 | SIE-MIX5000 | SIE-MIX15L |
| 混合容量 | 0–2000 mL(标配容器)* 可定制 | 0–5000 mL(标配容器)* 可定制 | 0–15L(标配容器)* 可定制 |
| 容器类型 | 试管 / 罐 / 杯;支持注射器、卡式瓶适配器 | 试管 / 罐 / 杯;支持注射器、卡式瓶适配器 | 试管 / 罐 / 杯;支持注射器、卡式瓶适配器 |
| 容器数量 | 1 或 2 罐(用户自选) | 1 或 2 罐(用户自选) | 1 或 2 罐(用户自选) |
| 最高转速 | 0 – 2000 RPM(无级可调) | 0 – 1200 RPM(无级可调) | 100 – 600 RPM(无级可调) |
| 公转/自转比 | 自由可调 | 固定行星比例 | 固定行星比例 |
| 真空度 | 标配:–98 kPa / 选配:–100 kPa | 标配:–98 kPa / 选配:–100 kPa | 标配:–98 kPa / 选配:–100 kPa |
| 控制系统 | 触控屏,可存储100组配方参数 | 触控屏,可存储100组配方参数 | 触控屏,可存储100组配方参数 |
| 电源 | 220V, 50/60Hz(可定制110V美日标准) | 220V, 50/60Hz(可定制110V美日标准) | 220V, 50/60Hz(可定制110V美日标准) |
| 外形尺寸(W×D×H) | 1100 × 780 × 880 mm | 1370 ×1130 × 965mm | 1735 × 1560 × 965 mm |
| 净重 | 225kg | 550kg | 830 kg |
***以上仅为典型型号,我们可以根据客户需求提供个性化解决方案。
多行业解决方案
提供定制解决方案,满足从前沿研发到规模量产的全面需求
化工行业化工浆料、树脂中间体、催化剂浆料、反应型胶粘剂、功能涂层液 |
粘合剂/密封剂行业结构胶粘剂、工业密封胶、热熔胶、环氧结构胶、聚氨酯胶粘剂 |
油墨/涂料行业工业涂料、导电油墨、色浆、防腐涂层、UV固化涂料 |
电子行业电子封装胶、导电银胶、绝缘胶、LED荧光粉、半导体封装料 |
电池行业锂电池正负极浆料、导电剂、电解液辅助原料、燃料电池催化剂浆料 |
有机硅行业硅橡胶混炼胶、有机硅树脂、硅油、有机硅导热胶、有机硅涂层 |
全方位设备操作演示视频
直观、清晰、动态感受行星离心与高负压同步除泡的技术魅力
脱泡工艺实测效果
彻底告别物料气泡空洞与分层
针筒胶水 |
光刻胶 |
生物凝胶 |
化妆品精华 |
润滑油 |
油墨 |
实测数据对比
数据见证 · 效果可量化
| 材料类型 | 处理前状态 | MIX2000处理后 |
| 环氧树脂浆料 | 混合不均,内部气泡密集,浇注固化后气孔多,力学强度偏低 | 树脂透亮无气泡,浇注件致密无空洞,固化后表面平整光滑 |
| 硅橡胶混炼胶 | 气泡多,硫化后表面气孔密集,弹性不均匀,拉伸强度波动 | 气泡消除,硫化后表面光滑致密,弹性均匀一致 |
| 工业防腐涂料 | 气泡多,涂膜表面针孔密布,附着力不均,防腐周期缩短 | 涂膜致密平整,针孔消除,附着力均匀,防腐周期延长 |
* 内部实验室测试数据,具体提升幅度因材料配方而异。真实客户案例可联系销售获取。
客户交付与应用案例
扎根制造一线,赋能各大行业标杆产线与国家重点研究机构
粉体与流体搅拌脱泡解决方案 | AB结构胶搅拌脱泡解决方案 | 高粘度胶体与荧光粉材料搅拌脱泡解决方案 |
